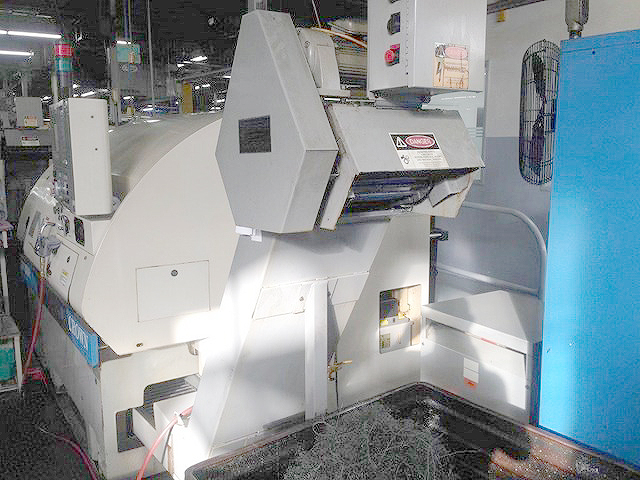

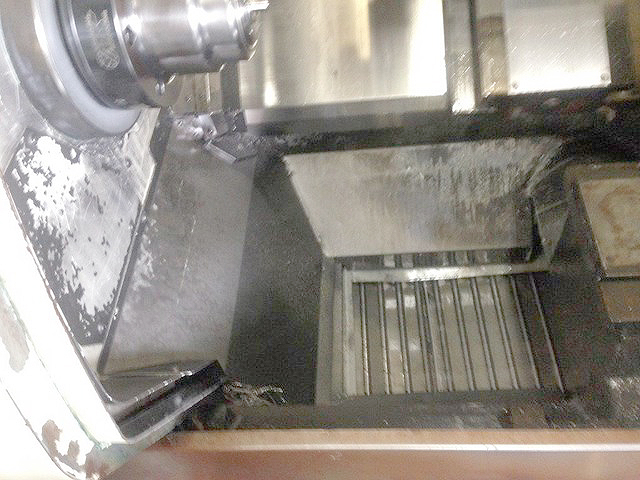

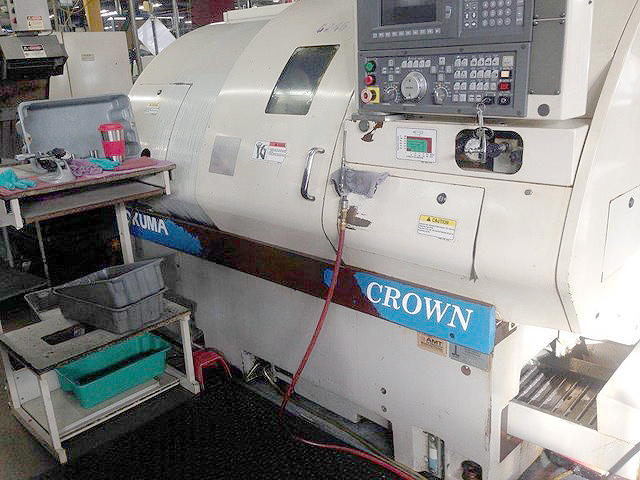

OKUMA CROWN BIG BORE CNC TURNING CENTER
                Model CROWN,  New 1998, Stock# K14307



EQUIPPED WITH:



Okuma OSP700L CNC Control w/CRT, Power Collet Chuck, Big Bore
Option, Linear and Circular Interpolation, Bed Mounted
Programmable Tailstock, Spindle Load Meter, Auto Backlash
Compensation, Auto Lube, Work Light, Tooling, Coolant
System, and Chip Conveyor.



CATALOGUE SPECIFICATIONS:
Max Swing Over Bed...................................... 21.65"
Maximum Swing over Cross-Slide.......................... 15.75"
Maximum Turning Diameter................................ 10.63"
Maximum Turning Length.................................. 19.68"
Standard Chuck Size (not Equipped).................. 10"
Cross Travel (X-Axis)................................... 6.89"
Longitudinal Travel (Z-Axis)............................ 20.47"
Feed Range (Infinitely Variable)........................ .1-400 IPM
Rapid Traverse Rate (X-Axis)............................ 590 IPM
Rapid Traverse Rate (Y-Axis)............................ 787 IPM
Number of Turrets....................................... 1
Tool Positions.......................................... 12 Total
Spindle Bore............................................ 3.15"
Spindle Nose............................................ A2-8
Spindle Speed Range (1 RPM Increments).................. 65-3500 RPM
Spindle Horsepower...................................... 22 HP
Electrics............................................... 220/3/60
Approximate Machine Dimensions.......................... 104" x 73"
Approximate Machine Height.............................. 69"
Approximate Machine Weight.............................. 9,700 LBS



CONDITION:  Appears to be in Very Good Condition !!
