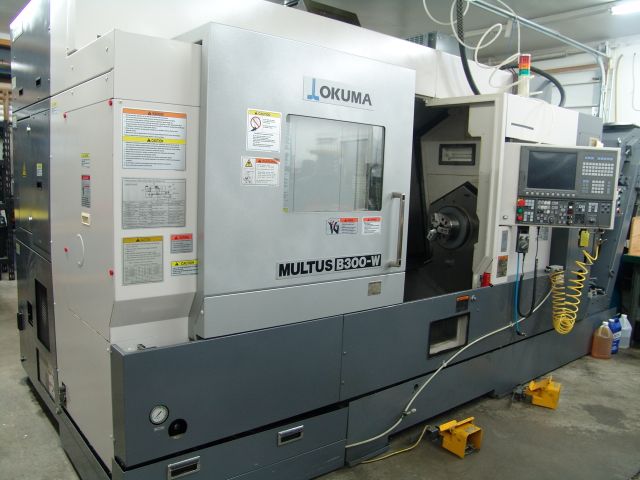

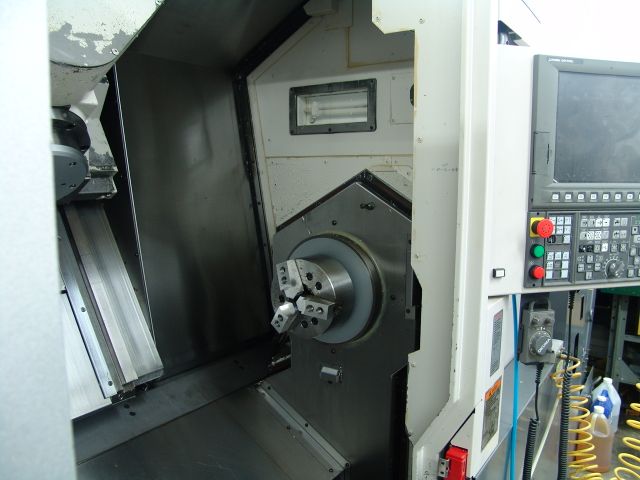

OKUMA MULTUS B300W Big Bore CNC TURNING CENTER
with Universal Head, Live Tooling, I-Axis and
Sub-Spindle
Model Molts B300W, New 2009, SO/NO P143170,Stock#
K14308
Equipped With:

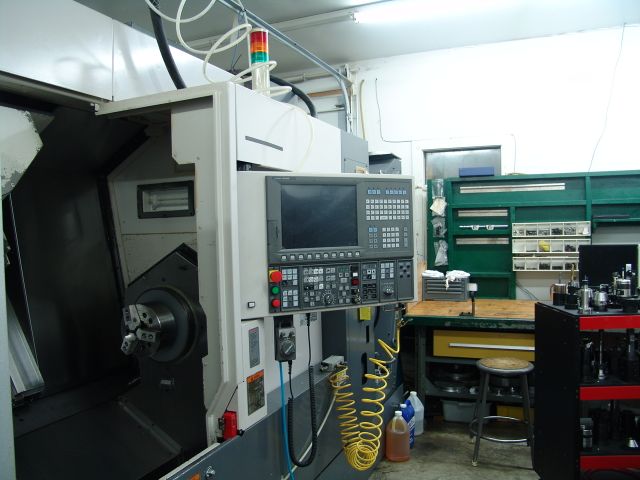

OKUMA SOP P200L CNC Control, 0.1 Micron Control, Admac,
API Software, Big Bore Option A2-8 nose (38-3800 RPM,
30/20HP), 10" 3-Jaw Kitagawa Chuck Package On Main, 8"
3-Jaw Kitagawa Chuck Package on Sub-Spindle, 40 Station
Automatic Tool Changer, CAPTO C6 Spindle Taper, 10,000
RPM Milling Spindle, Parts Catcher for Sub-Spindle, Toll
Setter, Bar-feed Interface,Y-Axis Gauging, C-Axis
Synchronize Function, Lathe Tool Index, Super Nurbs and
Hi-G Control, B-Axis, Plane Conversion, Profile
Generation, Tool Retract Function,NC Torque Machining,

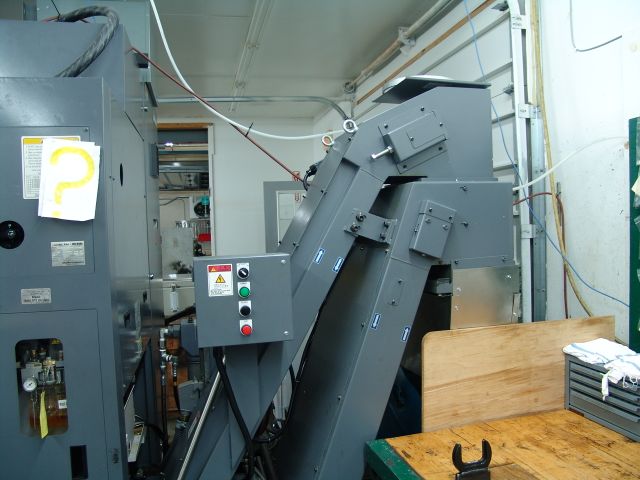

Concept 2000 Chip Conveyor, High Pressure 1000 psi
Coolant System.
Specifications:
CATALOGUE SPECIFICATIONS:
Max Swing Over
Saddle....................................... 24.80"
Max Machining
Diameter...................................... 17.72"
Max Working Distance Between
Spindles....................... 35.43"
Cross Travel
(X-Axis)....................................... 22.83"
Longitudinal Travel
(Z-Axis)................................ 37.80"
Y-Axis Travel
.............................................. 6.299"

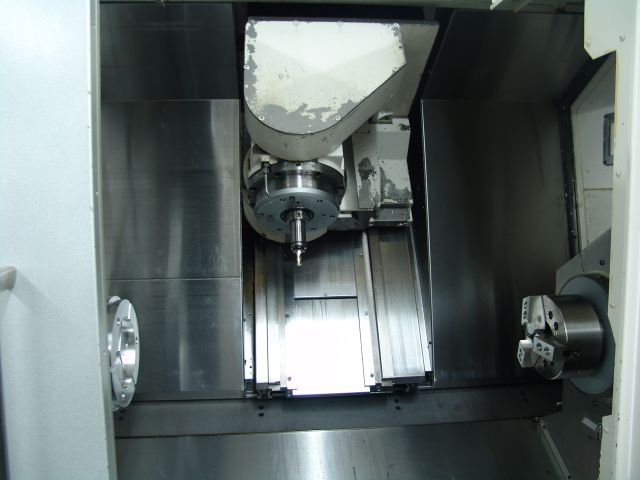

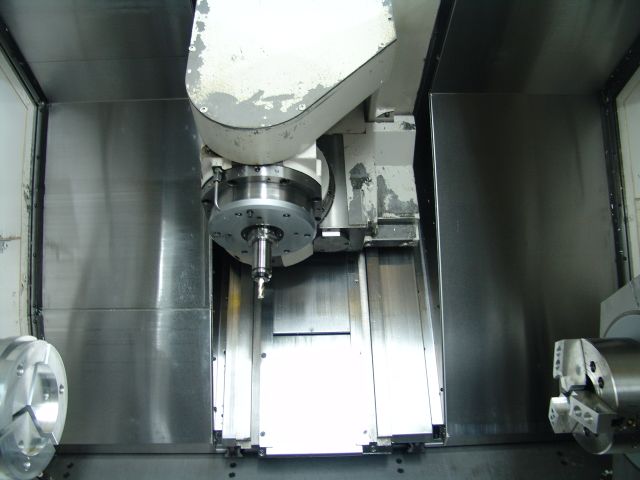

B-Axis Universal Head
Swivel................................ 225 Degree
W-Axis Sub-Spindle
Slide.................................... 33.46"
C-Axis on Both
Spindles..................................... .001
Degree
Tool Positions
............................................. 40 Total
Spindle Bore
............................................... 3.1"
Spindle Nose
............................................... A2-8
Spindle Speed Range
........................................ 50-3800 RPM
Opposed Spindle Range
...................................... 38-5000 RPM
Spindle Horsepower Both
Spindle............................. 20 HP Each
Live Tooling Speed
Range.................................... 90-10000RPM
Live Tooling
Horsepower..................................... 15 HP
Approximate Machine
Dimensions.............................. 166" x 90"
Approximate Machine
Height.................................. 102"
Approximate Machine
Weight.................................. 24,000 LBS
CONDITION: Appears to be in Excellent Condition !
