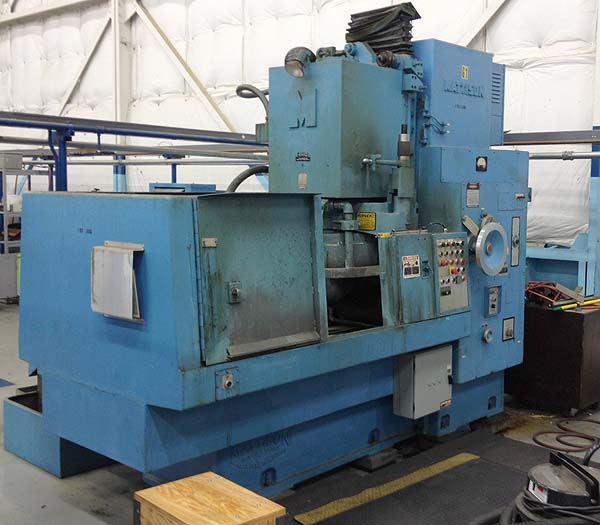

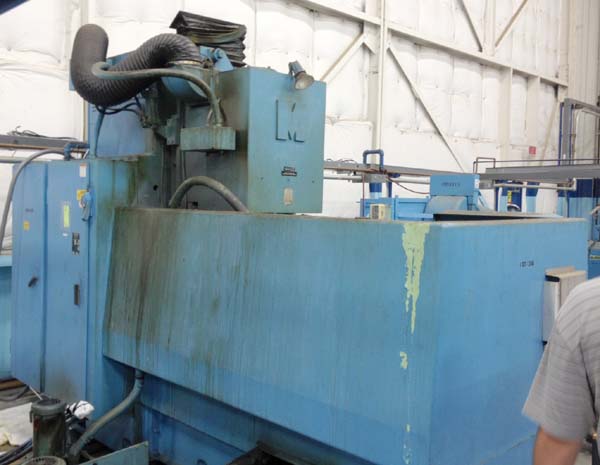

42" MATTISON VERTICAL SPINDLE ROTARY SURFACE
GRINDER
Model 24-42, New 1987, S/N 24-796,
Stock # K14312
EQUIPPED WITH:

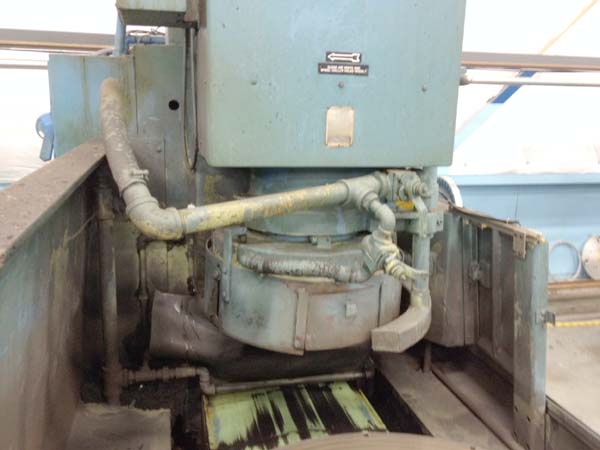

42" Magnetic Chuck, 24" Segmented Grinding Wheel, 50
HP Spindle Motor,
Load Meter, Automatic Continuous Downfeed, Automatic
Cycles, Automatic
Coarse, Fine and Spark-out Timers, Power Rapid
Traverse, Hand Wheel for

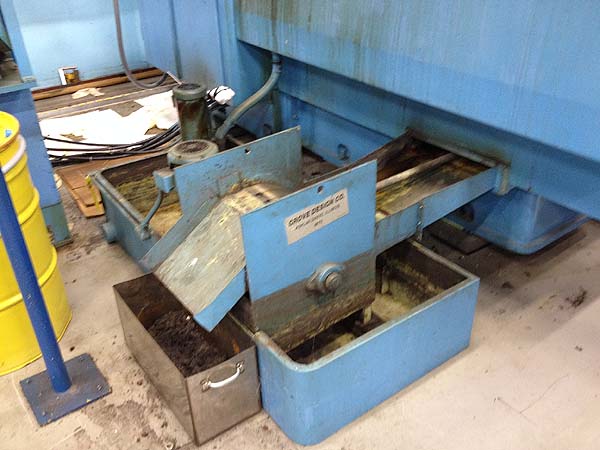

Manual Downfeed, Central Lube System, Coolant System.
CATALOGUE SPECIFICATIONS:
Magnetic Chuck, Holding Diameter.....................
42"
Swing Inside Coolant Guards..........................
56"
Grind to Center Diameter.............................
42"
Vertical Capacity....................................
24"
Chuck Rotation Variable Speed........................
6-28 RPM
Grinding Wheel Size..................................
24"
Grinding Wheel Speed.................................
600 RPM
Feed Rate, Variable..................................
.005 - .165" IPM
Spindle Motor........................................
75 HP (50 HP Std)
Electrical System....................................
240/480/3/60
Approximate Machine Dimensions.......................
168" x 110"
Approximate Machine Height...........................
112"
Approximate Machine Weight...........................
22,000 LBS
CONDITION: Machine Appears to be in Excellent
Condition !
