Okuma 8" Chuck 2-Axis CNC Turning Center CNC Lathe  for sale

OKUMA ES-L8 CNC Turning Center

Stock Number K14317

Okuma 8" Chuck 2-Axis CNC Turning Center CNC Lathe  for sale

Okuma 8" Chuck 2-Axis CNC Turning Center CNC Lathe  for sale

Okuma 8" Chuck 2-Axis CNC Turning Center CNC Lathe  for sale

Okuma 8" Chuck 2-Axis CNC Turning Center CNC Lathe  for sale

Okuma 8" Chuck 2-Axis CNC Turning Center CNC Lathe  for sale

Okuma 8" Chuck 2-Axis CNC Turning Center CNC Lathe  for sale

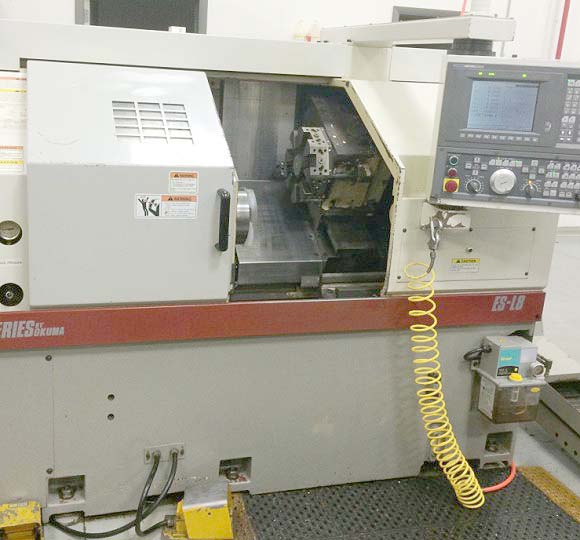

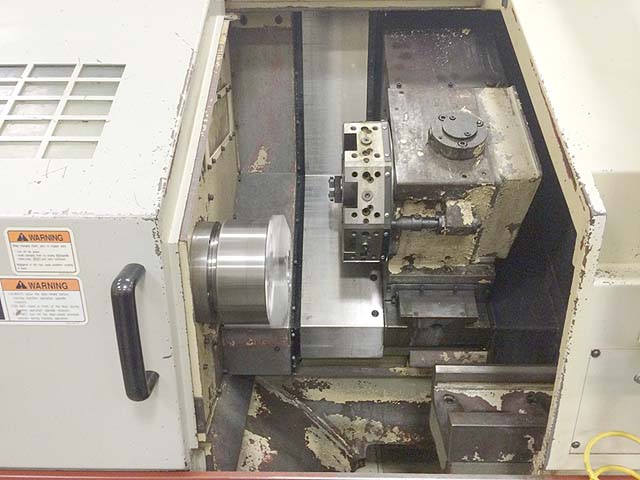

ACTUAL PHOTOS


                 OKUMA ES-L8 CNC TURNING CENTER
                     Model ES-L8, New 2001, S/N C0472
                                       Stock# K14317

EQUIPPED WITH:
OSP U10L CNC Control, 8" 3-Jaw Hydraulic Chuck, 8 Position ID/OD Tool
Turret, Expanded Auto Chamfer, Thread Feed Hold, Animation, Programmable
Tailstock, U100/U10 Spec, Lap-4, Nose R 2B, User Task 2, NC Torque
Limit, Servo Link,  NC Servo Link Spindle, Hi-G Control, Inch/Metric
Switch, Cycle Time Calculator, Cycle Time Reducer, PLC, Heavy Duty Slant
Bed Construction, Chip Conveyor and Coolant System.

CATALOGUE SPECIFICATIONS:
Max Swing Over Slant Bed.................................. 17.7"
Max Swing Over Carriage................................... 10.63"
Max Distance Between Centers.............................. 19.68"
Cross Travel (X-Axis)..................................... 6.10"
Longitudinal Travel (Z-Axis).............................. 20.47"
Feed Range (Infinitely Variable) ......................... .1 to 200 IPM
Rapid Traverse Rate ...................................... 591 IPM
Number of Turrets......................................... 1
Turret Positions.......................................... 8
Spindle Bore.............................................. 2.44"
Bar Capacity.............................................. 2"
Spindle Speed Range....................................... 100-4200 RPM
Spindle Drive Motor....................................... 10 HP
Electrics................................................. 220/3/60
Approximate Machine Dimension............................. 107" x 70"
Approximate Machine Height................................ 75"
Approximate Machine Weight................................ 6000 LBS

CONDITION:  Appears to be in Excellent Condition !
