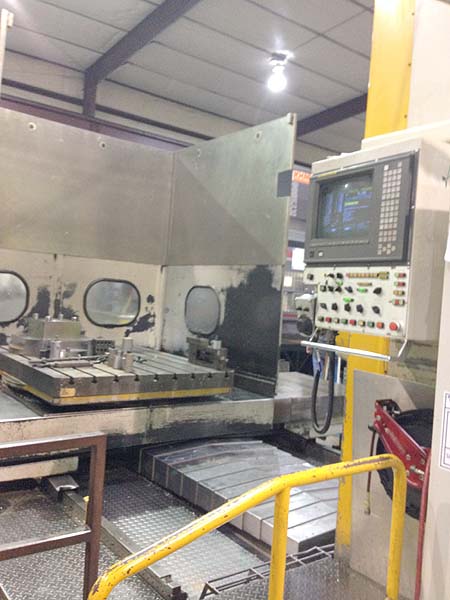

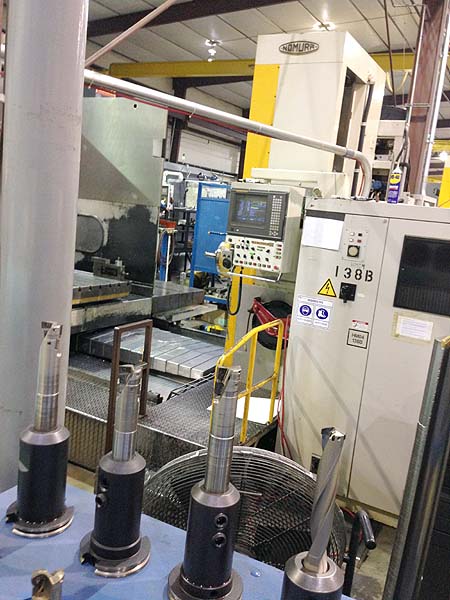

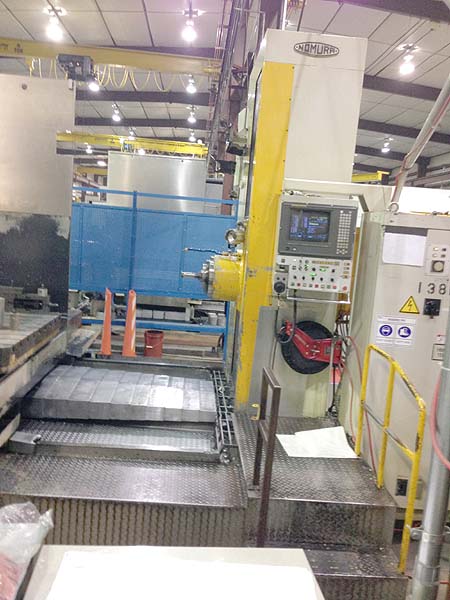

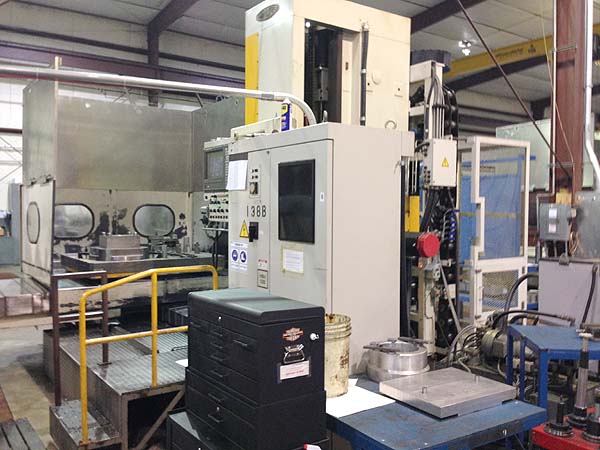

4.33" NOMURA CNC TABLE TYPE HORIZONTAL BORING MILL
                     Model HBA-110T-R3, New 1998, S/N 5105
                                         Stock# K14356



EQUIPPED WITH:

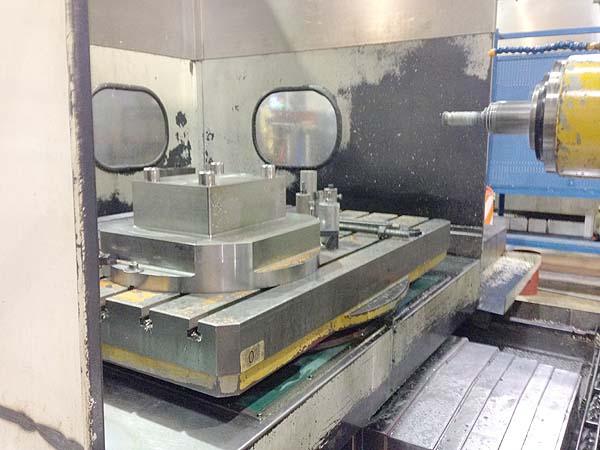

FANUC 16MB CNC Control, 38 Station Automatic Tool Changer, 55" x 63"

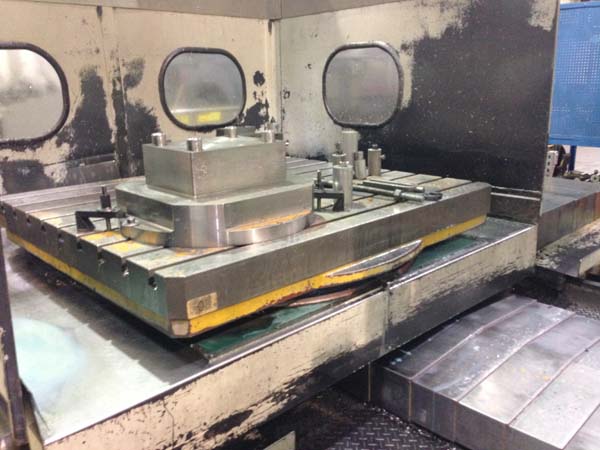

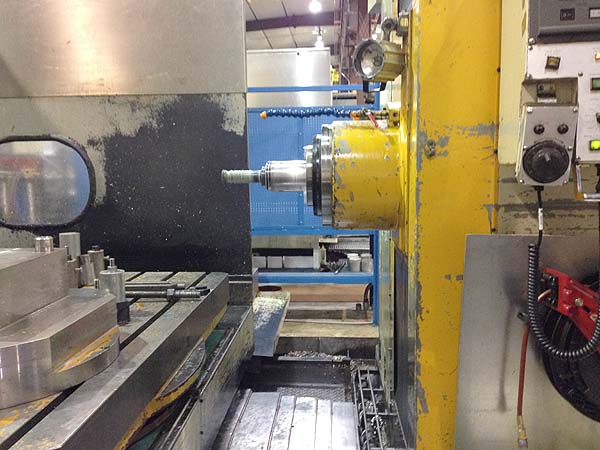

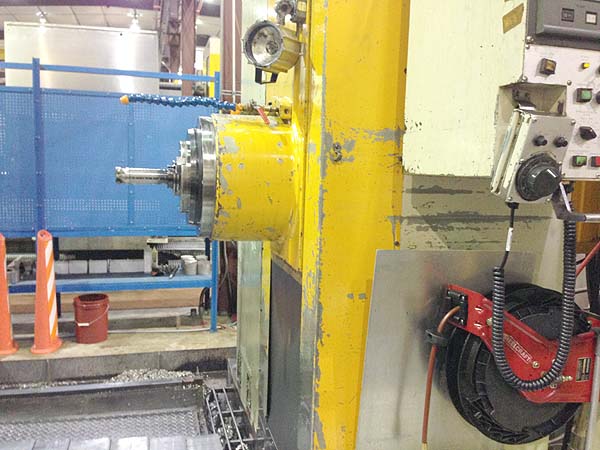

Full Contouring Rotary Table (360,000 Positions), Heavy Duty Cat-50
Spindle, Thru-Spindle Coolant.



CATALOGUE SPECIFICATIONS:

Spindle Diameter................................... 4.3"
Table Size......................................... 55" x 63"
Table Load Capacity................................ 30,000 LBS
Table Cross Travel (X-Axis)........................ 78"
Spindle-Head Vertical Travel (Y-Axis).............. 60"
Spindle (Quill) Travel (Z-Axis).................... 55"
Saddle Longitudinal Travel (W-Axis)................ 19.7"
Spindle Taper...................................... #50 ANS
Spindle Horsepower................................. 25 HP
Spindle Speeds (Infinite in 4 ranges).............. 25 to 2500 RPM
Spindle Feeds Range................................ .0001 to .9999 IPR
Milling Feeds (All Axes)........................... .012 to 120 IPM
Power Rapid Traverse (X & Y Axes).................. 400 IPM
Power Rapid Traverse (Z & W Axes).................. 120 IPM
Electrics.......................................... 460/3/50
Approximate Machine Dimensions..................... 147" x 242"
Approximate Machine Height......................... 138"
Approximate Machine Weight......................... 38,000 LBS



CONDITION:  Machine Appears to be in Excellent Condition ! !
