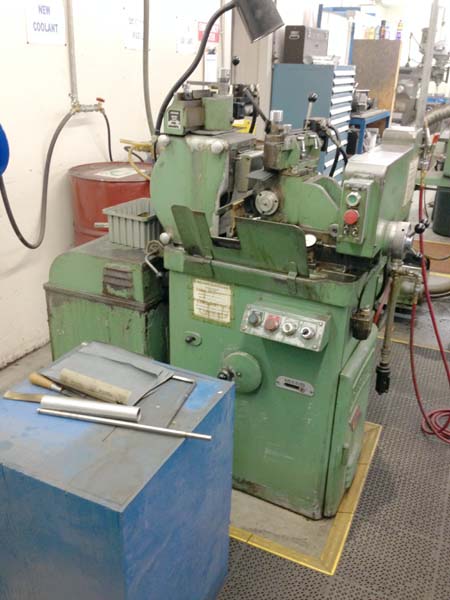

ROYAL MASTER CENTERLESS
GRINDER
Model TG-12x4, New 1980,
S/N 1209
Stock # K14364
EQUIPPED WITH:
Automatic Cycle Unit, Thrufeed Workrest, Power
Profile Grinding Wheel
Dresser, Power Profile Regulating Wheel Dresser,
Bijur Central Lube
System, Work Light, Coolant System.
CATALOGUE
SPECIFICATIONS:
Work Diameter Capacity Maximum (With New
Wheel)........ 1.5"
Work Diameter Capacity
Minimum......................... .004"
Grinding Wheel Diameter,
Maximum....................... 12"
Grinding Wheel Diameter,
Minimum....................... 10"
Grinding Wheel Width,
Maximum.......................... 4"
Grinding Wheel Width,
Minimum.......................... .25"
Regulating Wheel Diameter,
Maximum..................... 6"
Regulating Wheel Diameter,
Minimum..................... 4"
Regulating Wheel Width,
Maximum........................ 4"
Regulating Wheel Width,
Minimum........................ .125"
Grinding Wheel
Speeds.................................. 2040 RPM
Regulating Wheel Speeds
(Variable)..................... 20 - 500 RPM
Grinding Wheel
Motor................................... 7.5 HP
Hydraulic System
Motor................................. 1/4 HP
Electrics.............................................. 230
Approximate Machine
Dimensions......................... 44" x 48"
Approximate Machine
Height............................. 52"
Approximate Machine
Weight............................. 2300 LBS
CONDITION: This Machine is From a High Precision
Shop Appears
To Be In Excellent Condition !
