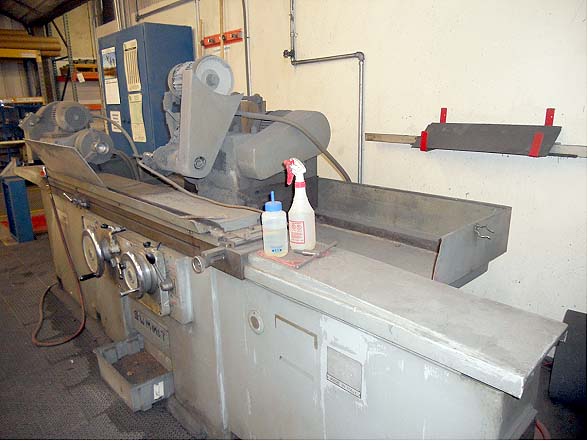

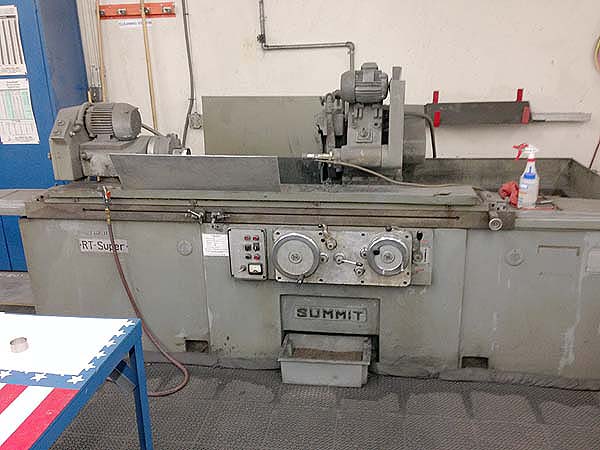

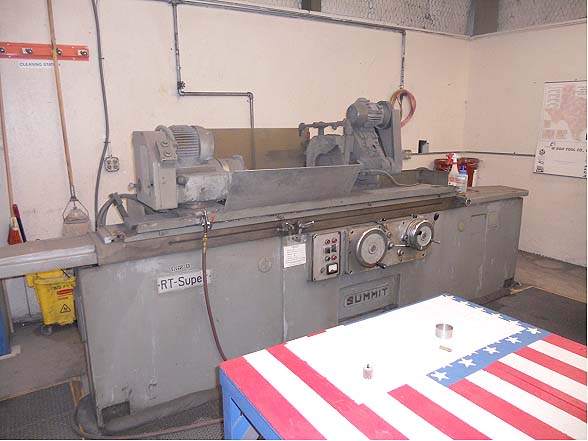

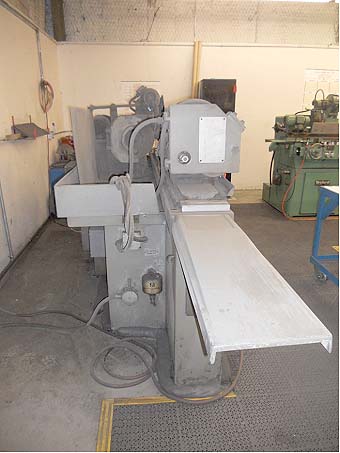

12" X 60" SUMMIT UNIVERSAL CYLINDRICAL GRINDER
                            with Swing Down ID Spindle
                Model SUPER-RT, New 1972, S/N 7-1972-2
                                      Stock# K14365


EQUIPPED WITH:

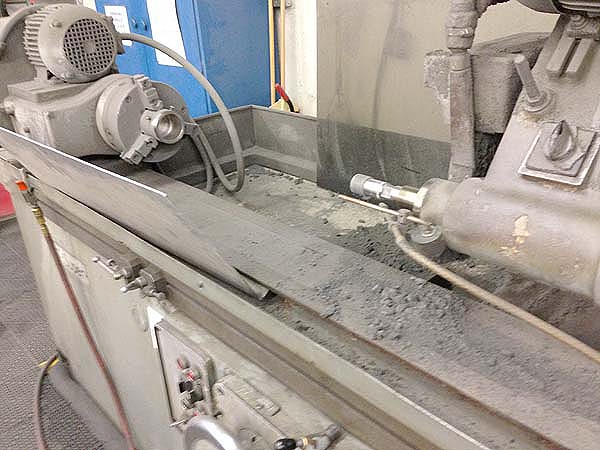

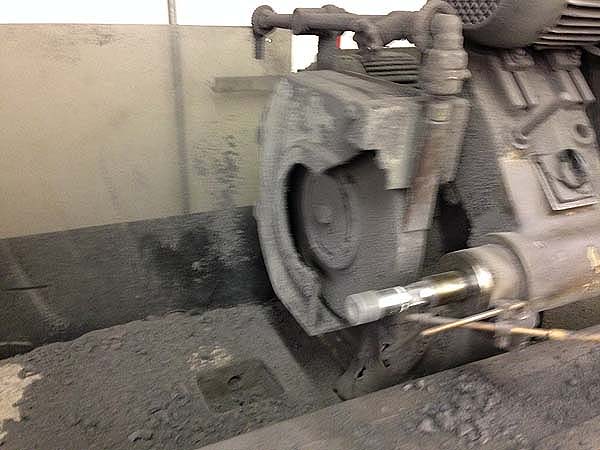

Swivel Base Headstock and Wheelhead, Swing Down Internal Grinding
Spindle, Swivel Work Head, Tail Stock, Table Mounted Dresser, Coolant

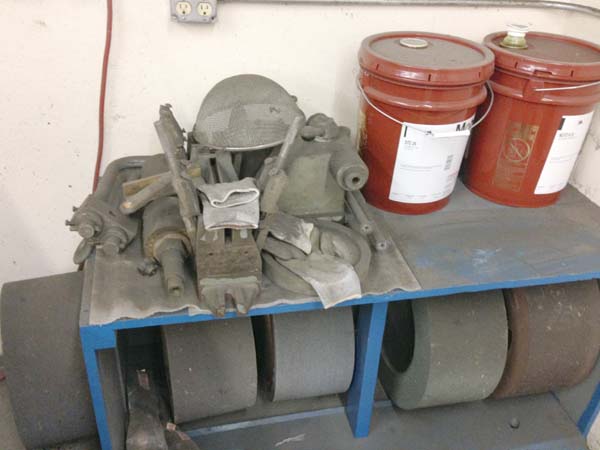

System, Tooling, Extra ID Spindle.

CATALOGUE SPECIFICATIONS:
Swing Over Table, Maximum........................... 12"
Grinding Daimeter, Maximum (with New Wheel)......... 12"
Grinding Length, Maximum............................ 60"
Distance Between Center, Maximum.................... 60"
Grinding Wheel, Standard Diameter................... 14"
Grinding Wheel, Hole Diameter....................... 5"
Wheelhead Swivel Range ............................. 90 DEG
Workhead Swivel Range............................... 360 DEG
Table Swivel Range.................................. 7 DEG
Workhead Spindle Speeds............................. 80 - 300 RPM
Longitudinal Table Feeds, Infinite.................. 0 to 200 IPM
Wheelhead Motor..................................... 5.5 HP
ID Spindle Motor.................................... 1.2 HP
Workhead Motor...................................... 1.1 HP
Approximate Machine Dimensions...................... 57" x 119"
Approximate Machine Height.......................... 62"
Approximate Weight.................................. 6,000 LBS



CONDITION:  Appears to be in Very Good Condition !!
