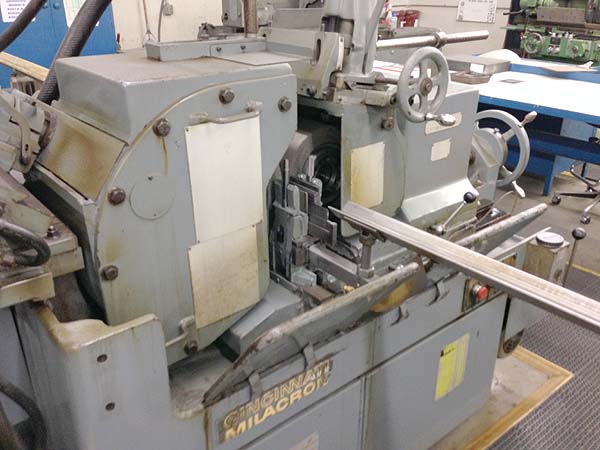

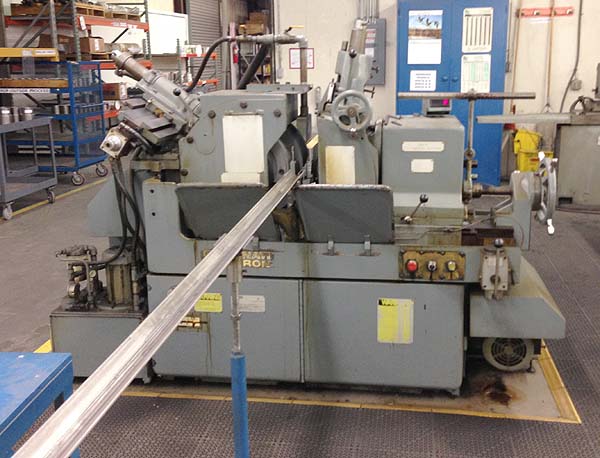

#2 OMV CINCINNATI CENTERLESS GRINDER
                  Model OMV, New 1990, S/N 9116MV90-0105
                                     Stock # K14366


EQUIPPED WITH:
Thrufeed Workrest, Hydraulic Power Profile Grinding Wheel Dresser,
Hydraulic Power Profile Regulating Wheel Dresser, Cincinnati Filmatic
Spindle Bearings, Coolant Tank and Pump.



CATALOGUE SPECIFICATIONS:
Work Diameter Capacity Maximum (With New Wheel)........ 4.5"
Work Diameter Capacity Nominal......................... 0"
Grinding Wheel Diameter, Maximum....................... 20"
Grinding Wheel Diameter, Minimum....................... 15"
Grinding Wheel Width, Maximum.......................... 8"
Grinding Wheel Width, Minimum.......................... 1"
Grinding Wheel Hole Diameter........................... 12"
Regulating Wheel Diameter, Maximum..................... 12"
Regulating Wheel Diameter, Minimum..................... 9"
Regulating Wheel Width, Maximum........................ 8"
Regulating Wheel Width, Minimum........................ 1"
Regulating Wheel Hole Diameter......................... 5"
Regulating Wheel Speeds (Variable)..................... 12 - 300 RPM
Grinding Wheel Motor................................... 15 HP
Regulating Wheel Motor................................. 1.5 HP
Hydraulic System Motor................................. 2 HP
Electrics.............................................. 220/440/3/60
Approximate Machine Dimensions......................... 88" x 67"
Approximate Machine Height............................. 70"
Approximate Machine Weight............................. 10,000 LBS



CONDITION:  Appears To Be In Excellent Condition !
