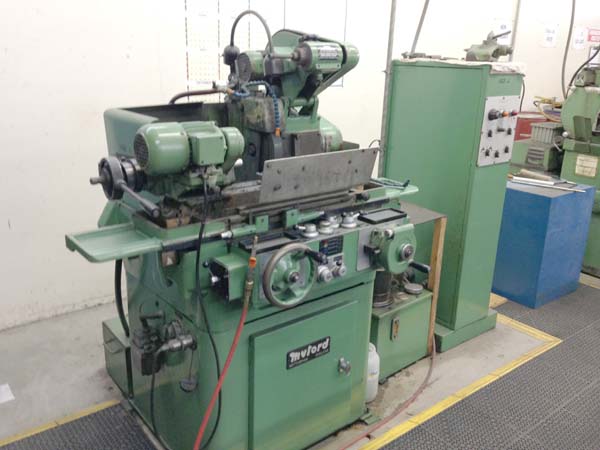

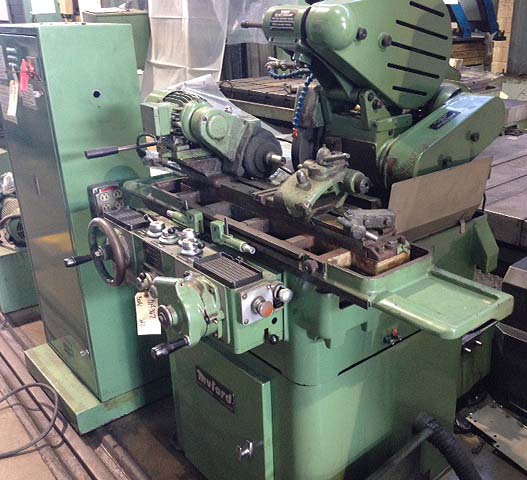

5" X 12" MYFORD HIGH PRECISION UNIVERSAL CYLINDRICAL GRINDER
                                            with Swing Down ID Spindle
                            Model MG-12 HAR, New 1981, S/N HAR 151002
                                                     Stock# K14367


EQUIPPED WITH:
Swivel Base Headstock, Swing Down Internal Grinding Spindle, Swivel Work
Head, Tail Stock, Hydraulic Table Traverse, Automatic Infeed, Variable
Dwell at each end of Table, Automatic Hydraulic Rapid Advance and
Retraction of Grinding Wheelhead, Spark Out Timer, Infinitely Variable
Workhead Spindle, Table Mounted Dresser, Coolant System, Large Amount
of Collets and Tooling.

CATALOGUE SPECIFICATIONS:
Swing Over Table, Maximum........................... 5"
Grinding Daimeter, Maximum (with New Wheel)......... 3"
Grinding Length, Maximum............................ 13-3/4"
Distance Between Center, Maximum.................... 12"
Table Traverse...................................... 0 to 120 IPM
Grinding Wheel, Standard Diameter................... 12"
Grinding Wheel, Hole Diameter....................... 5"
Wheelhead Swivel Range ............................. 90 DEG
Table Swivel Range.................................. +/- 10 DEG
Workhead Spindle Speeds............................. 50 - 900 RPM
Longitudinal Table Feeds, Infinite.................. .00005 to .002
Approximate Machine Dimensions...................... 48" x 60"
Approximate Machine Height.......................... 52"
Approximate Weight.................................. 4,000 LBS



CONDITION:  Appears to be in Very Good Condition !!
