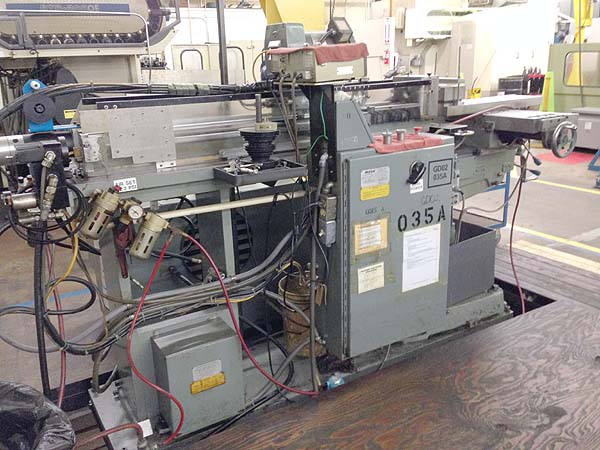

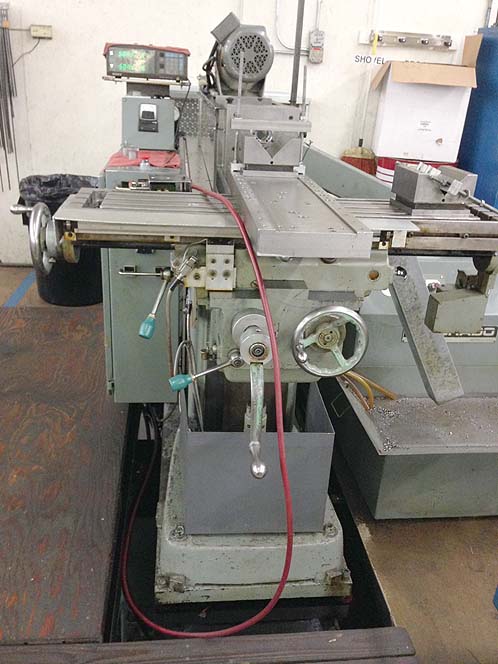

3/4" x 48" ELDORADO 3-Axis KNEE TYPE PRECISION HORIZONTAL GUN DRILL

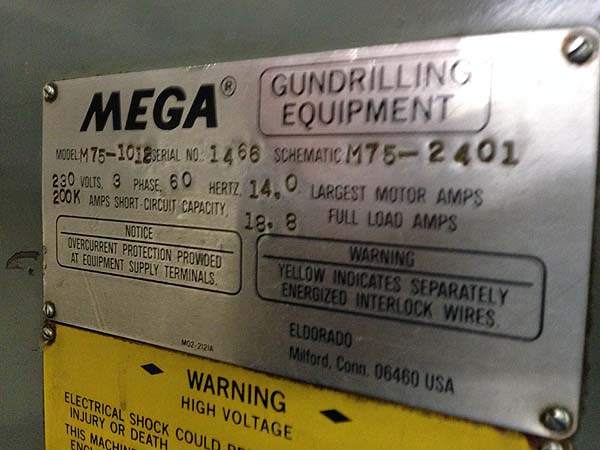

                                       Model M75-1018, New 1990, Stock# K14368



EQUIPPED WITH:

Sony 2 Axis Digital Readouts, Precision Ball Screw Feed, Hardened and
Ground Square Ways, Flo-Minder Coolant Monitor, Feed Thrust Meters,

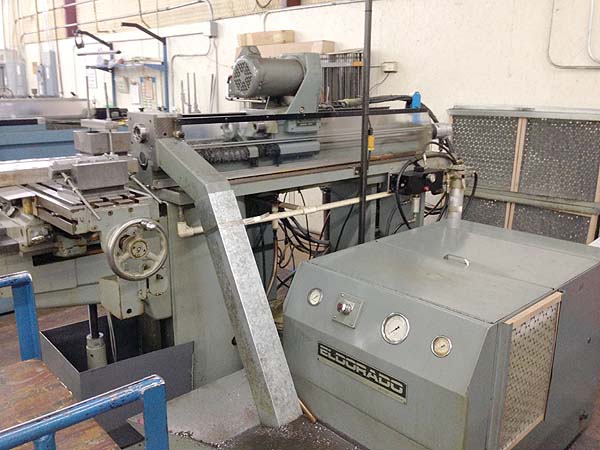

Servo Infeed, Pendent Control, Automatic Lubrication System, Eldorado
High Pressure Coolant Unit.



CATALOGUE SPECIFICATIONS:

Working Surface of Table.......................... 15" x 42"
Drilling Capacity (Solid Mild Steel).............. 3/4" Maximum
Drill Head Stroke................................. 48" Maximum
Infinitely Variable Feed.......................... .1 - 100 IPM
Rapid Travers..................................... 200 IPM
Spindle Horsepower................................ 1.5 HP
Spindle Speeds (18)............................... 1445 to 11,750 RPM
Electrics......................................... 460/3/60
Coolant System Horsepower......................... 7.5 HP
Coolant system Operating Pressure................. 1500 PSI
Coolant System Flow............................... 18 GPM
Approximate Machine Dimensions.................... 75" x 136"
Approximate Machine Height........................ 69"
Approximate Machine Weight........................ 8,000 lbs



CONDITION: Appears to be in Excellent Condition !
