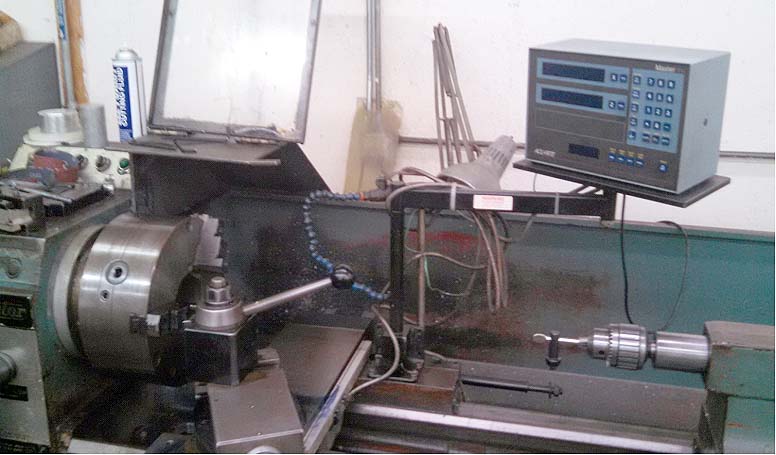

20" x 60" VICTOR ENGINE LATHE
Model S2060G, New 1975,
S/N 780682
Stock# K14369
EQUIPPED WITH:
Acu-Rite 2-Axis Digital Readouts, 3" Spindle
Bore, (1) Steady Rest, 10"
3-Jaw Chuck, Rapid Traverse, Inch Metric
Threading, Taper Attachment,
Compound Cross Slide, Aloris Tool Post,
Coolant System, Chip Pan.
CATALOGUE SPECIFICATIONS:
Swing over the
bed................................. 20"
Swing over the cross
slide......................... 11-1/2"
Swing in the
Gap................................... 27-17"
Distance between
centers........................... 60"
Cross Slide
Travel.................................
10-1/2"
Spindle
Nose.......................................
D1-8
Spindle
Bore.......................................
3-1/8"
Taper in
Tailstock.................................
MT-4
Spindle Speed
(16)................................. 25-1500
RPM
Feed
Range.........................................
.0033-.0233 IPR
Metric Threads
(39)................................ .25-6 mm
Inch Threads
(45)................................ 4-56 TPI
Main
Motor.........................................
10 HP
Approximate Machine
Dimensions..................... 40" x 110"
Approximate Machine
Weight......................... 4000 lbs
CONDITION: Appears to be in Excellent
Condition !
