EQUIPPED WITH:

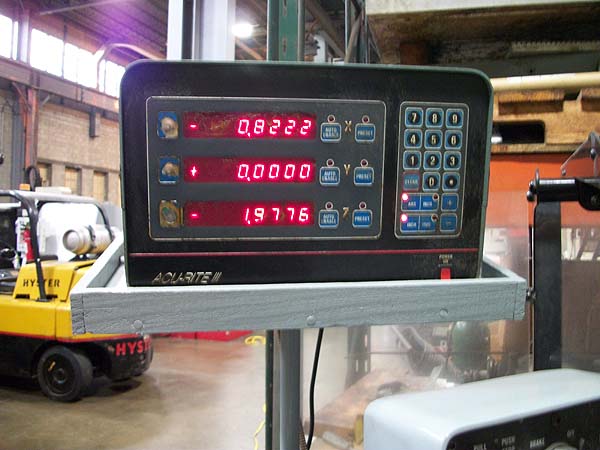

Accurite II Digital Readouts, Super Precision
Preloaded Ball BearingSpindle,
Variable Speed Spindle, Aloris Style
quick Change Tool Post, Compound Top Slide.

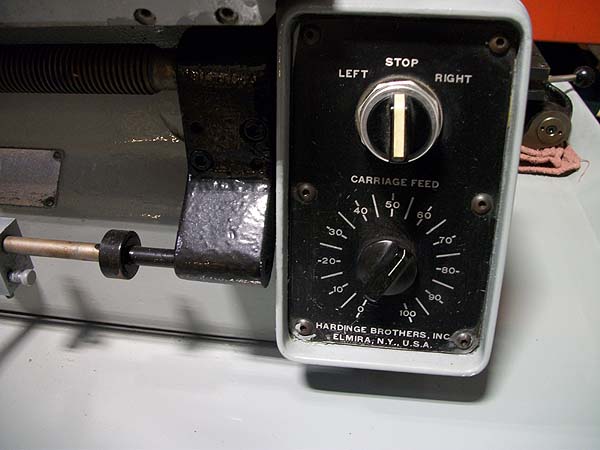

Inch Threading, Independent Electric Variable

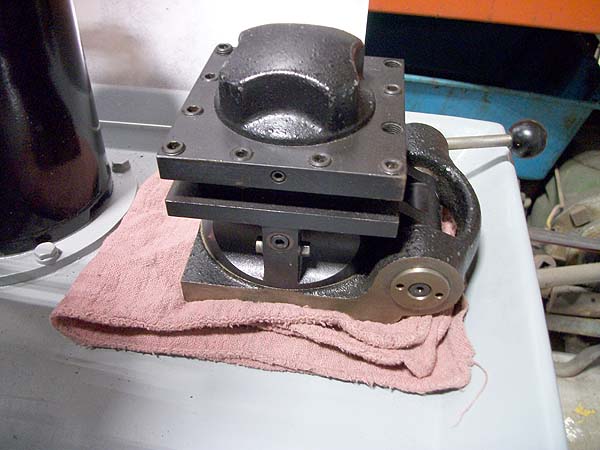

Feeds, 5C Collet Nose, 4-Position Indexing
Turret Attachment, New Dovetail Way
Wipers,
Hardened and Precision Ground Taper Nose
Spindle, Hardened and

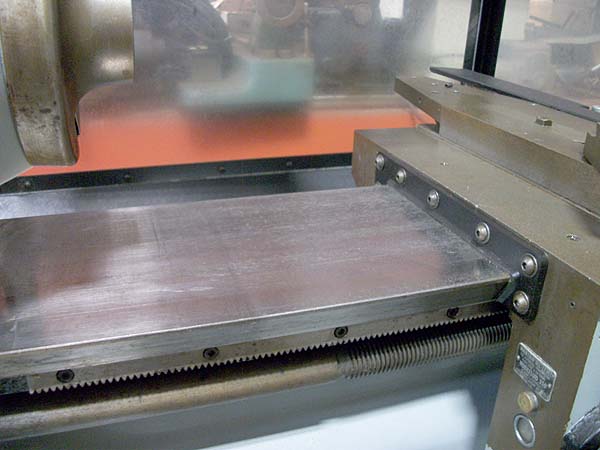

Ground Steel Dovetail Bedways, Built-in
Coolant System.
SPECIFICATIONS:
Swing Over the
Bed..................................... 11"
Swing Over the
Carriage................................ 9"
Swing Over Cross
Slide................................. 6"
Distance Between
Centers............................... 18"
Spindle Thru Hole Capacities:
With Round
Collets............................. 1-1/6"
With Hex
Collets............................... 7/8"
With Square 5C
Collets......................... 3/4"
Spindle Speeds (Infinitly
Variable).................... 125 - 3000 RPM
Power Feed
Range.......................................
1/4 to 7 IPM
Thread Changes
(27).................................... 11 -
108 TPI
Tailstock
Diameter.....................................
1-3/8"
Tailstock
Taper........................................
#2 MT
Approximate Machine
Dimensions......................... 67" x 33"
Approximate Machine
Height............................. 60"
Approximate Machine
Weight............................. 1700 Lbs.
