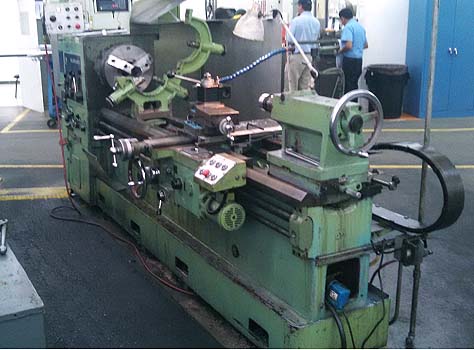

KURAKI 25" x 80" OIL COUNTRY LATHE with 4-1/8" BORE
                    Model KH4-20, New 1981, Stock# K14374



EQUIPPED WITH:
Newall DP7 2-Axis Digital Readouts, 4-1/8" Spindle Bore, Front
and Rear Chucks, (1) Steady Rest, 18" 3-Jaw Chuck, 12" 4-Jaw Chuck,
Rapid Traverse, Inch Metric Threading, Taper Attachment, Compound Cross
Slide, Aloris Tool Post, Coolant System, Chip Pans.



CATALOGUE SPECIFICATIONS:
Swing over the bed................................. 25-5/8"
Swing over the cross slide......................... 16-1/8"
Distance between centers........................... 80"
Cross Slide Travel................................. 13"
Spindle Nose....................................... A1-11
Spindle Bore....................................... 4-1/8"
Taper in Tailstock................................. MT-6
Spindle Speed ..................................... 22-1000 RPM
Feed Range......................................... .0039-.0275 IPR
Metric Threads (42)................................ 2-14 mm
Inch Threads   (42)................................ 2-27 TPI
Main Motor......................................... 15 HP
Approximate Machine Dimensions..................... 156" x 77"
Approximate Machine Weight......................... 9,500 lbs



CONDITION: Appears to be in Excellent Condition !
