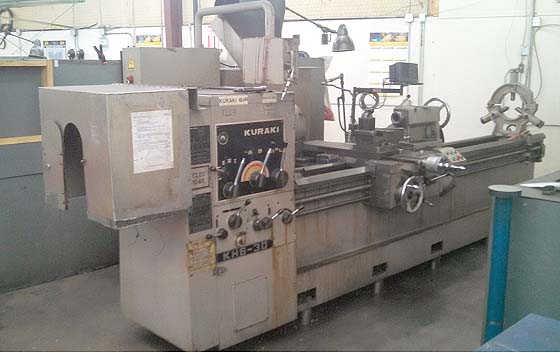

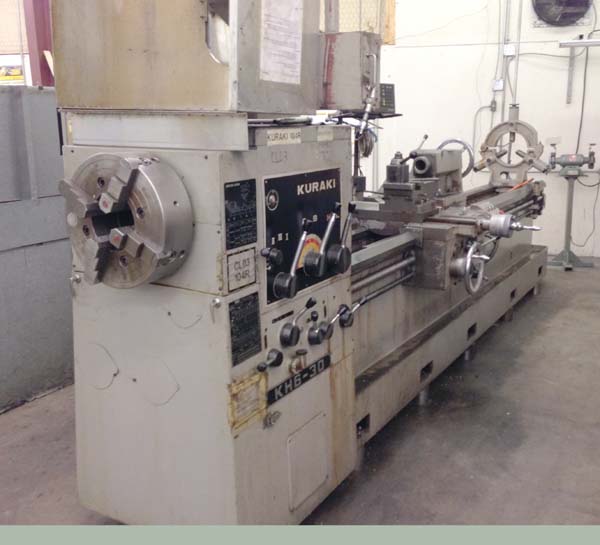

KURAKI 25" x 120" OIL COUNTRY LATHE
with 6-3/4" BORE
Model KH6-30, New 1981,
Stock# K14375
EQUIPPED WITH:
Acu-rite 2-Axis Digital Readouts, 6-3/4"
Spindle Bore, Front and Rear
Chucks, (1) Steady Rest, 20" 4-Jaw Chuck, 16"
4-Jaw Chuck, Rapid
Traverse, Inch Metric Threading, Taper
Attachment, Compound Cross Slide,
Aloris Tool Post, Coolant System, Chip Pans.
CATALOGUE SPECIFICATIONS:
Swing over the
bed................................. 25-5/8"
Swing over the cross
slide......................... 16-1/8"
Distance between
centers........................... 120"
Cross Slide
Travel................................. 13"
Spindle
Nose.......................................
A1-11
Spindle
Bore.......................................
6-3/4"
Taper in
Tailstock.................................
MT-6
Spindle Speed
..................................... 23-800
RPM
Feed
Range.........................................
.0039-.0275 IPR
Metric Threads
(42)................................ 2-14 mm
Inch Threads
(42)................................ 2-27 TPI
Main
Motor.........................................
20 HP
Approximate Machine
Dimensions..................... 196" x 77"
Approximate Machine
Weight......................... 11,500 lbs
CONDITION: Appears to be in Excellent
Condition !
