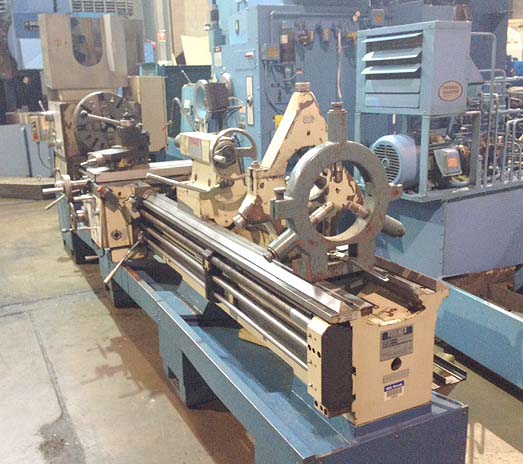

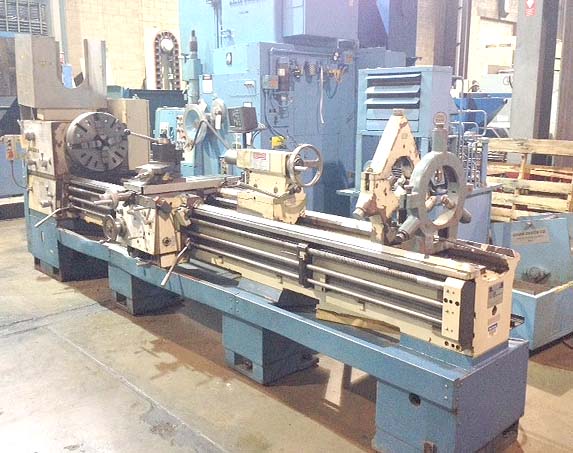

TOOLMEX 25" x 120" ENGINE LATHE with 5.5" BORE
             Model TUR630A, New 1988, Stock# K14379

EQUIPPED WITH:
Newall DP7 2-Axis Digital Readouts, 5.5" Spindle Bore, Front

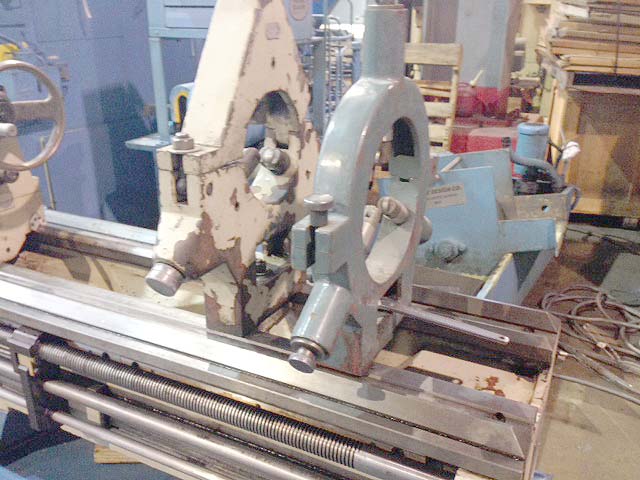

and Rear Chucks, (2) Steady Rest, (2) 20" 4-Jaw Chucks, Rapid Traverse,
Inch Metric Threading, Taper Attachment, Compound Cross Slide, Aloris
Tool Post, Coolant System, Chip Pans.


CATALOGUE SPECIFICATIONS:
Swing over the bed................................. 24.8
Swing over the cross slide......................... 14.9"
Distance between centers........................... 120"
Cross Slide Travel................................. 13"
Spindle Nose....................................... D1-11
Spindle Bore....................................... 5.5"
Taper in Tailstock................................. MT-5
Spindle Speed (21)................................. 15-1400 RPM
Feed Range......................................... .002-.121 IPR
Metric Threads (42)................................ 1-88 mm
Inch Threads (42)................................ 1-88 TPI
Main Motor......................................... 20 HP
Approximate Machine Dimensions..................... 200" x 71"
Approximate Machine Weight......................... 12,500 lbs

CONDITION: Appears to be in Very Good Condition !
