Birmingham bmv-1054 Bridgeport Series 1 Style Mill  for sale

BIRMINGHAM 3HP Bridgeport Style Mill

Stock Number K14381

Birmingham bmv-1054 Bridgeport Series 1 Style Mill  for sale

Birmingham bmv-1054 Bridgeport Series 1 Style Mill  for sale

Birmingham bmv-1054 Bridgeport Series 1 Style Mill  for sale

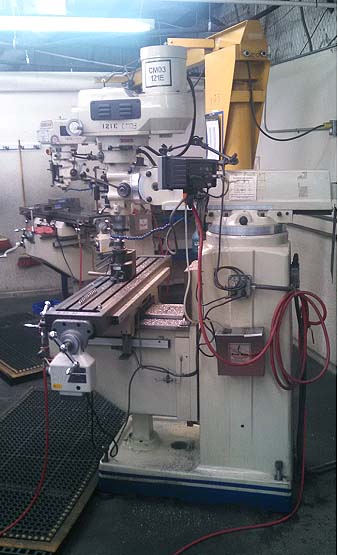

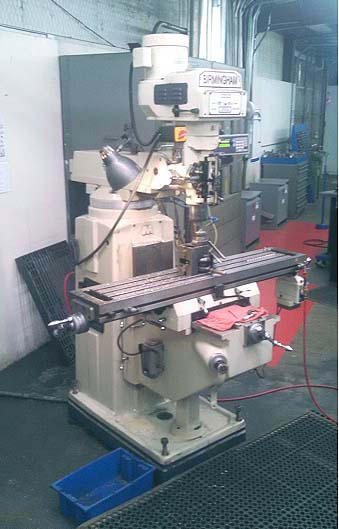

ACTUAL PHOTOS
                  BIRMINGHAM BMV-1054 VERTICAL MILL
                   Model BVM-1054, S/N 066286, New 2007
                                           Stock# K14381

EQUIPPED WITH:
Acurite Digital Readouts, Power Table Feed, Power Quill Feed, 3 HP
Variable Speed Spindle, Knee Lock, Swivel Type Overarm, One Shot
Lube System, Work Light.

SPECIFICATIONS:
Table Dimensions (Overall, W x L)........................ 10" x 54"
Longitudinal Table Travel Power Feed (X-Axis)............ 32-1/4"
Longitudinal Table Travel Had Feed....................... 36"
Cross Saddle Travel (Y-Axis)............................. 15-3/4"
Vertical Knee Travel (W-Axis)............................ 16"
Vertical Quill Travel (Z-Axis)........................... 5"
Ram Travel............................................... 18"
Spindle Taper............................................ R-8
Spindle Speeds........................................... 60-4300 RPM
Quill Feeds.............................................. .0015.003.006
Motor (Spindle).......................................... 3 HP
Electrics................................................ 220/440/3/60
Approximate Machine Dimensions........................... 72" x 78"
Approximate Machine Height............................... 78"
Approximate Machine Weight............................... 3200 lbs.

Condition:  Machine Appears to be in Excellent Condition!
