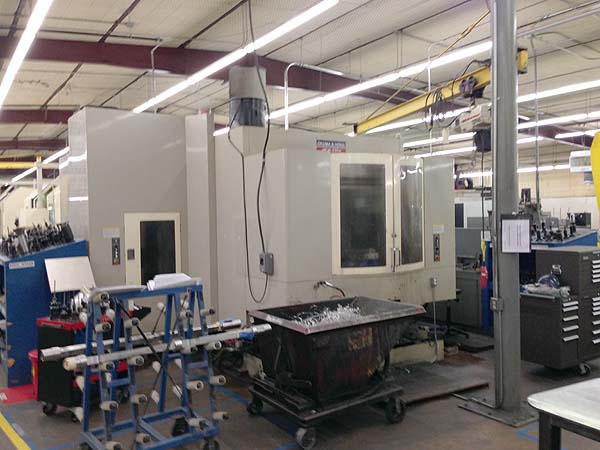

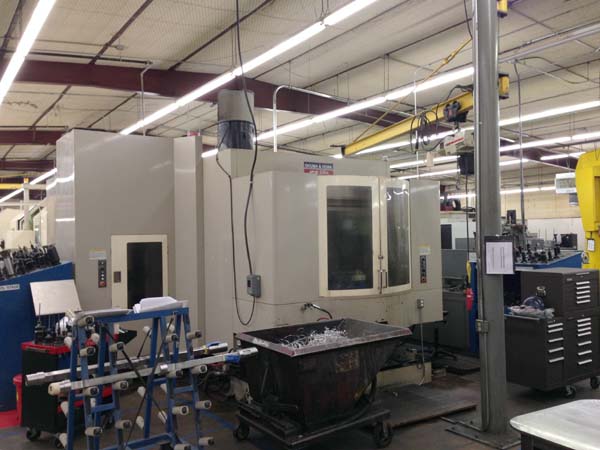

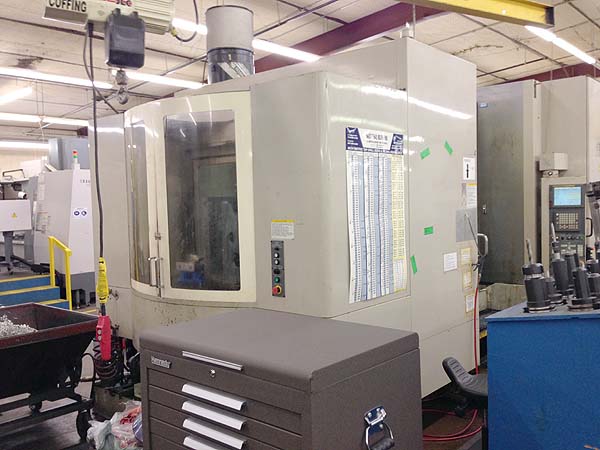

OKUMA HOWA 25" PALLET CNC HORIZONTAL MACHINING CENTER
                       Model Millac 630H, S/N 9021, New 2005
                               Stock # K14385



EQUIPPED WITH:



Fanuc 16IM CNC Control, Rigid Tapping, Helical Interpolation, Multiple

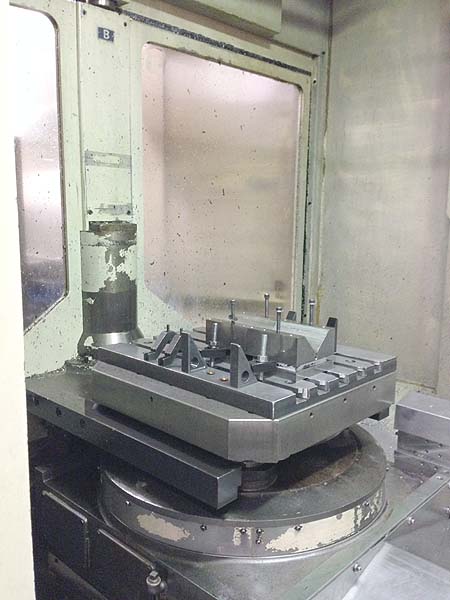

Part Program Storage, 24.8" x 24.8" Pallets, Full 4th Axis Pallet
Rotation, 80 Position Automatic Tool Changer, RS-232 Port, Full Coolant
Enclosure, Thru Spindle Coolant, Chip and Coolant System System.



CATALOGUE SPECIFICATIONS:



Longitudinal Travel (X-Axis) ........................... 40"
Vertical Travel (Y-Axis) ............................... 32"
Spindle Travel (Z-Axis) ................................ 23"
Pallet Dimensions ...................................... 24.8"x 24.8"
Maximum Pallet Load .................................... 2646 LBS
Number of Pallets ...................................... 2
Number of Index Positions............................... 360,000
Feed Rate, All Axes .................................... .04 - 472 IPM
Rapid Traverse, All Axes ............................... 1181 IPM
Spindle Horsepower...................................... 40 HP
Spindle Speed Range..................................... 30 - 8,000 RPM
Spindle Taper .......................................... #50 CAT
Number of Tool Stations ................................ 80
Electrics............................................... 220/3/60
Approximate Floorspace Dimensions ...................... 199" x 138"
Approximate Machine Height ............................. 134"
Approximate Machine Weight ............................. 36,000 LBS



CONDITION: Machine Appears to be in Excellent Condition!
