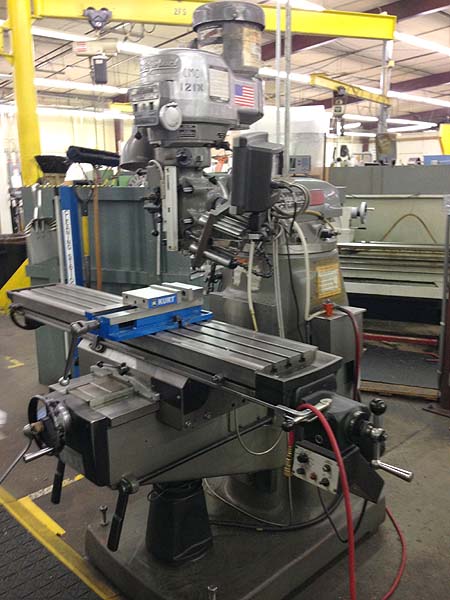

BRIDGEPORT SERIES II SPECIAL VERTICAL MILL
                Model Series II Special, S/N 8234S, New 1997
                                Stock# K14388



EQUIPPED WITH:

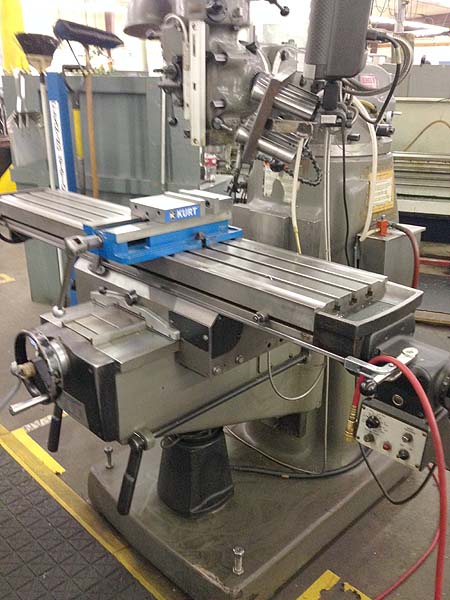

3-Axis Acurite Digital Readouts, Bridgeport Power Table Feed,

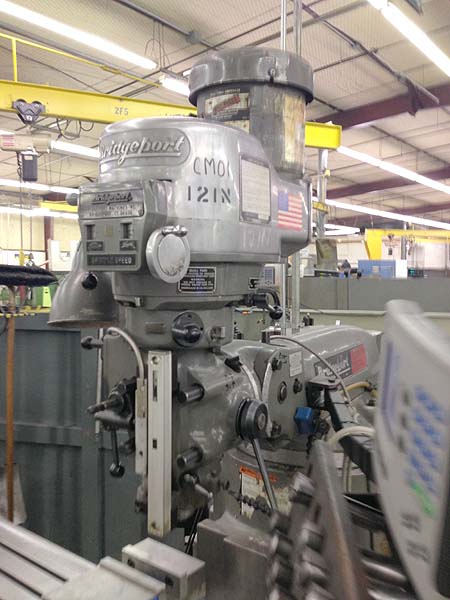

Heavy Duty Box Ways, Bridgeport 'Swivel Type' 'J' Style Head, Knee Lock,
Swivel Type, Overarm, Rapid Traverse.
This is a standard factory model. It's a beefed up series 1 with a
series 2 table and column for more weight load capacity and heavier
milling.



SPECIFICATIONS:
Table Dimensions (Overall, W x L)......................... 11" x 58"
Table Working Surface, W X L.............................. 11" x 58"
Longitudinal Table Travel (X-Axis)........................ 33.5"
Cross Saddle Travel (Y-Axis).............................. 15"
Vertical Knee Travel (W-Axis)............................. 12"
Vertical Head Travel (Z-Axis)............................. 5"
Table Load Capacity....................................... 1500 lbs
Spindle Taper............................................. R-8
Spindle Speeds ........................................... 60-4200 RPM
Drive Type................................................ Vari Speed
Table Feeds............................................... .75 - 35 IPM
Quill Feeds............................................... .0015-.006IPR
Table Feed Motor ......................................... 1/8 HP
Motor (Spindle)........................................... 2 HP
Electrics................................................. 220/440/3/60
Approximate Machine Dimensions............................ 100" x 76"
Approximate Machine Height................................ 78"
Approximate Machine Weight................................ 3600 lbs.

Condition: Appears to be in Excellent Condition.
