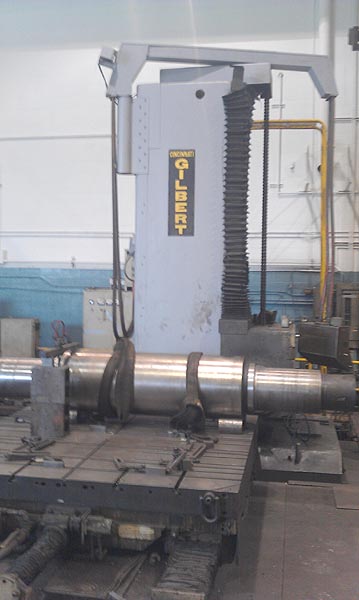

5" Cincinnati Gilbert Floor Type Horizontal Boring Mill
 New 1970,  Retrofit 1986

Equipped With:
Fanuc 6M CNC Control Retrofit 1986
96" x 96" In feeding Rotary Table w/ 30" In feed Travel
96" x 96" In feeding Table w/ 30" In feed Travel
Power Draw Bar
Ball Screws & Independent Drives
Bellow Type Way Covers on Y-Axis
Steel Sliding Way Covers on X-Axis
30 HP Spindle Motor


Capacity:
Spindle Diameter   5.375"
Taper In Spindle    #50
Vertical Travel, Y-Axis         96"
Horizontal Travel, X-Axis     240"
Spindle Travel, Z-Axis          47"
Table Slide( Not Programmable)  30"

Spindle Speeds                  0-900 RPM
Spindle                                 30 HP
