39" x 134" SUMMIT ENGINE LATHE with 12.5" Bore

Stock Number K14412

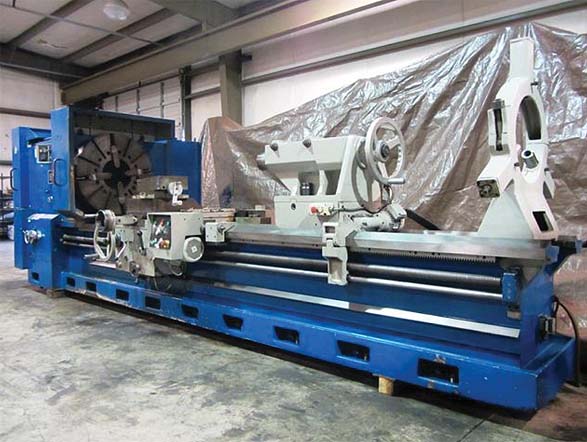

ACTUAL PHOTOS

    SUMMIT 39.5" x 134" ENGINE LATHE with 12.5" BORE
               Model 38-12XRO, New 2005, Stock# K14412

EQUIPPED WITH:

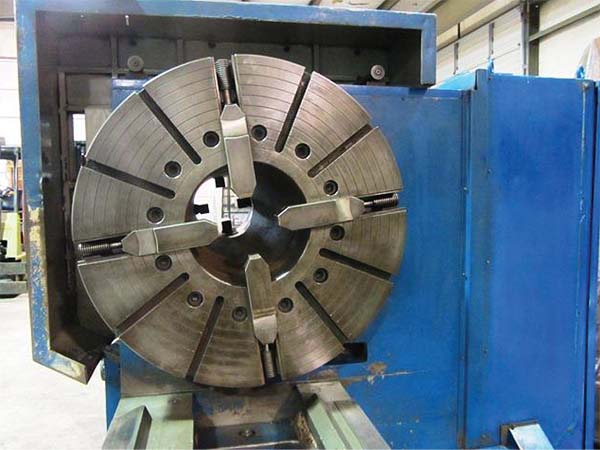

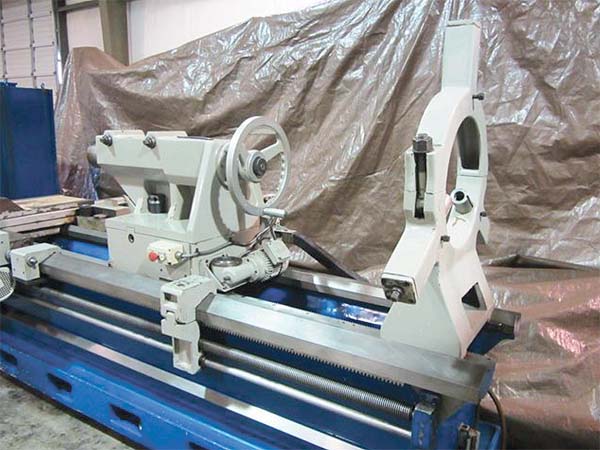

12.5" Spindle Bore, 33" and 26" 4-Jaw Chucks, Steady Rest, Rapid Traverse,
Inch Metric Threading, Taper Attachment, Compound Cross Slide,  Coolant System, Chip Pans.


CATALOGUE SPECIFICATIONS:
Swing over the bed................................. 39.5"
Swing over the cross slide......................... 27.5"
Distance between centers........................... 134"
Swing in Gap.............................................. 51"
Spindle Nose....................................... A1-20
Spindle Bore....................................... 12.5"
Taper in Tailstock................................. MT-6
Spindle Speed (21)................................. 4.5-180 RPM
Feed Range......................................... .002-.121 IPR
Main Motor......................................... 40 HP
Approximate Machine Dimensions..................... 290" x 71"
Approximate Machine Weight......................... 27,500 lbs

CONDITION: Appears to be in Very Good Condition !
