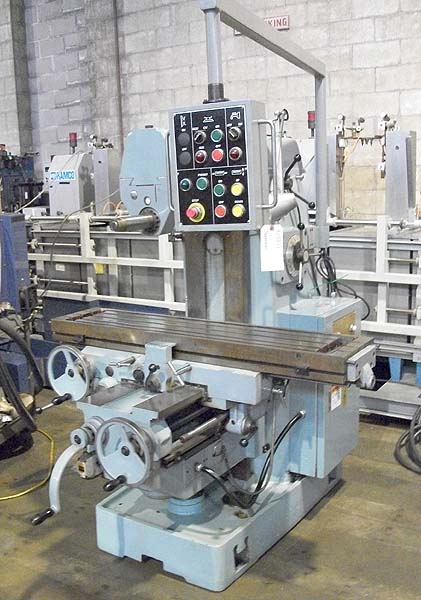

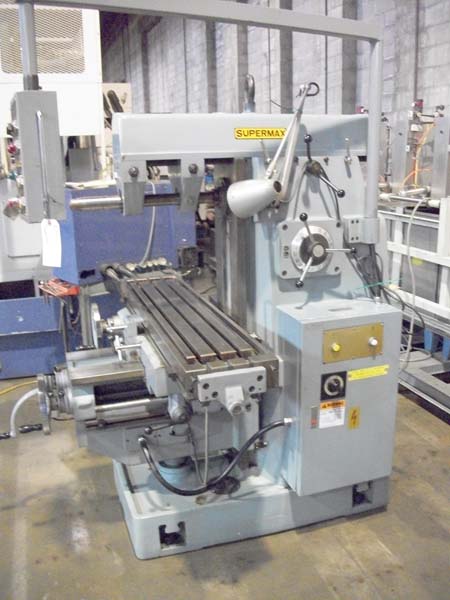

2H YCM SUPERMAX PLAIN HORIZONTAL MILL

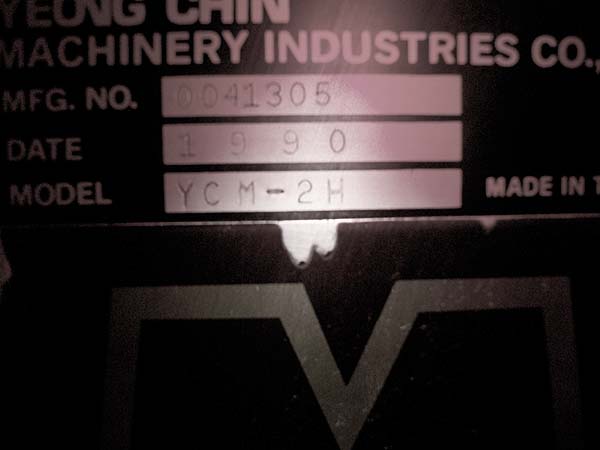

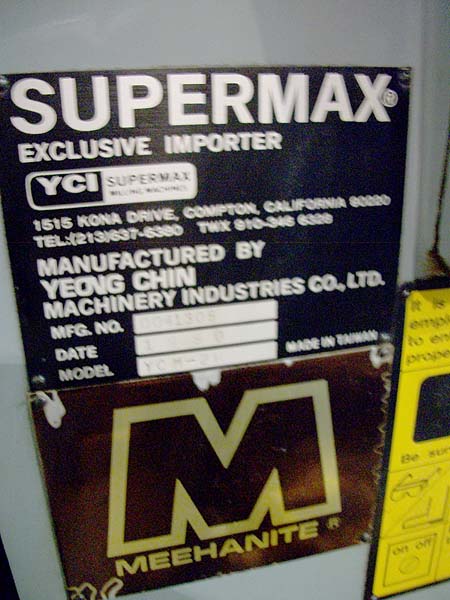

New 1990, S/N 0041305, Stock #
K14441
Automatic

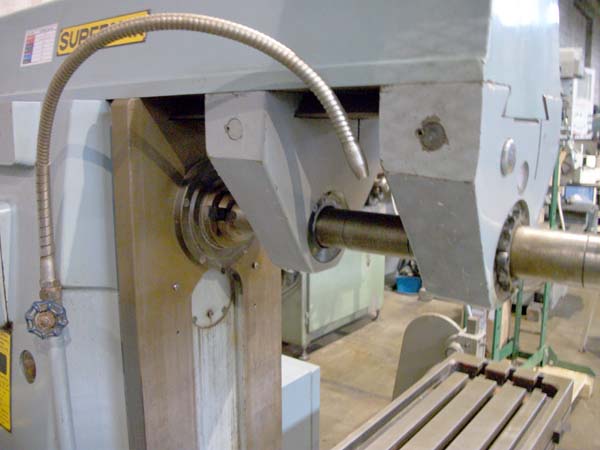

Table Cycles, Electric Trip Dogs, Hardened Ways, (2)
Arbor
Supports, Table Rapids, Built-in Coolant System,
Tooling Package
CATALOGUE SPECIFICATIONS:
Table
Dimensions.................................... 11" x
51"
Longitudinal Table Travel (X Axis)..................
39-3/8"
Vertical Knee Travel (Y Axis).......................
17-3/4"
Cross Saddle Travel (Z Axis)........................
16"
Spindle Taper.......................................
#40 Standard
Spindle Speeds (16), Range..........................
49-1300 RPM
Longitudinal & Cross Feeds (16)(X & Z Axis).........
5/8 to 28 IPM
Rapid Traverse Rate,................................
180 IPM
Spindle Motor....................................... 5
HP
Electrics ..........................................
230/3/60
Approximate Machine Dimensions .....................
110 x 65"
Approximate Machine Height..........................
65"
Approximate Machine Weight..........................
4780 LBS
Condition:
Came from a tool room up at Alcoa Aluminum.
Appears be in Excellent Condition!
