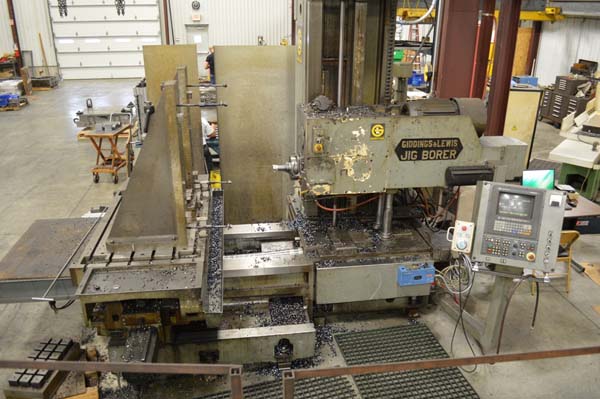

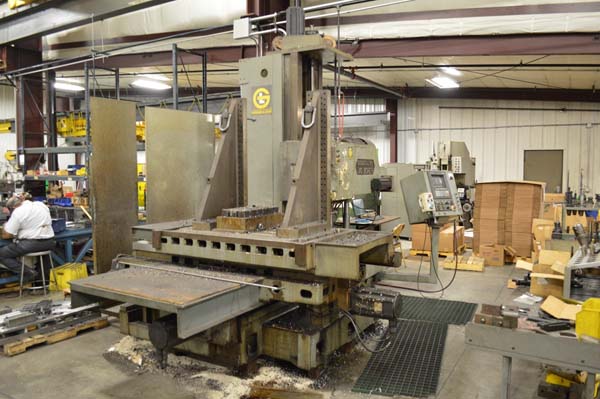

4" GIDDINGS & LEWIS CNC TABLE TYPE HORIZONTAL BORING MILL
                           Model 70-4JE, Rebuilt and Retrofit 1995
                                             Stock # K14464

 EQUIPPED WITH:

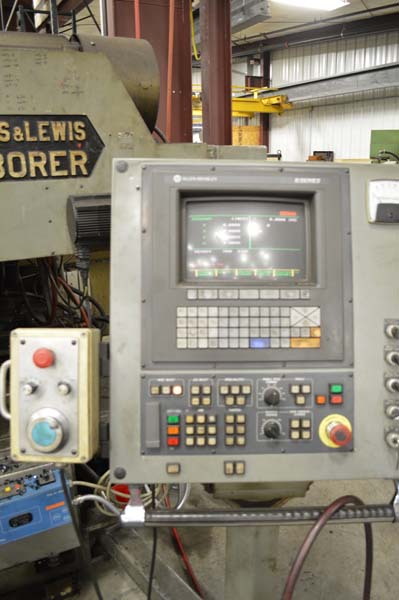

 Allen Bradley Series 9 CNC Control, 3 Axis Heavy Duty Ball Screws, Linear
Feedback Scales, Programmed Variable Speed Spindle, Outboard Saddle
Support and Outrigger on Each Side of Table, Coolant System.

 CATALOGUE SPECIFICATIONS:

 Spindle Diameter................................... 4."

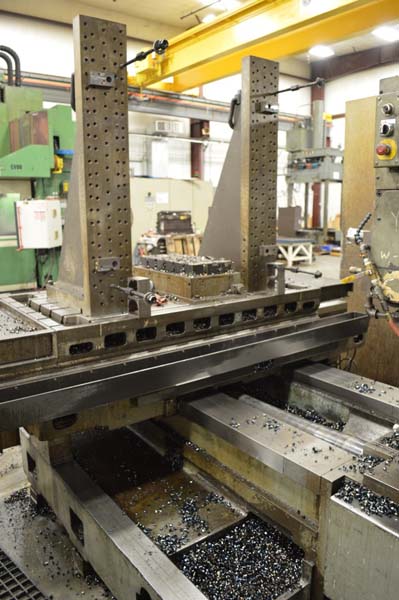

Table Size......................................... 36" x 62"
Table Load Capacity................................ 6,500 LBS
Table Cross Travel (X-Axis)........................ 48"
Spindle-Head Vertical Travel (Y-Axis).............. 48"
Spindle (Quill) Travel (Z-Axis).................... 15"
Saddle Longitudinal Travel (W-Axis)................ 31"
Spindle Taper...................................... #50
Spindle Horsepower................................. 25 HP
Spindle Speeds..................................... 7 to 1300 RPM
Approximate Machine Dimensions..................... 110" x 157"
Approximate Machine Height......................... 134"
Approximate Machine Weight......................... 34,000 LBS

 CONDITION:  Appears to be in Excellent Condition !
