SUPERMAX MAX-8 CNC Vertical Machining Center

Stock Number K14536

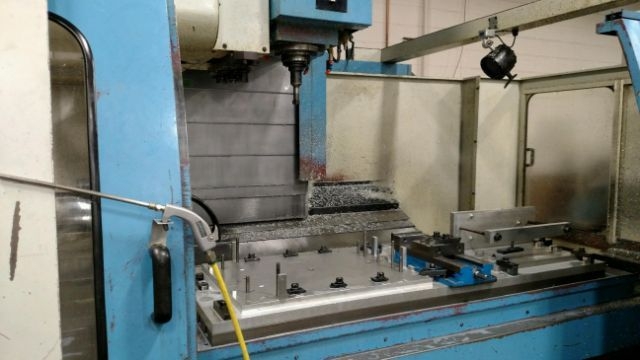

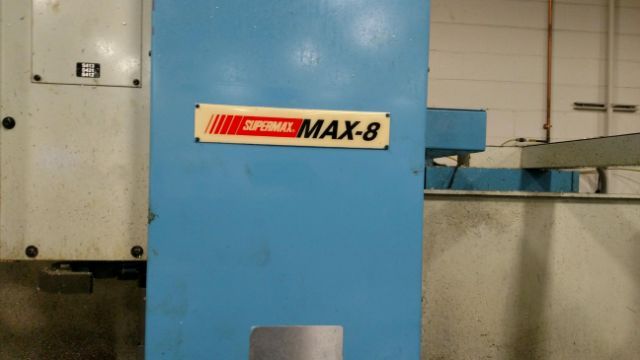

ACTUAL PHOTOS

 SUPERMAX MAX-8 CNC VERTICAL MACHINING CENTER
Model Max-8, New 1997, Stock #K14536


EQUIPPED WITH:

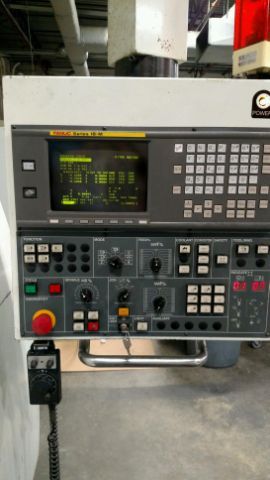

Fanuc 18M CNC Control, Thru the Spindle Coolant, Multiple Part Program
Storage, RS-232 Port, Heavy Duty CAT-50 Spindle, 40 Station Automatic
Tool Changer, Full Coolant Enclosure, Coolant and Chip System.


CATALOGUE SPECIFICATIONS:
X Travel (Longitudinal)............................... 65
Y Travel (Cross)...................................... 30"
Z Travel (Vertical)................................... 30"
Table Working Surface................................. 69.9"x29.9"
Spindle Horsepower.................................... 20 HP
Spindle Speeds........................................ 60-4000 RPM
Spindle Taper......................................... #50
Feed Rates............................................ 400 IPM
Rapid Traverse ....................................... 700 IPM
Tool Storage Capacity................................. 40
Approximate Dimensions................................ 168" x 118"
Approximate Height.................................... 119"
Approximate Weight.................................... 34,000 LBS

CONDITION: Machine Appears to be in Excellent Condition !
