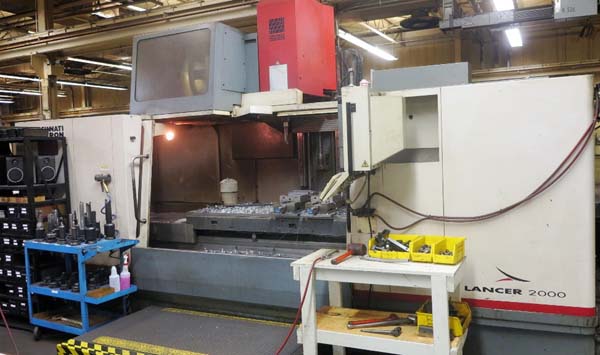

CINCINNATI LANCER-2000 CNC VERTICAL MACHINING CENTER
Model Lancer 2000, S/N 7052A0098-0023, New 1998
Stock# K14616

EQUIPPED WITH:

Siemens Acramatic 2100 CNC Control, Conversational Programming,
Linear Feedback Scales, 3-1/2" Floppy Disk Drive Option, Hand
Held Pendant, Fanuc 0 Translation, Tool Setting Probe, RS232 Data
Line, Rugged CAT 50 Spindle, Thru the Spindle Coolant, 30 Station
Tool Changer, Chip Conveyor, Coolant System.

CATALOGUE SPECIFICATIONS:

Table Working Surface................................. 90" x 30"
Table Load Capacity................................... 6615 LBS
Longitudinal Travel (X-Axis).......................... 80"
Cross Travel (Y-Axis)................................. 30"
Vertical Travel (Z-Axis).............................. 30"
Rapid Traverse Rate (X & Y-Axis)...................... 945 IPM
Rapid Traverse Rate (Z-Axis).......................... 590 IPM
Tool Storage Capacity................................. 30
Spindle Horsepower.................................... 25 HP
Spindle Speed Range................................... 40-6000 RPM
Spindle Taper......................................... #50 CAT
Electrics............................................. 460/3/60
Approximate Machine Dimensions........................ 212"x138"
Approximate Machine Height............................ 142"
Approximate Machine Weight............................ 31,000 LBS


CONDITION: Machine appears to be in Excellent Condition !
