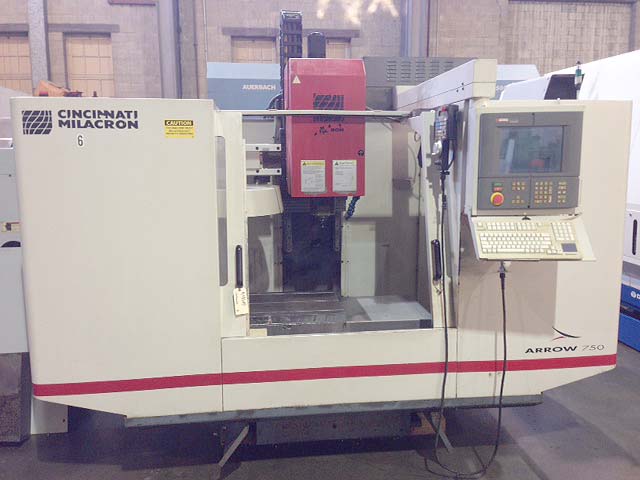

CINCINNATI ARROW-750 CNC VERTICAL MACHINING CENTER
S/N 7043A0B-98-1230, New 1998
Stock# K14618

EQUIPPED WITH:

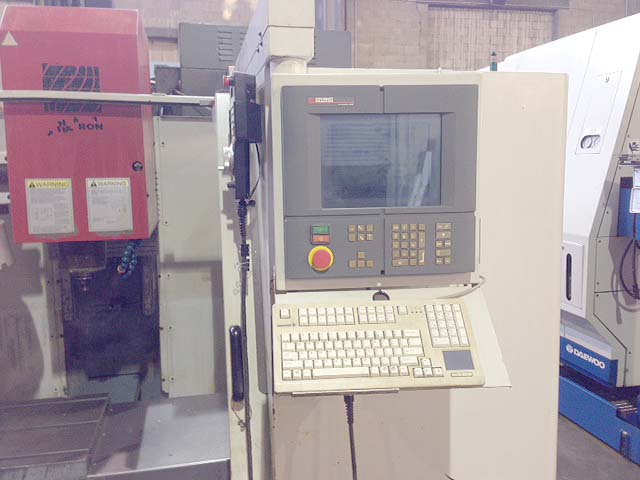

Acramatic 2100 PC Based CNC Control, RAP Conversational Programming,

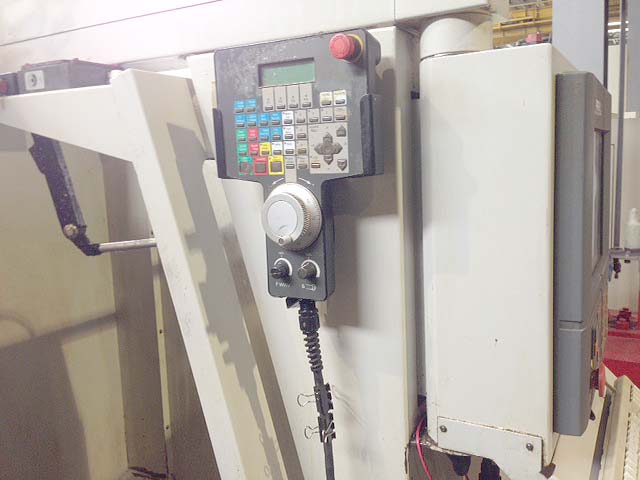

Handheld Pendent Control, 21 Station Automatic Tool Changer, Automatic
Tool Recovery, Tool Cycle Time Monitor, Migrating Tools, Spindle Load
Meter, Fanuc 0 Program Translation, Ethernet Port, RS-232 Port,
Advanced Programming Package A, MC Extended Cycles, Max Program
Storage, Floppy Disk Drive, Color Graphics, Thermal Compensation, Rigid
Tapping, 21 Station Automatic Tool Changer, Full Coolant Enclosure, and
Coolant System.

CATALOGUE SPECIFICATIONS:

X Travel (Longitudinal)............................... 30"
Y Travel (Cross)...................................... 20"
Z Travel (Vertical)................................... 20"

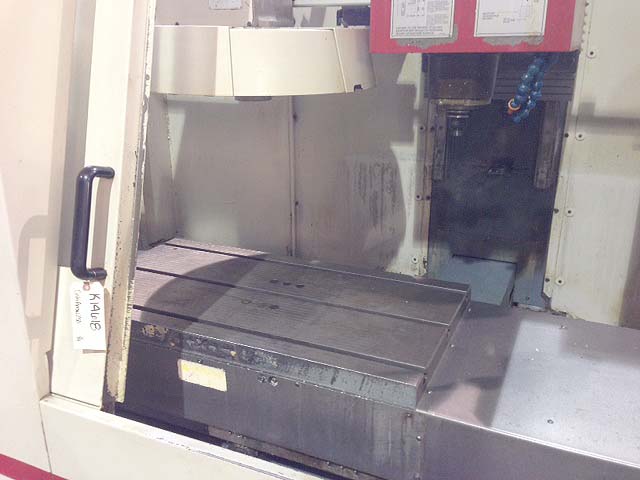

Table Working Surface................................. 37.5"x20.5"
Table Work Load Capacity.............................. 1000 LBS
Spindle Horsepower.................................... 10 HP
Spindle Speeds........................................ 30-6000 RPM
Spindle Taper......................................... #40 Cat
Feed Rates, X & Y..................................... 0.1 to 472 IPM
Feed Rate, Z.......................................... 0.1 to 393 IPM
Rapid Traverse X & Y.................................. 787 IPM
Rapid Traverse Z...................................... 787 IPM
Tool Storage Capacity................................. 21
Approximate Dimensions................................ 110" x 87"
Approximate Height.................................... 106"
Approximate Weight.................................... 7,276 LBS


CONDITION: Machine Appears to be in Excellent Condition !
