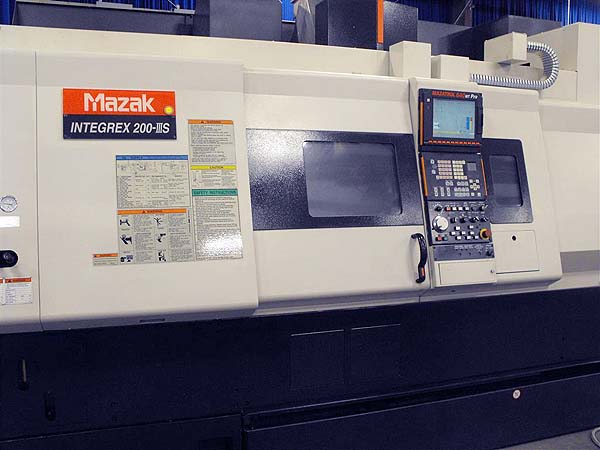

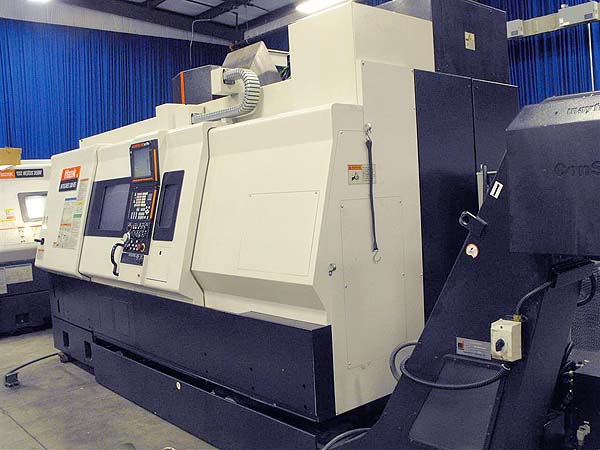

MAZAK INTEGREX 200 IIISY MULTI-FUNCTION CNC TURNING
CENTER
Model Integrex 200iiiSY, New 2004, Stock# K14667
EQUIPPED WITH:
Fusion 640MT Pro Control
15kg/213psi thru Coolant / Flood Coolant Simul-Flowable OPTION
Sub Spindle-Full C Axis 0.0001 degree increments OPTION
40 ATC KM-63 OPTION
Coolant Temperature Control System
Shower Coolant
2.7kg (318psi), 60L (16gal)
Concept Side Chip Conveyor
Auto Power on/off and warm up
STANDARD SPECIFICATIONS:

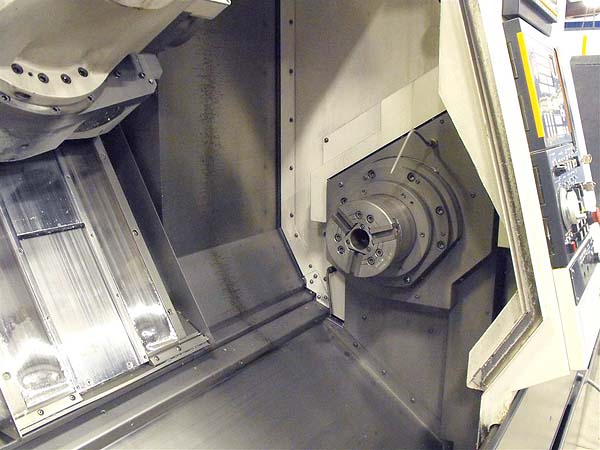

Standard Chuck Dia. Main Spindle (L): 8"

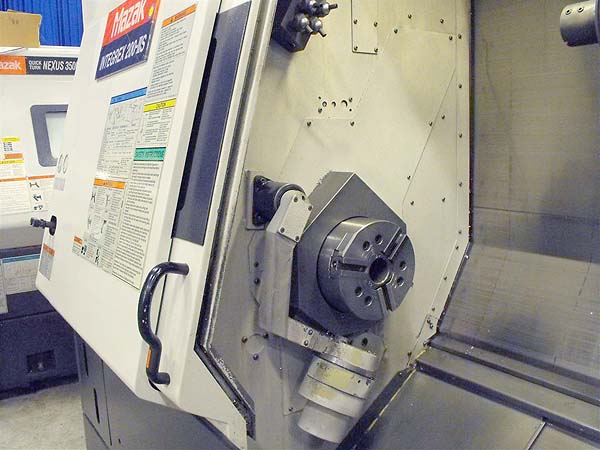

Standard Chuck Dia. Second Spindle (R): 6"
Maximum Swing: 26"
Maximum Swing over Carriage: 19.7" -26"
Maximum Cutting Diameter: Chucking: 26"
Maximum Cutting Length: 40"
Maximum Distance Between
Standard Chuck Faces: 41.14"
MAIN SPINDLE SPECIFICATIONS (L):
Spindle Nose:A2-6
Spindle Bore: 2.99"
Maximum Bar Work: 2"
Spindle Speed/Ranges: 35 - 5000 RPM / 2
Spindle Index (Programmable): 0.0001 Degree
Spindle Horsepower (Cont./30 Mins.): 20/30 H.P. (A.C.)
Spindle Torque: 258.1 ft-lbs
SECOND SPINDLE SPECIFICATIONS (R)
Spindle Nose: A2-6
Spindle Bore: 2.99"
Maximum Bar Work: 2"x 34.6" deep from chuck face
Spindle Speed/Ranges: 35 - 5000 RPM / 2
Spindle Index (Programmable): 0.001 Degree
Spindle Horsepower (Cont./30 min): 20/25 HP (A.C.)

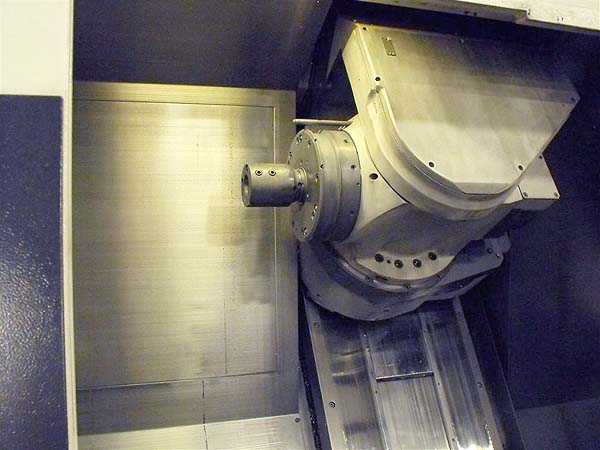

TURRET AND TOOLING SPECIFICATIONS:
Type of Turret: 1 Position, w/ATC
Magazine Capacity: 40 Tools OPTION
ATC Tool Shank: Mazak KM63
Rotary Tool Spindle Speed/Ranges: 12,000 RPM / 1
Rotary Tool Spindle Horsepower (20% ED). 20 H.P. (A.C.)
AXIS TRAVELS:
B-Axis: 225 deg.(.0001 deg. increments)
Y-Axis: +/- 3.15"
X-Axis: 22.83"
Z-Axis: 41.1"
Second Headstock W-Axis: 41.34"
GENERAL SPECIFICATIONS:
Floor Space (WxL): 87.1" x 150.39"
Machine Height: 102.24"
Machine Weight: 21,340 lbs.
