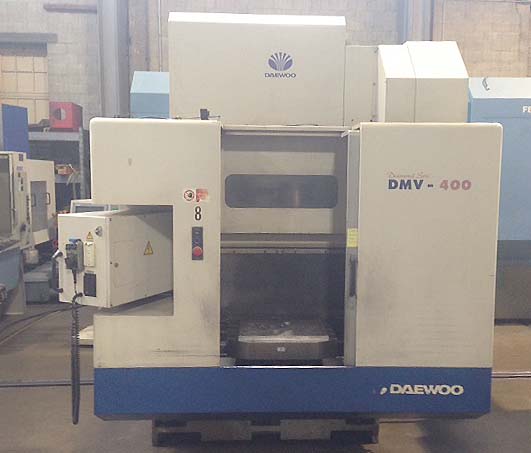

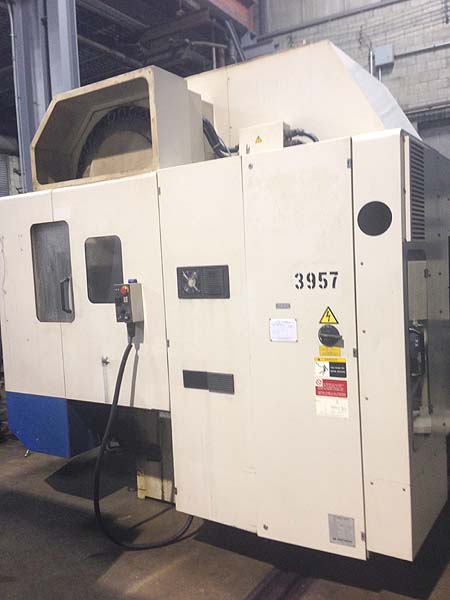

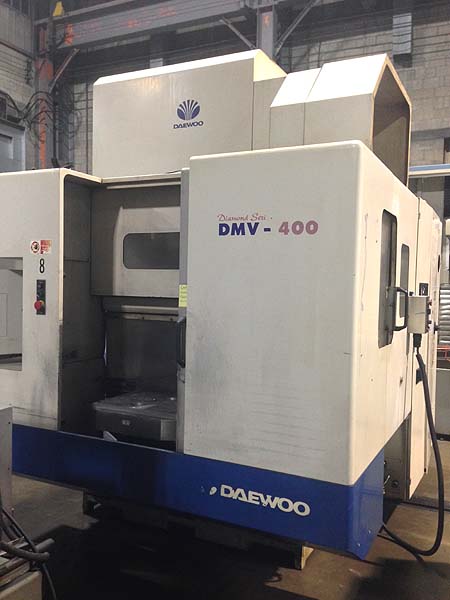

DAEWOO DMV-400 VERTICAL
MACHINING CENTER
Model DMV-400, S/N AV3S0905, New 2000
Stock #K14674
EQUIPPED
WITH:

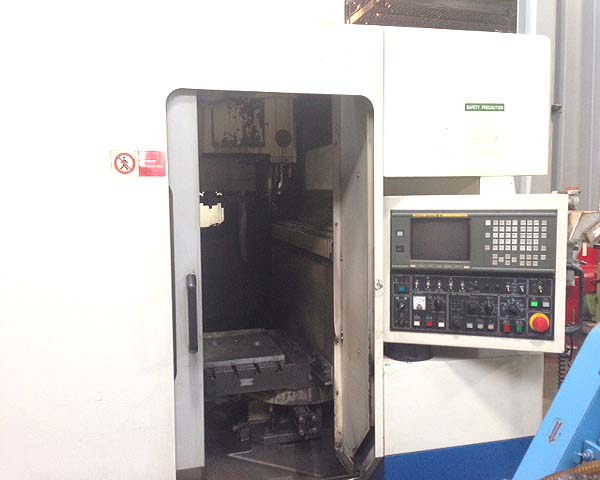

Fanuc 18M CNC w/ CRT, Remote Handwheel, (2) 21.5" x 25.5" Work Zones,

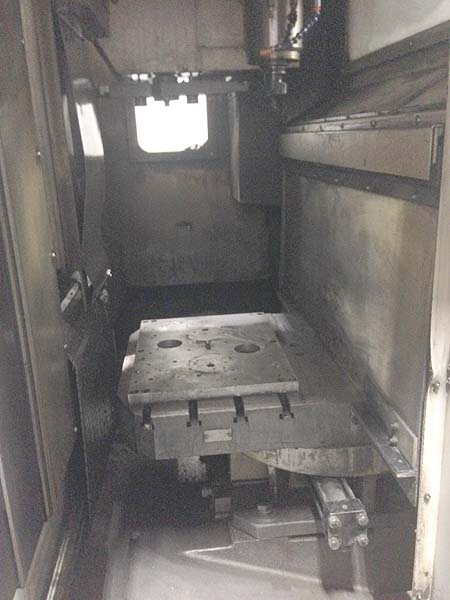

Automatic Work Changer, Thru the Spindle Coolant, 30 Station Automatic
Tool Changer, Cooljet Oil Filtration System, Kaukan Spindle Oil
Cooler,

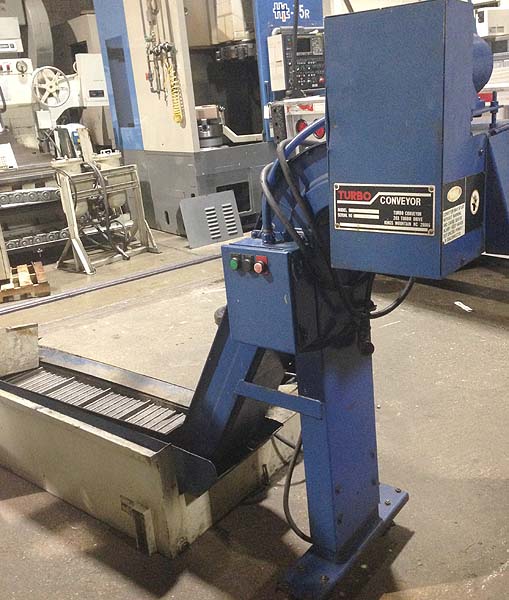

Full Coolant Enclosure, Turbo Chip Conveyor, Coolant System.
CATALOGUE SPECIFICATIONS:
Mounting Surface...................................... (2) 21.5"x25.5"
Workpiece Changer Setup................................ 0/180 Deg.
Table Load Capacity................................... 660 LBS
Table Top to Spindle Nose Minimum..................... 5.9"
Table Top to Spindle Nose Maximum..................... 28.3"
Longitudinal Travel (X-Axis).......................... 22"
Cross Travel (Y-Axis)................................. 15.7"
Vertical Travel (Z-Axis).............................. 22.4"
Rapid Traverse Rate All Axes.......................... 1181 IPM
Tool Storage Capacity................................. 30
Spindle Horsepower.................................... 15 HP
Spindle Speed Range................................... 20 - 10000 RPM
Spindle Taper......................................... CAT 40
Approximate Machine Dimensions........................ 124" x 110"
Approximate Machine Height............................ 116"
Approximate Machine Weight............................ 14,000 LBS
