MORI SEIKI MV-653 CNC VERTICAL MACHINING CENTER
Model MV-653/50, New 2000, S/N 53
Stock #K14675

EQUIPPED WITH:

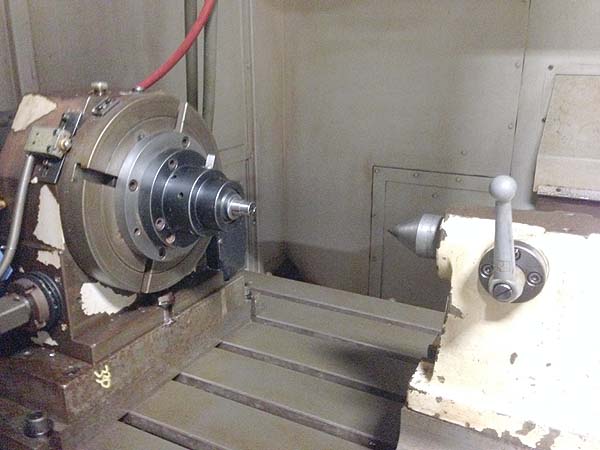

Mori MSC-501 Fanuc 18iM CNC Control, 4th Axis Interface with 10" Troyke
Rotary Table and Tailstock, Rigid/Solid Tapping, Background Edit, Multi
Part Program Storage, Thru the Spindle Coolant with Vega 2000 13 GPM
2000 PSI Coolant Unit, Heavy Duty 35 HP Cat-50 Spindle, 30 Station Automatic
Tool Changer, RS-232 Data Line, Full Coolant Enclosure, Chip
Conveyor, and Coolant System.


CATALOGUE SPECIFICATIONS:
X Travel (Longitudinal)............................... 60"
Y Travel (Cross)...................................... 25.6"
Z Travel (Vertical)................................... 25.6"
Table Working Surface................................. 67"x 26"
Table Work Load Capacity.............................. 6600 LBS
Spindle Nose to Table Surface......................... 8.7" - 35.4"
Spindle Horsepower.................................... 35 HP
Spindle Speeds........................................ 60-6000 RPM
Spindle Taper......................................... CAT 50
Cutting Feed Rates,................................... 0.1 to 400 IPM
Rapid Feed Rate....................................... 590 IPM
Tool Storage Capacity................................. 30
Approximate Dimensions................................ 165.6"x145.7"
Approximate Height.................................... 142"
Approximate Weight.................................... 35,000 LBS

CONDITION: Machine appears to be in Excellent Condition !
