OMARK PRECISION PERCUSSIVE STUD WELDER
Model MARK-4, S/N 9-66132, Stock# K14471
Omark 1.5 KVA Mark 4 Power Supply Adjustable .03
- .12 Farads, (2)

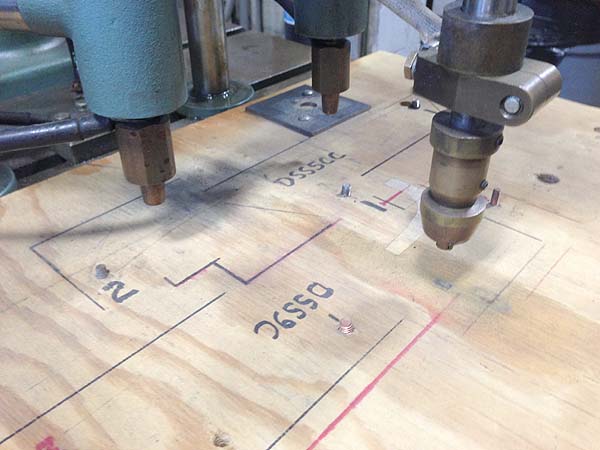

Precision Pneumatic Hold Downs, Base Mounted with Adjustable Arm,
Welding Head Will Precisely hold the stud during welding allowing
for
exact positioning of the stud. Adjustable Head Angle for welding
studs
at and precise angle to the surface or for wilding on concave or
convex
non-flat surfaces, Foot Pedal and Dual Palm Buttons
CATALOGUE SPECIFICATIONS:
Max Capacity
Stud....................................... 1/4"
Table Size.............................................. 24" x 30"
Max Distance from Welding Head to Table................. 11"
Number of Hold Downs.................................... 2
Angle of Head Adjustment................................ 360
Degree
Table Surface from Floor................................ 38-1/2"
Electrics .............................................. 110/1/60
Approximate Machine Dimension........................... 36" x 26"
x 60"
Approximate Machine Weight.............................. 800 LBS
Condition: Appears To Be in Excellent Condition !
