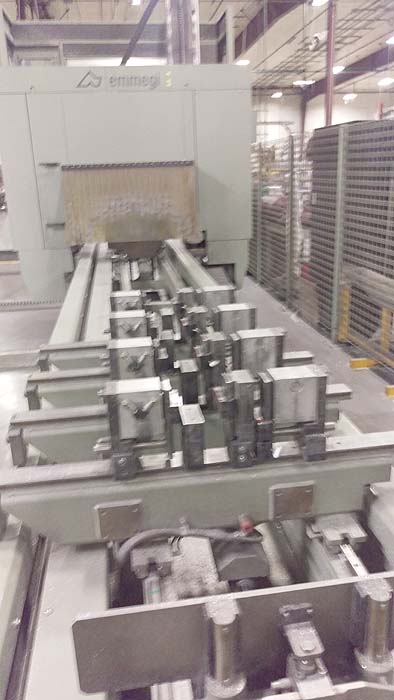

EMMEGI TRAVELING HEAD 4-AXIS CNC VERTICAL MACHINING CENTER
Model Diamant 10000/D 4-Axis, New 2013
Stock# K14693

EQUIPPED WITH:

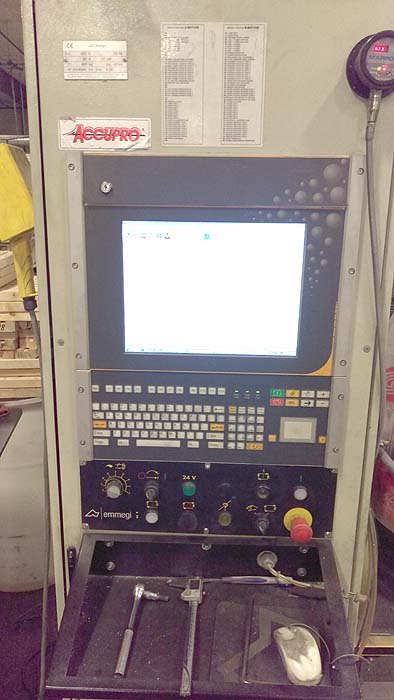

Emmegi PC-Based CNC Control w Cam Plus 3D Software, Hand-Held
Pendent MPG Control, Rigid/Solid Tapping, Multi Part Pogram Storage,

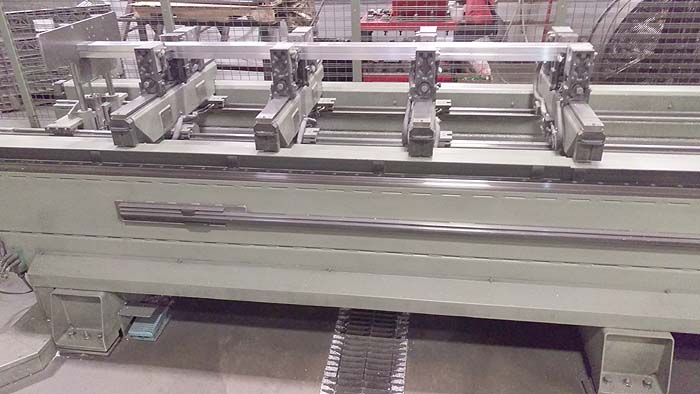

Electronic Profile Height Probe, Ethernet, RS-232 Port, (8) Double Work
Piece Clamping Vice, Two Way 90 Degree Angle Machining Head, 9 Station
Automatic Tool Changer, 10 HP 20,000 RPM Spindle, Coolant Enclosure,

CATALOGUE SPECIFICATIONS:

Max Part Size Working Capacity.................... 25.9" x 14.9" X 388"
Longitudinal Travel (X-Axis)...................... 393"
Cross Travel (Y-Axis)............................. 47.25"
Vertical Travel (Z-Axis).......................... 35.4"
Spindle Rotation (A-Axis)......................... 0 - 180 Degree
Rapid Traverse Rate (X-Axis)...................... 3100 IPM
Rapid Traverse Rate (Z & Y-Axis).................. 2520 IPM
Tool Storage Capacity............................. 9
Spindle Horsepower................................ 10 HP
Spindle Speed Range............................... 500- 20,000 RPM
Spindle Taper..................................... HSK 63F
Electrics......................................... 460/3/60
Approximate Machine Dimensions.................... 513" x 96"
Approximate Machine Height........................ 89"
Approximate Machine Weight........................ 17,600 LBS

CONDITION: Machine appears to be in Excellent Condition !
