5" CINCINNATI GILBERT CNC FLOOR TYPE HORIZONTAL BORING MILL
Model "J", Rebuilt and Retrofit 1997, Stock # K14697
EQUIPPED WITH:

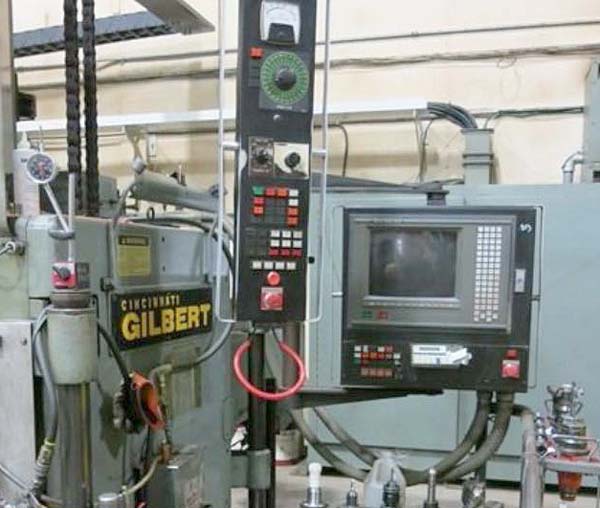

Fanuc 15M CNC Control, Fanuc Servo Motors and Drives, Multiple
Part Program Storage, RS-232 Port, Pendent Mounted MPG, Heavy
Duty 30 HP 50 Taper Spindle, 60" x 350" T-Slotted Floor Plate,
Chip Conveyor and Coolant System.
CATALOGUE SPECIFICATIONS:
Spindle Diameter................................... 5-3/8" Bar
Table Longitudinal Travel (X-Axis)................. 372"
Spindle-Head Vertical Travel (Y-Axis).............. 72"
Spindle Travel (Z-Axis)............................ 36"
Floor Plate Size................................... 350" x 60"
Spindle Taper...................................... 50 NMTB
Spindle Horsepower................................. 30 HP
Spindle Speeds .................................... 3500 RPM
Spindle Feeds ..................................... .1 to 400 IPM
Milling Feeds (X-Y-Z).............................. .1 to 400 IPM
Electrics (Wired 460).............................. 460/3/60
Approximate Floor Space Required................... 464" x 187"
Approximate Machine Height......................... 206"
Approximate Machine Weight......................... 104,000 LBS
CONDITION: Appears to be in Very Good Condition.
