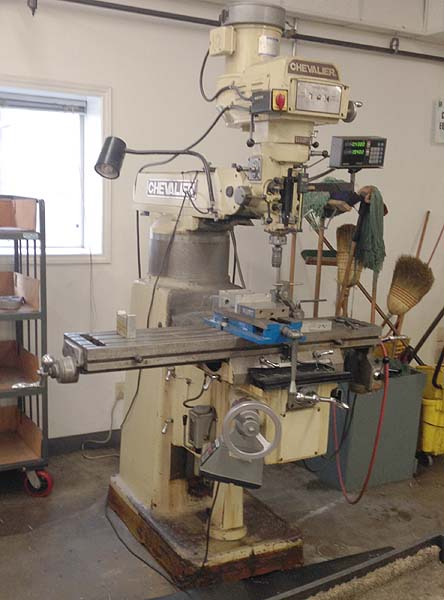

CHEVALIER 3VS VERTICAL MILL
Model 3VS, New 1992, Stock# K14705

EQUIPPED WITH:

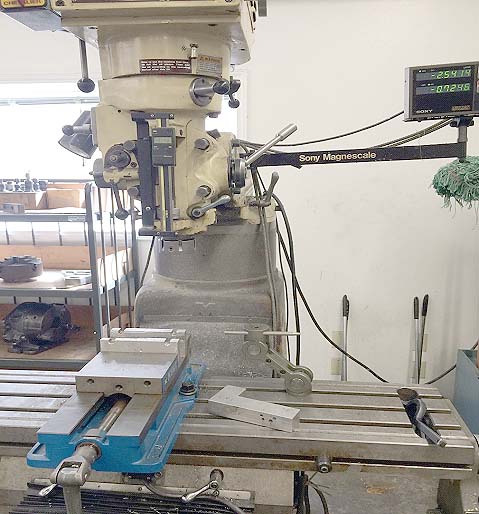

Sony 2-Axis Digital Readout on table, Quill Readout on Head,
Power Table Feed for X, Power Feed on Table Elevation,
Power Feed Power Quill Feed, 3 HP Variable Speed Spindle,
30 Taper Quick Switch Spindle, Knee Lock, 6" Riser, Swivel Type Overarm,
One Shot Lube System, Work Light.


SPECIFICATIONS:
Table Dimensions (Overall, W x L)........................ 10" x 50"
Longitudinal Table Travel Power Feed (X-Axis)............ 30-3/4"
Cross Saddle Travel (Y-Axis)............................. 15-3/8"
Vertical Knee Travel (W-Axis)............................ 15"
Vertical Quill Travel (Z-Axis)........................... 5"
Ram Travel............................................... 18"
Spindle Taper............................................ 30 Taper
Spindle Speeds........................................... 80-4300 RPM
Quill Feeds.............................................. .0015.003.006

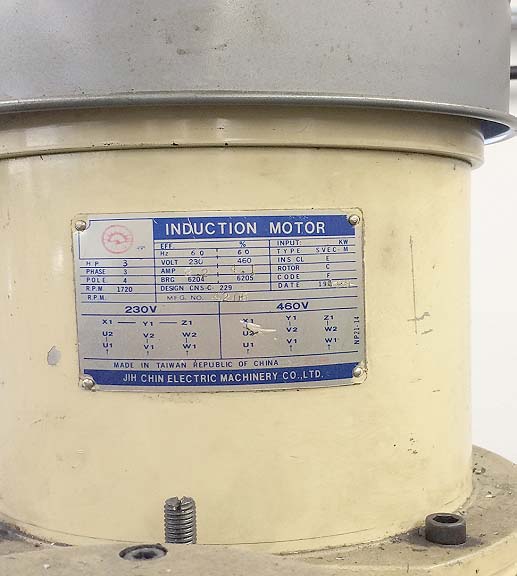

Motor (Spindle).......................................... 3 HP
Electrics................................................ 220/440/3/60
Approximate Machine Dimensions........................... 102" x 78"
Approximate Machine Height............................... 80"
Approximate Machine Weight............................... 3500 lbs.


Condition: Machine Appears to be in Very Good Condition!
