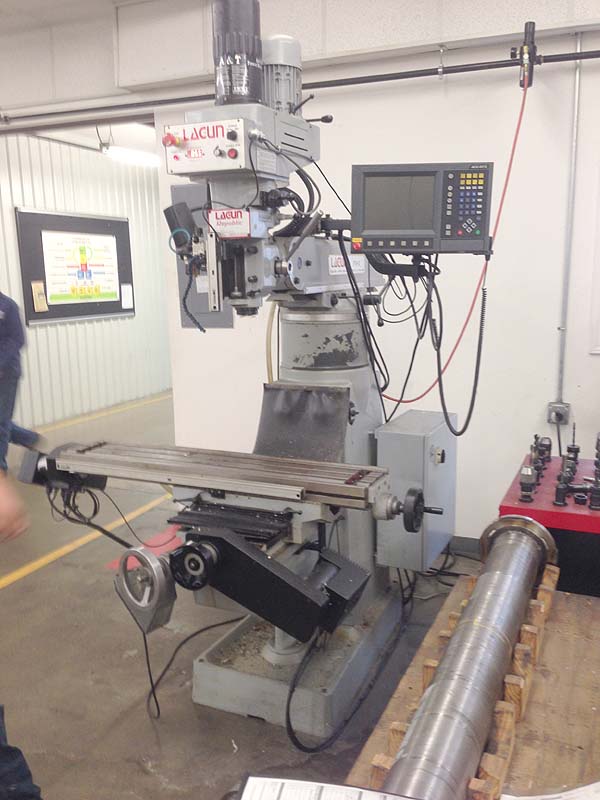

EQUIPPED WITH:
Acu-Rite MillPWR 2-Axis CNC Control, 3-Axis Digital Read-out,
Conversational
Programming, Tool Library and Offsets, CNC Sevro Table Feed for X
and Y, Quill Feed, Power Feed On Knee Travel, 5 HP

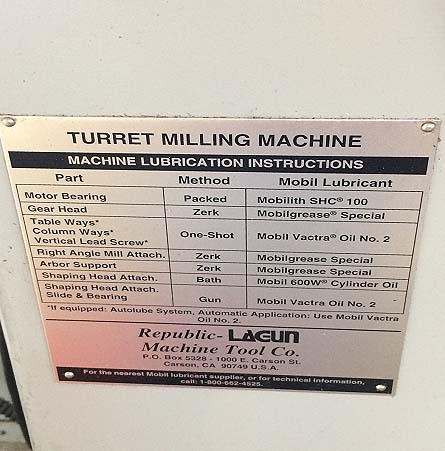

Variable Speed Spindle, Knee Lock, Swivel Type Overarm, One Shot
Lube System, Work Light.
SPECIFICATIONS:
Table Dimensions (Overall, W x L)........................ 10" x 55"
Longitudinal Table Travel Power Feed (X-Axis)............ 34.64"
Cross Saddle Travel (Y-Axis)............................. 15.98"
Vertical Knee Travel (W-Axis)............................ 15.8"
Vertical Quill Travel (Z-Axis)........................... 5"
Ram Travel............................................... 22"
Spindle Taper............................................ Taper
Spindle Speeds........................................... 55-4250
RPM
Motor (Spindle).......................................... 5 HP
Electrics................................................ 440/3/60
Approximate Machine Dimensions........................... 75" x 68"
Approximate Machine Height............................... 103"
Approximate Machine Weight............................... 2854 lbs.
