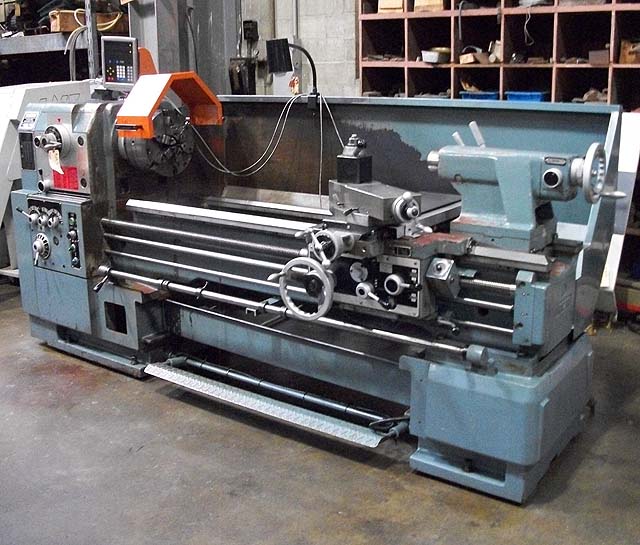

22" x 60" KINGSTON ENGINE LATHE
                    Model HD2260, New 2004, Stock# K14707

 EQUIPPED WITH:
Acu-Rite 2-Axis Digital Readouts, 4" Spindle Bore, 14" 4-Jaw Chuck
Rapid Traverse, Inch Metric Threading, Compound Cross Slide,
Gap Bed, Aloris Tool Post, Coolant System, Chip Pan.


CATALOGUE SPECIFICATIONS:
Swing over the bed................................. 22"
Swing over the cross slide......................... 13"
Swing in the Gap................................... 31-3/8"
Distance between centers........................... 60"
Cross Slide Travel................................. 15-3/4"
Spindle Nose....................................... D1-8
Spindle Bore....................................... 4"
Taper in Tailstock................................. MT-5
Spindle Speed (16)................................. 13-1200 RPM
Feed Range......................................... .0012-.039 IPO
Metric Threads (39)................................ .02-14 mm
Inch Threads   (45)................................ 2-72 TIP
Main Motor......................................... 10 HP
Approximate Machine Dimensions..................... 47" x 120"
Approximate Machine Weight......................... 5300 lbs
