CINCINNATI SERIES 30 CIM-X CHANGER HORIZONTAL MACHINING CENTER
Rebuilt and Retrofit by King Tool, Stock# K14729

EQUIPPED WITH:

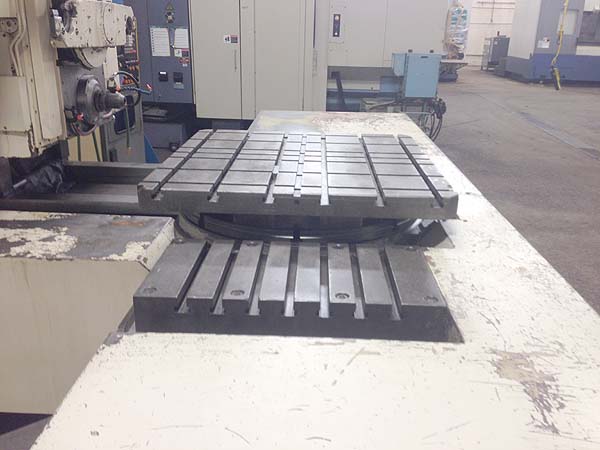

Fanuc GN 6 CNC Control, 24 Station Tool Changer, 32" x 32" Rotary Table,
Coolant Tank and Pump.

CATALOGUE SPECIFICATIONS:
Table Size........................................ 60" x 24"
Longitudinal X Travel............................. 50"
Vertical Y Travel................................. 30"
Cross Z Travel.................................... 28"
Maximum Rotary Table Load......................... 5000 LBS
Spindle to Table Top.............................. 0" to 30"
Spindle to Table Centerline....................... 6" to 34"
Spindle Drive..................................... 10 HP
Spindle Speed Range (21 Settings)................. 29-3000 RPM
Spindle Taper..................................... #45 CMI Taper
Feeds (Increments of .1).......................... .5 to 200 IPM
Rapid Traverse (X-Y-Z)............................ 200 IPM
Electrics (Dual Voltage).......................... 440/3/60
Floor Space....................................... 17'L-Rx13'F-Bx10'6"H
Approximate Weight................................ 30,000 LBS

Condition: Under-Power for Demo. Appears to be in very good condition !

PRICE: Cincinnati, Ohio Location.................... $ 9,950.
