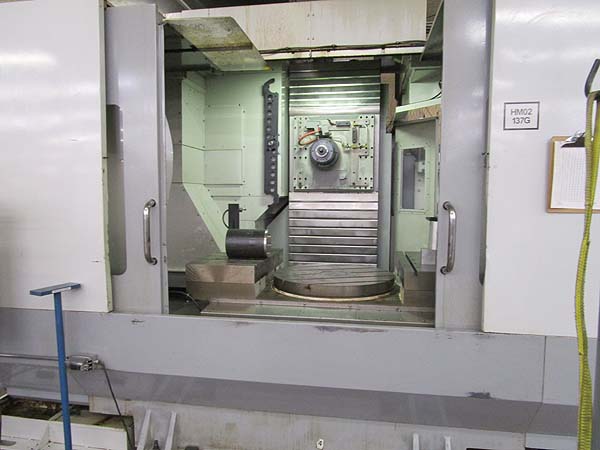

HAAS EC-1600-4X CNC HORIZONTAL MACHINING
CENTER
New 2/2007, Stock # K14933
EQUIPPED WITH:

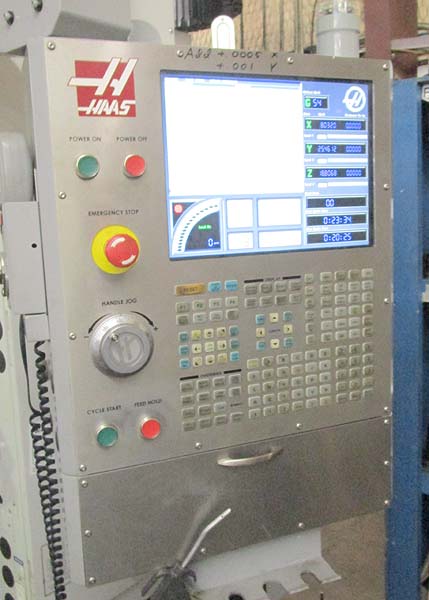

Haas CNC Control, Linear Feedback Scales, Helical Cutting, Graphics,
Synchronized Tapping, Full Contouring 30" "Built-in" Rotary Table,
Thru
the Spindle Coolant, 50 Station Automatic Tool Changer, Centralized
Auto
Lubricator, 2 Range Geared Spindle, Chip Conveyor, Chip & Coolant
Shield,
Coolant System.
CATALOGUE SPECIFICATIONS:
Table Size........................................... 64" x 36"
Built-in Rotary in Center of Standard Table.......... 30"
Longitudinal Table Travel (X-Axis)................... 64"
Vertical Travel (Y-Axis)............................. 40"
Head Cross Travel (Z-Axis)........................... 32"
Maximum Table Load................................... 10,000 LBS
Number of Index Positions............................ 360,000
Max. Feed Rate, All Axes............................. 500 IPM
Rapid Traverse, All Axes............................. 540 IPM
Spindle Horsepower................................... 30 HP
Spindle Speed Range.................................. 50-6000 RPM
Spindle Taper........................................ #50 CAT
Number of Tool Positions............................. 50
Approximate Machine Dimensions....................... 192" x 160"
Approximate Machine Height........................... 132"
Approximate Machine Weight........................... 30,000 LBS
CONDITION: This Machine Appears to be in Excellent Condition!
