Okuma Millac Big Vertical Machining Center
Model 1052vii, Serial # 176730, New 2014
Stock # K14981
Equipped With:

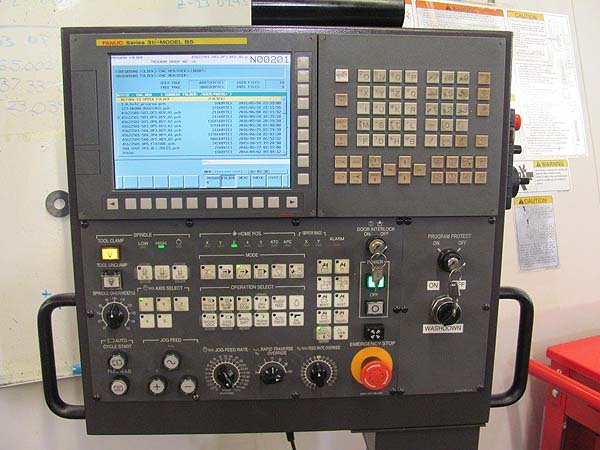

Fanuc Series 31i
Superb rigidity with X-, Y-, Z-axis box ways
Fast-rigid high-performance spindle
Thru Spindle Coolant 200 PSI
Specifications:
X-axis 120.08”
Y-axis 41.3”
Z-axis 31.5”

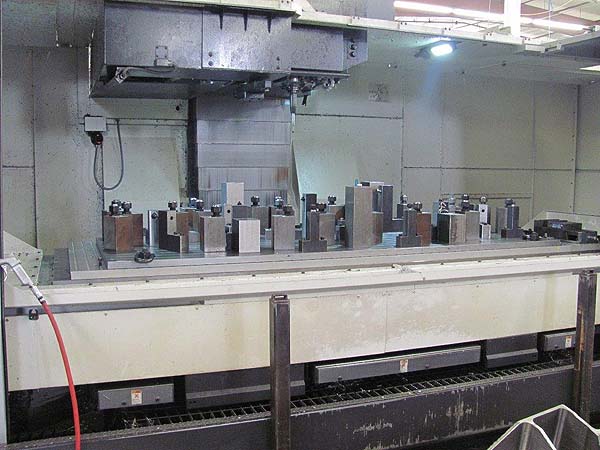

Table dimensions 125.99” x 41.3”
Max load on table 8,360 lbs.
Rapid feed rate X/Y/Z 630 IPM
Cutting Feed Rate X/Y/Z axes 0.039 – 197.0 IPM
Spindle bore taper Cat 50
Spindle speed range 6,000 RPM
Spindle drive motor 30 HP
Number of Tool Change Position 36 ATC
Maximum Tool Diameter 7.87"
Maximum Tool Length 15.75"
Maximum Tool Weight 44 lbs.
Tool To Tool Change Time 2.5 Secs.
Height 130”
Floor space 339” x 179”
Machine weight 59,000 lbs.
Condition: From Aerospace. Cutting Critical Components. Contract
Ending.
Appears to be in Excellent
Condition. Replacement Over 562k
