Haas VF-3YT/50 CNC Vertical Machining Center

Stock Number K15028

Haas VF-3YT/50 50 Taper CNC Vertical Machining Center For Sale, Used CNC Mill, CNC Vertical Machining Center

ACTUAL PHOTOS

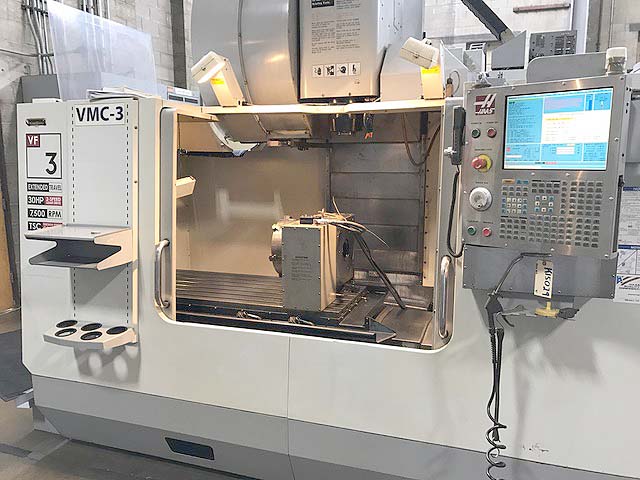

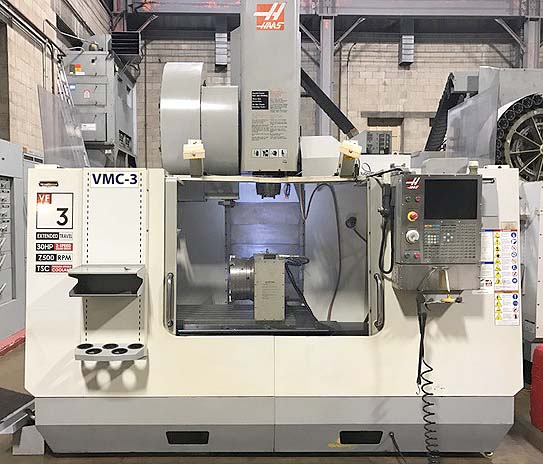

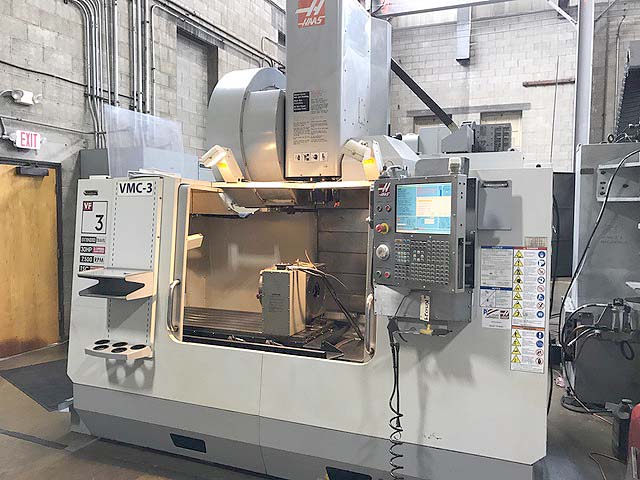

HAAS VF-3YT/50 CNC VERTICAL MACHINING CENTER
Model VF-3YT/50, S/N 1074559, New 7/2009
Stock# K15028

EQUIPPED WITH:

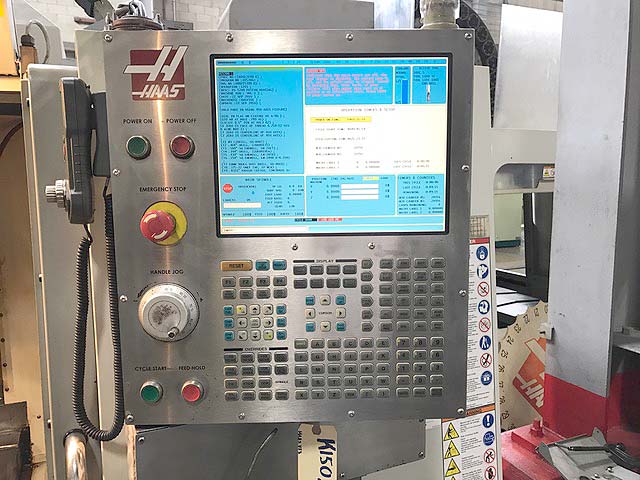

HAAS 32-Bit CNC Control w/CRT, Hand Held MPG Pendent, 12" Haas Full
Contouring 4th Axis Rotary Table With Tailstock, Remote Jog Handle,

Heavy Duty 30 HP Cat-50 Spindle Geared Spindle with 2 Range Gear Box,

Rotational and Scaling, Macros, Rigid Tapping, M19 Spindle Orientation,

30 Station Side Mount Automatic Tool Changer, Tool Probe, Arranged for Spindle Probe,

Programmable Coolant Nozzle, Metal Way Covers, Work Light, Chip Auger,

12" 6-Jaw Chuck, Thru Spindle and Flood Coolant System.

CATALOGUE SPECIFICATIONS:

Table Working Surface............................... 52" x 23"
Table Load Capacity................................. 4,000 LBS
Longitudinal Travel (X-Axis)........................ 40"
Cross Travel (Y-Axis)............................... 26"
Vertical Travel (Z-Axis)............................ 25"
Maximum Clearance Table Top to Spindle Nose......... 32.9"
Feed Rates, All Axes................................ 0 to 500 IPM
Rapid Traverse Rate, X-Axis......................... 710 IPM
Rapid Traverse Rate, Y and Z Axes................... 710 IPM
Tool Storage Capacity............................... 30
Spindle Horsepower.................................. 30 HP
Spindle Speeds Range................................ 0-7500 RPM
Spindle Taper....................................... No. 50 CAT
Approximate Machine Dimensions...................... 122" x 87"
Approximate Machine Height.......................... 123"
Approximate Machine Weight.......................... 16,500 LBS

CONDITION: Purchased from a High Tech Shop that Made Sensor Arrays.

This Machine Appears to be in Excellent Condition!
