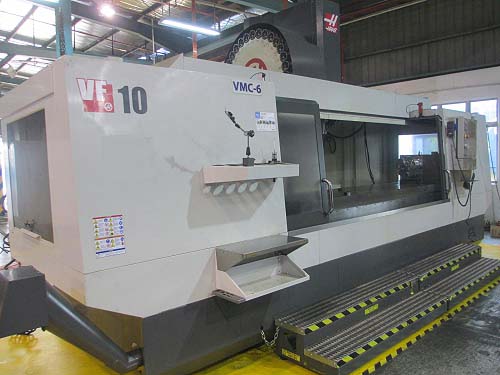

HAAS VF-10/50 CNC VERTICAL MACHINING CENTER

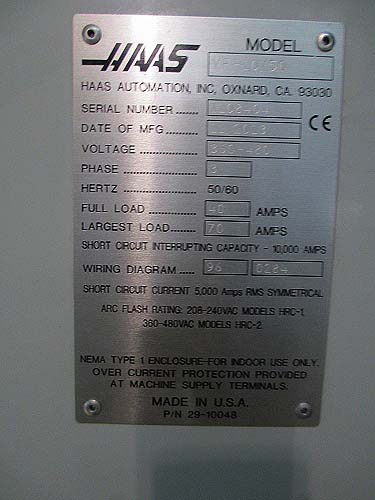

Model VF-10/50, S/N 1108404, New 11/2013 Installed 2/2014
Stock# K15040
EQUIPPED WITH:

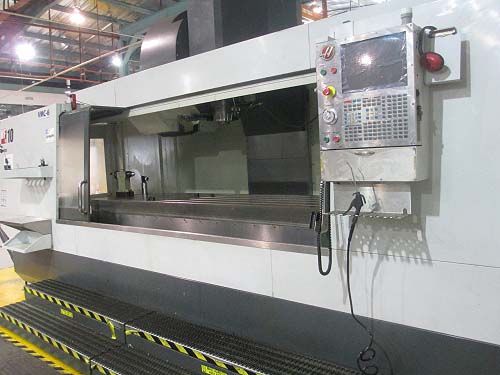

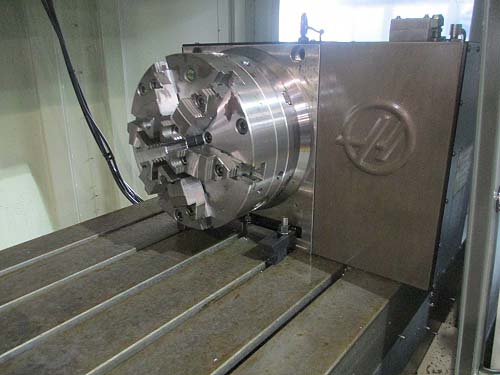

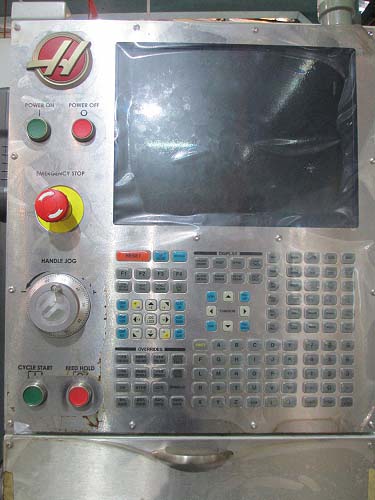

HAAS 32-Bit CNC Control w/CRT, Thru the Spindle Coolant, Haas 12"
Full
Contouring 4th Axis Rotary Table With Tailstock, Remote Jog Handle,

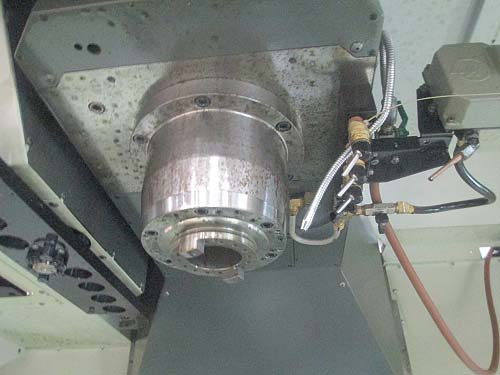

Heavy Duty 30 HP Cat-50 Spindle Geared Spindle with 2 Range Gear
Box,
30 Station Side Mount Automatic Tool Changer, Tool Probe, Arranged
for Spindle Probe,
Rotational & Scaling, Macros, Rigid Tapping, Hard Drive, M19 Spindle
Orientation,
Programmable Coolant Nozzle, Thru Spindle Coolant, Metal Way
Covers, Work Light,
Chip Auger, Coolant System.
CATALOGUE SPECIFICATIONS:

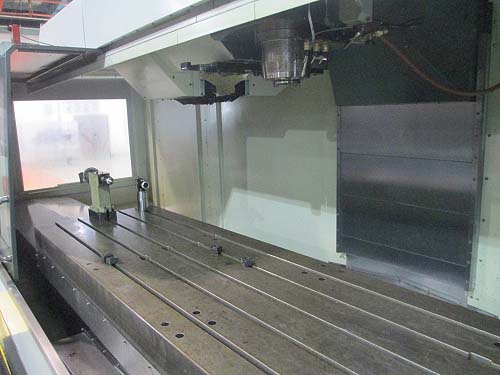

Table Working Surface............................... 120" x 28"
Table Load Capacity................................. 4,000 LBS
Longitudinal Travel (X-Axis)........................ 120"
Cross Travel (Y-Axis)............................... 32"
Vertical Travel (Z-Axis)............................ 30"
Maximum Clearance Table Top to Spindle Nose......... 35"
Feed Rates, All Axes................................ 0 to 500 IPM
Rapid Traverse Rate, X-Axis......................... 600 IPM
Rapid Traverse Rate, Y and Z Axes................... 600 IPM
Tool Storage Capacity............................... 30
Spindle Horsepower.................................. 30 HP
Spindle Speeds Range................................ 0-7500 RPM
Spindle Taper....................................... No. 50 CAT
Approximate Machine Dimensions...................... 260" x 101"
Approximate Machine Height.......................... 128"
Approximate Machine Weight.......................... 39,000 LBS
CONDITION: Purchased from a High Tech Shop that Made Sensor Arrays.
This Machine Appears to be in Excellent Condition!
