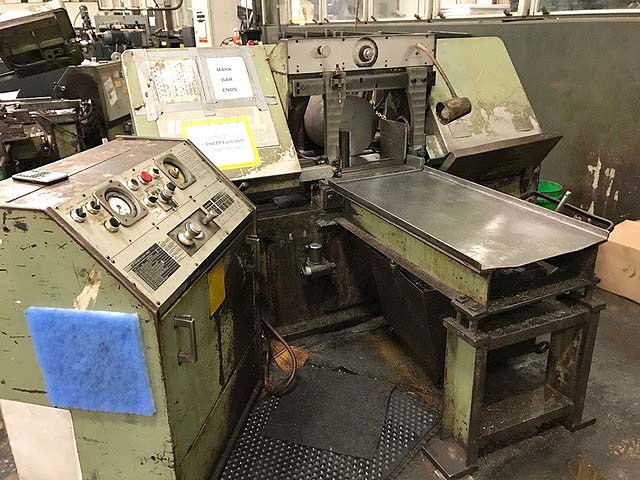

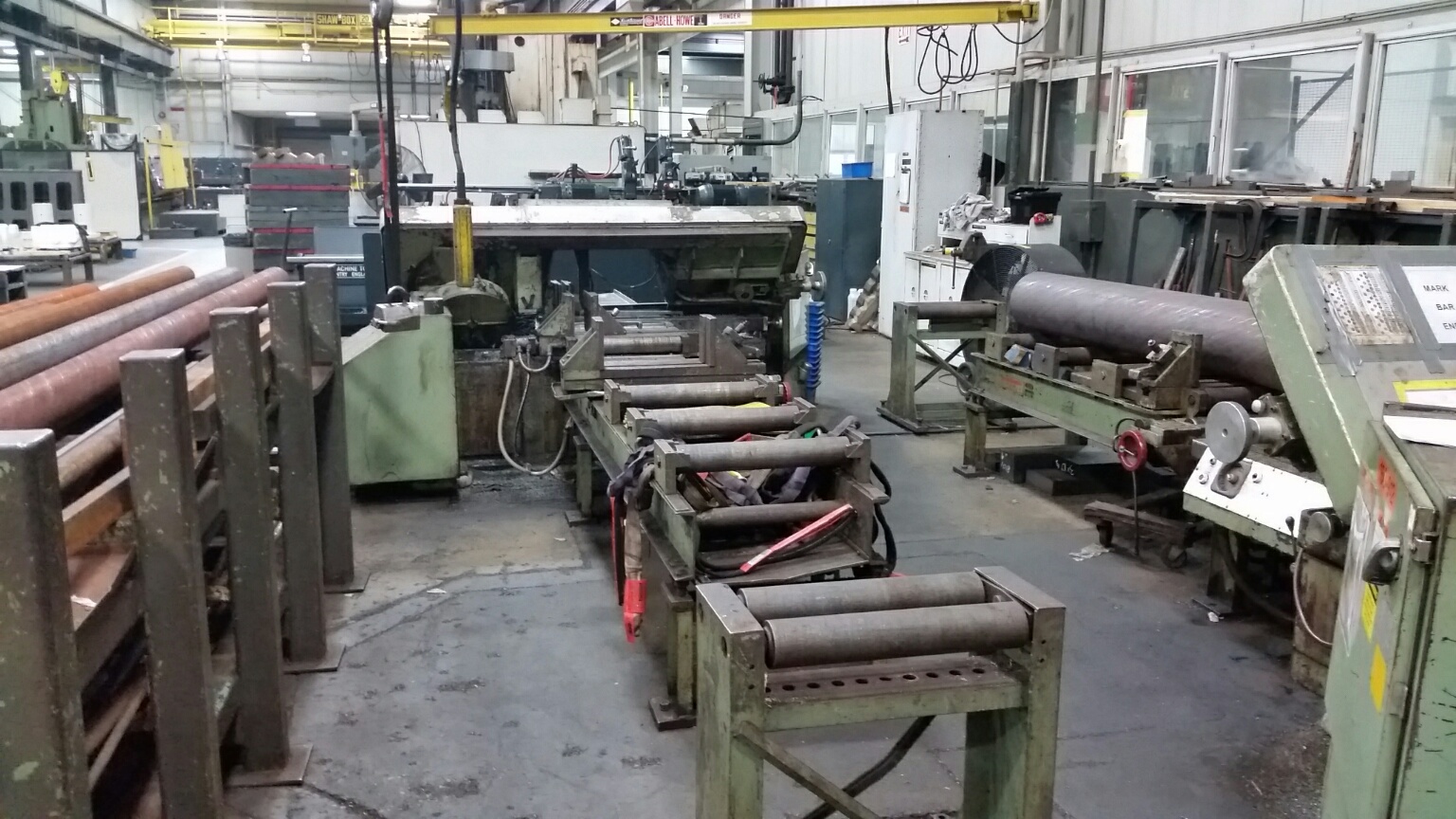

15" X 20" MARVEL 'HEAVY DUTY' AUTOMATIC HORIZONTAL BAND SAW
Model 15A, S/N E151561, New 1981, Stock# K15044 & K15043 (2) Available


EQUIPPED WITH:

Automatic Stock Infeed w/Programmable Lengths, 10' Automatic Conveyor
Feed, 40" 'Heavy Duty' Discharge Table, (2) Automatic Hydraulic Vises,
Micrometer Dial Setting, Quick Adj. Blade Guide Arms, Carbide Faced
Blade Guides, Work Height Selector, Hydraulic Down Feed Compensator
Controls, Coolant System.


CATALOGUE SPECIFICATIONS:

Nominal Capacity (H x W)................................ 15"x20"
Blade Speeds, Infinitely Variable....................... 55-400 FPM
Hydraulic Feed, Compensation, Infinitely Variable....... 0-200 Lbs.
Shuttle Type Automatic Bar Feed Length.................. 120"
Feed Stroke Multi-Cycle (per Cycle)..................... 0-24"
Maximum Bar Feed Load Capacity.......................... 7,000 Lbs.
Maximum Blade Width..................................... 1-1.4"
Maximum Blade Length.................................... 15'6"
Blade Drive Motor....................................... 5 HP
Hydraulic Motor......................................... 2 HP
Electrics............................................... 220/440/3/60
Approximate Dimensions.................................. 132" X 82"
Approximate Height...................................... 74"
Approximate Weight...................................... 7,500 Lbs.

CONDITION: Appears to be in Excellent Condition!
