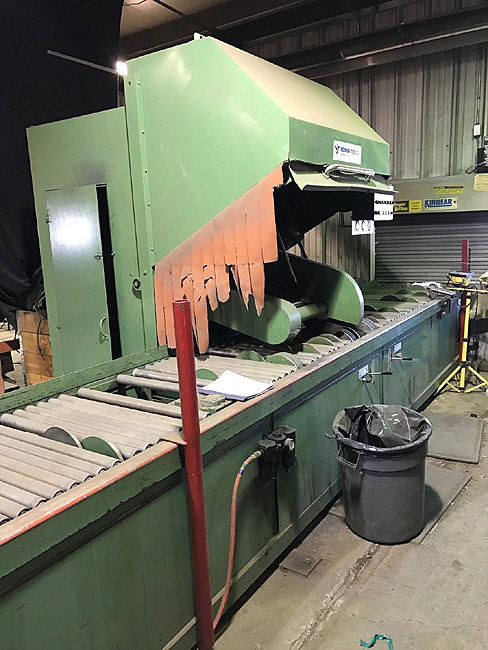

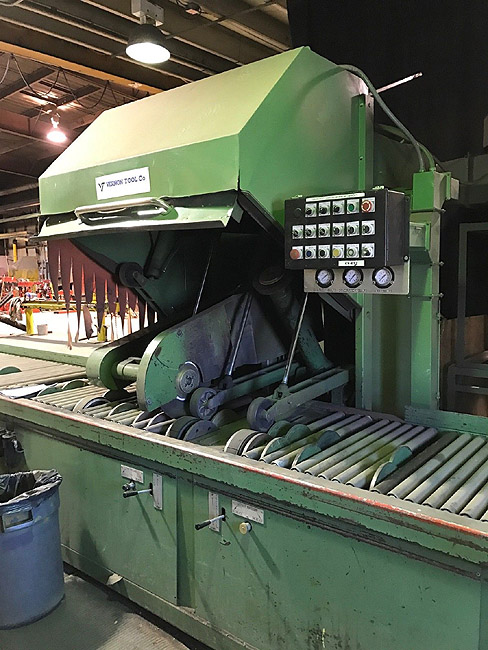

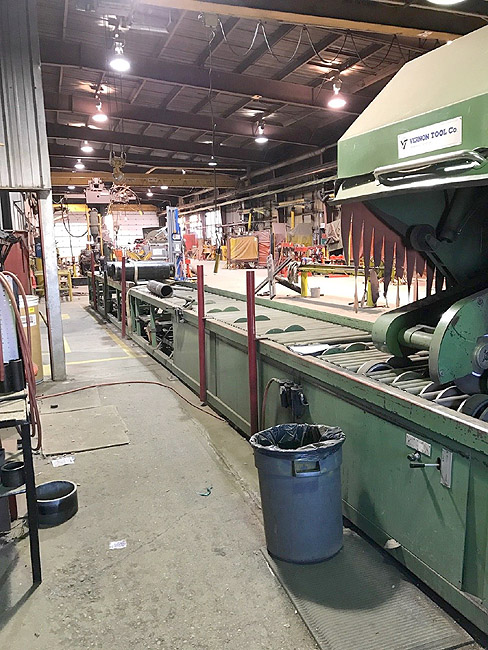

24? VERNON TOOL COMPANY ABRASIVE PIPE SAW

Model VAS-0124

Equipped with:

15 HP Abrasive Wheel, Hydraulic Operated Pipe Rollers, (3) Pneumatic

Pipe Hold Downs, Auxiliary Bevel Grinding Spindle, 40? Length Capacity, Cuts Pipe up to 24? Diameter.

Abrasive wheels can cut, bevel, and groove materials including carbon steel, black iron, ductile, alloy, stainless steel, ceramic, cement-lined, glass-lined and plastic pipe. Straight cuts and bevels with or without a land on diameters from 1" to 24" O.D.

Pipe Diameter . . . . . . . . . . . . . . . . . . . . . . . . 1"- 24" (25-610 mm)

O.D. Structural Shapes . . . . . . . . . . . . . . . . . . . .. . . Up to 6" (150 mm)

Bed Length (Std./Opt.) . . . . . . . . . . . . . . . . . . . 60?

Min.-Max. Cut Length (Std/Opt) . . . . . . . . .. . 1/2"- 40?

Min. Length w/ Beveled Ends . . . . . . . . . . .. . . 1/2"

Weight per Foot . . . . . . . . . . . . . . . . . . 150 lbs/ft (220 kg/m) to a maximum load of 3000 lbs. (1350 kg.)

Cutting Method . . . . . . . . . . . . . . . . . . . . . . . Abrasive Wheel

Max. Rotation Speed . . . . . . . . . . . . . . . . . . . 360 surface inches per minute

Average Material Removal . . . . . . . . . . . . . . . . 0.0328 cubic inches per second

Motors: Cutter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 HP A.C.

Motor Pipe Rotation Drive . . . . . . . . . . . . . . . . . . . . . 1 HP D.C.

Motor Hydraulic Power Unit . . . . . . . . . . . . . . . . . . . . 5 HP

Motor Dust Collection . . . . . . . . . . . . . . . . . . . . . . . . 7-1/2 HP A.C.

Electrical. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 460 VAC, 3Phase, 60 Hertz
