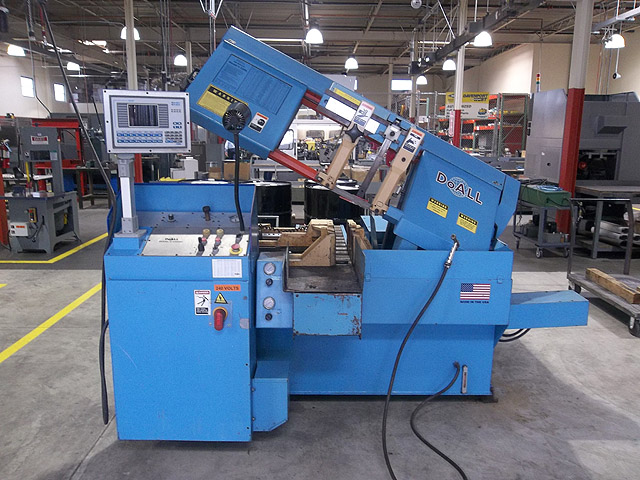

13" x 16" DOALL HEAVY DUTY HORIZONTAL
BAND SAW
Model 3300NC, S/N 521-98275, New 1999
Stock # K15168
EQUIPPED WITH:
UniOp Programmable Control, Automatic
Programmable Stock Feed,
Hydraulic Vises, Hydraulic Blade
Tension Adjustment, Carbide

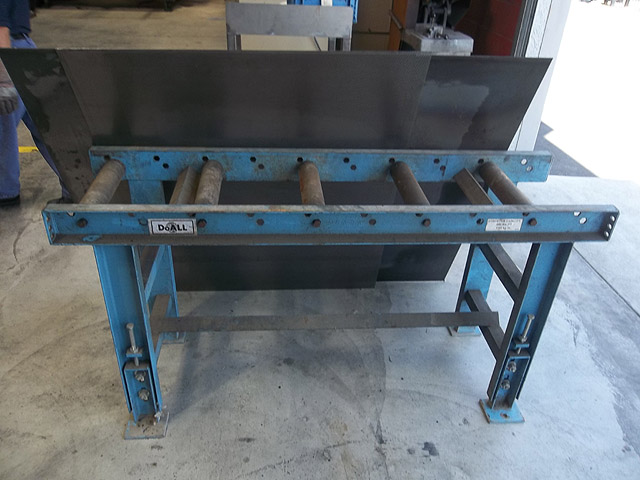

Blade Guides, 6' of Additional Roller
Conveyor, Variable Speed Blade,
Quick Adj. Blade Guide Arms, Work
Height Selector,
Variable Feed Force, Coolant.
CATALOGUE SPECIFICATIONS:
Flat Stock
Capacity.....................................
13" x 16"
Round Stock
Capacity....................................
13"
Blade Speeds, Infinitely
Variable....................... 50 -
500 FPM
Maximum Blade
Width.....................................
1-1/4"
Blade
Length............................................
181"
Blade Drive
Motor.......................................
5 HP
Hydraulic
Motor.........................................
2 HP
Electrics......................................................
220/440/3/60
Approximate Dimensions wo/Conveyor.......
86" X 96"
Approximate
Height......................................
66"
Approximate
Weight......................................
4,500 Lbs.
CONDITION: Machine is Available for
Inspection Under Power. Appears to
be in Very Good Condition!
