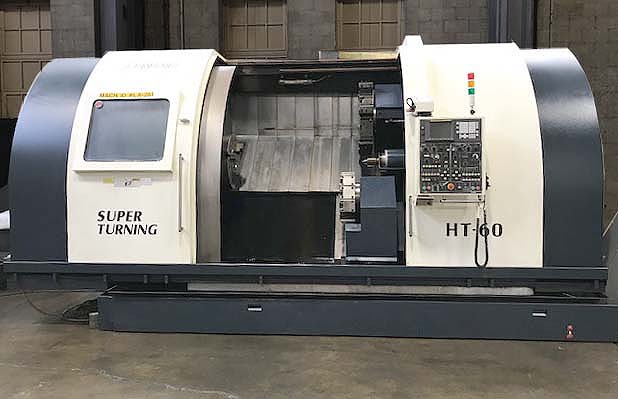

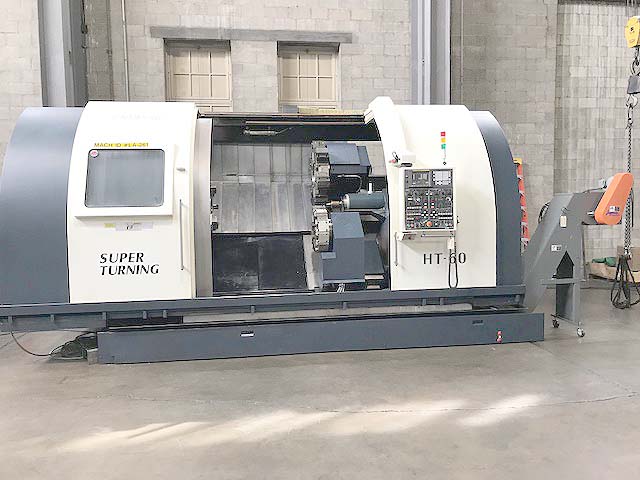

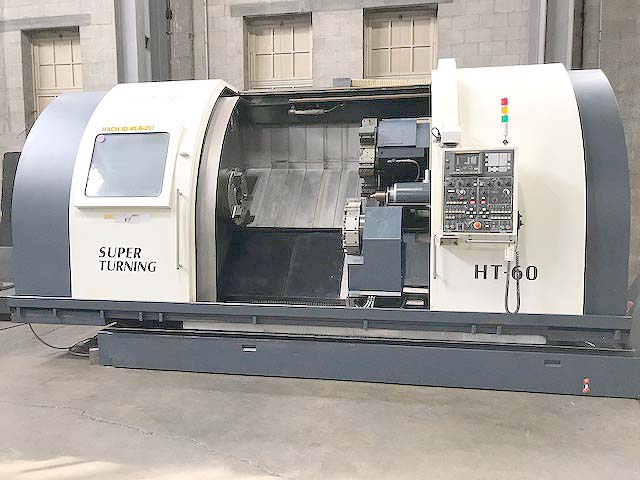

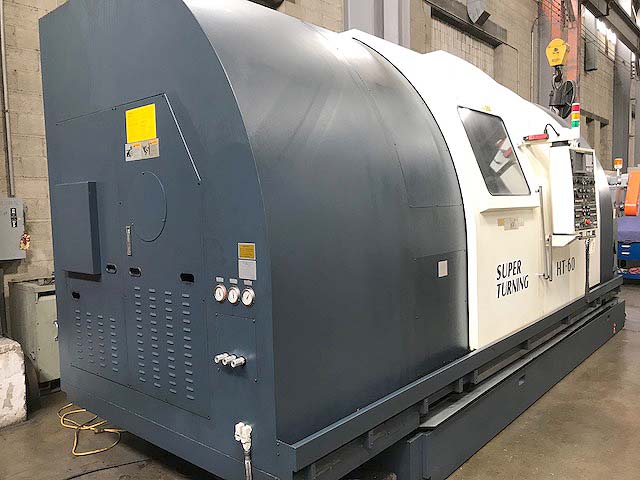

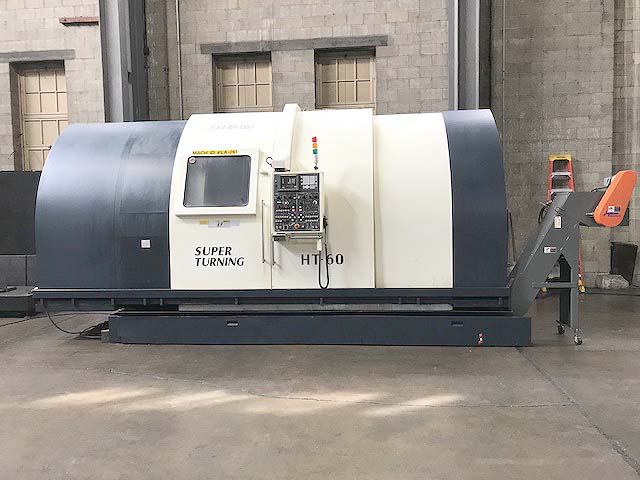

 JOHNFORD HT-60C CNC TURNING CENTER
Model HT-60C-2D, S/N TVB4005, New 9/2004
Stock # K15227

EQUIPPED WITH:

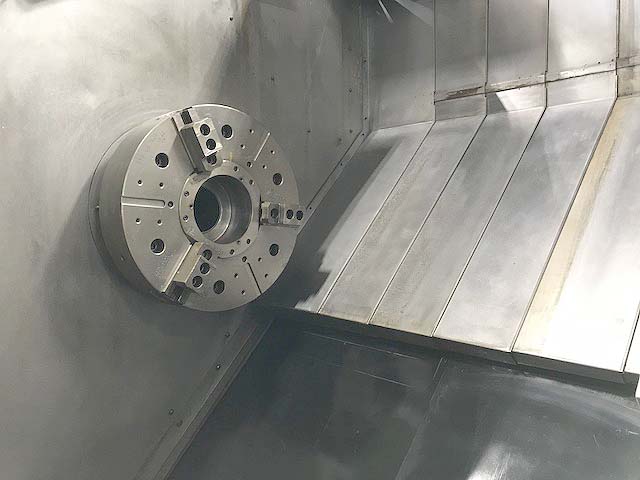

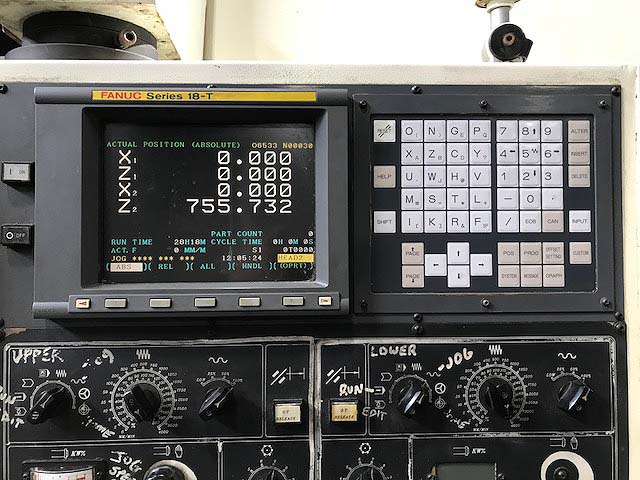

Fanuc 18T CNC Control, 24" 3-Jaw Power Chuck, RS-232

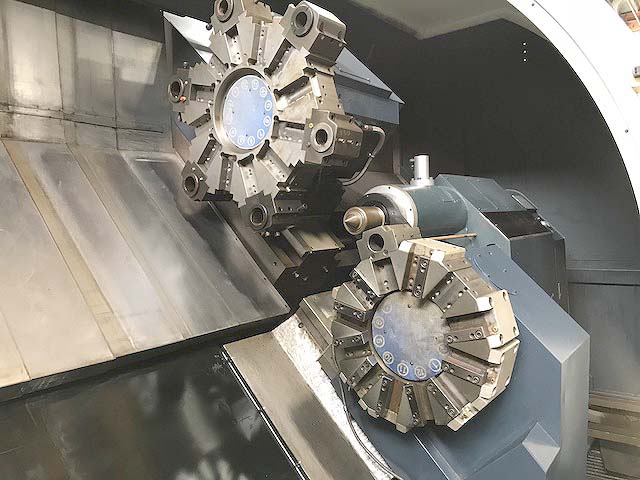

Port, 12 Position Upper Turret, 12 Position Lowwer Turret,
Massive Programmable Hydraulic Tailstock, Belt-Type Chip
Conveyor, Coolant System.


CATALOGUE SPECIFICATIONS:

Max Swing Over Bed...................................... 28.7"
Max Swing Over Closs Slide............................ 23.6
Max Distance Between Centers............................ 59"
Standard Chuck Size..................................... 24"
Cross Travel (X-Axis)(X2-Axis)........................ 12.6"
Longitudinal Travel (Z1-Axis,Z2-Axis).............. 59"
Rapid Traverse Rates.................................... 590 IPM
Number of Turrets....................................... 2
Tool Positions.......................................... 24 Total
Spindle Bore............................................ 6"
Bar Capacity............................................ 5.5"
Spindle Nose............................................ A2-15
Spindle Speed Range (Maximum)........................... 1200 RPM
Spindle Horsepower...................................... 37 HP
Approximate Dimension................................... 118" x 230"
Approximate Height...................................... 115"
Approximate Machine Weight.............................. 42,300 LBS


CONDITION: Machine Appears to be in Excellent Condition!
