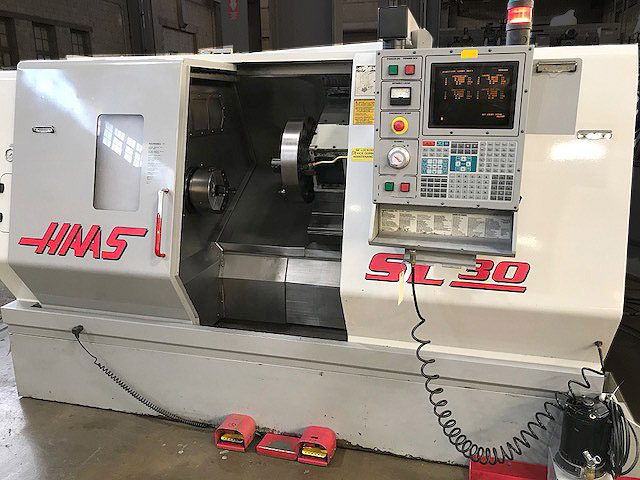

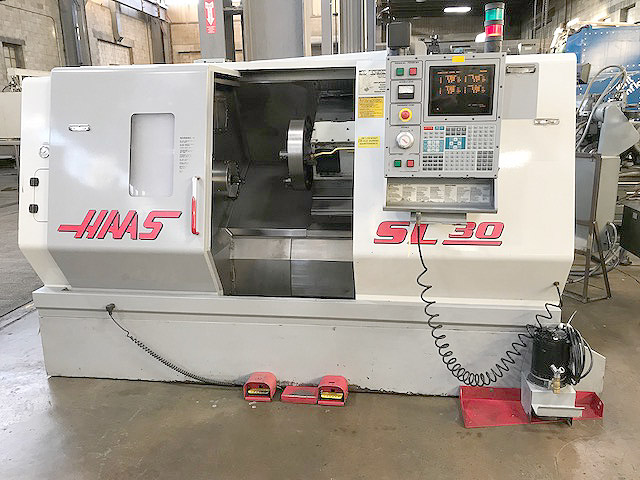

HAAS SL-30T CNC TURNING CENTER
                                                                  Model SL-30T, S/N 63489, New 11/2000
                                                                                       Stock # K15237

            EQUIPPED WITH:
            Haas 32 Bit CNC Control, Quick Code Programming, Extended Memory,
            Kitagawa B-210 10" 3-Jaw Power Chuck, RS-232 Port, Rigid Tap,
            3-1/2" Floppy Drive, 12 Position Turret, Programmable Hydraulic
            Tailstock, Coolant System.


            CATALOG SPECIFICATIONS:
            Max Swing Over Bed...................................... 30"
            Max Swing Over Carriage................................. 14.5"
            Max Machinable Center Distance.......................... 34"
            Max Distance Between Centers............................ 34"
            Standard Chuck Size..................................... 10"
            Cross Travel (X-Axis)................................... 14"
            Longitudinal Travel (Z-Axis)............................ 34"
            Rapid Traverse Rates.................................... 710 IPM
            Number of Turrets....................................... 1
            Tool Positions.......................................... 12 Total
            Spindle Bore............................................ 3.5"
            Bar Capacity............................................ 3"
            Spindle Nose............................................ A2-6
            Spindle Speed Range (Maximum)........................... 3400 RPM
            Spindle Horsepower...................................... 30 HP
            Approximate Dimension................................... 126" x 83"
            Approximate Height...................................... 74"
            Approximate Machine Weight.............................. 16,000 LBS

            CONDITION:  Machine Appears to be in Very Good Condition!
