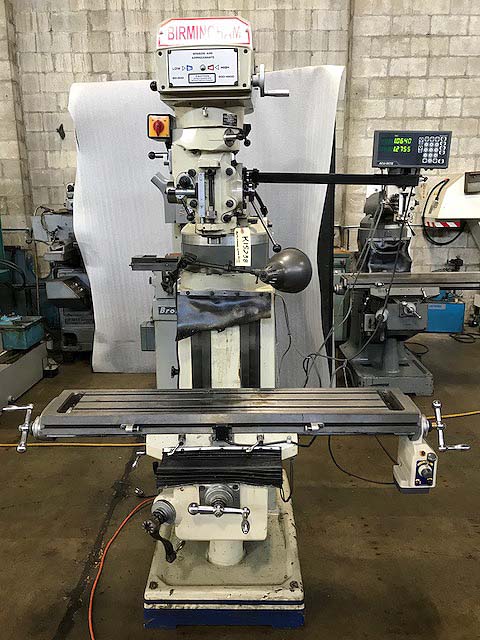

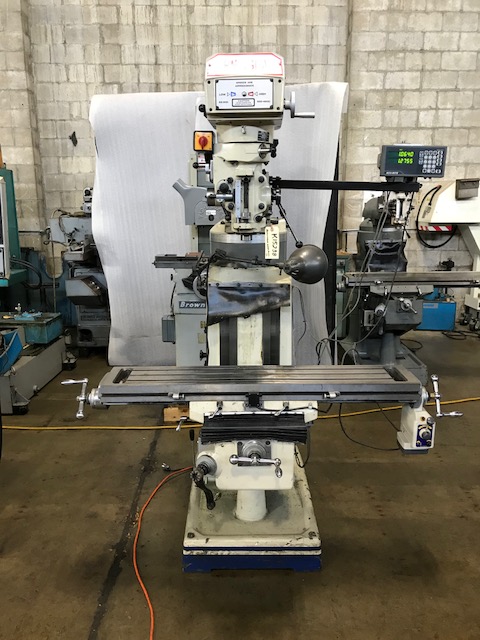

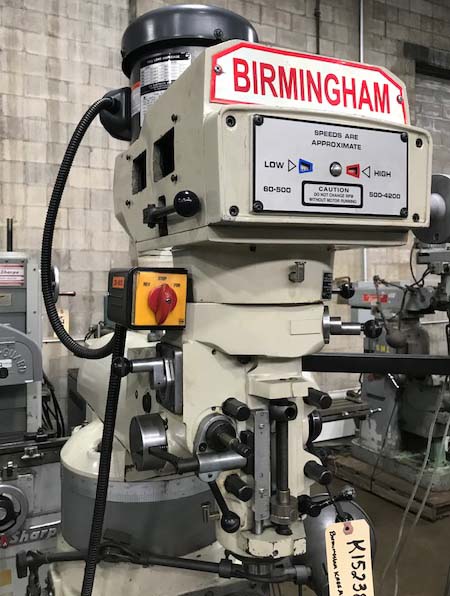

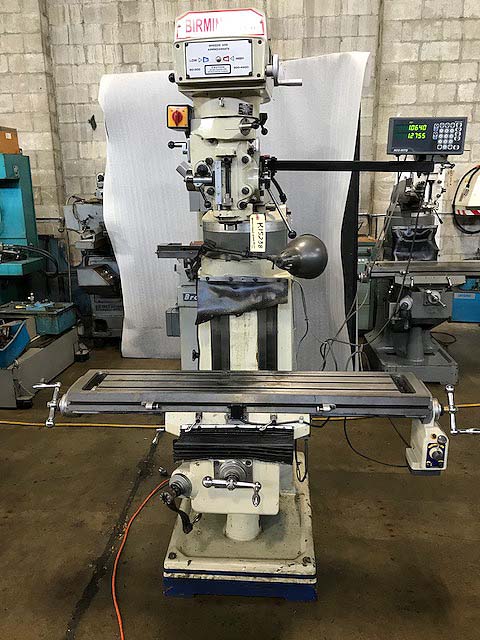

BIRMINGHAM BRIDGEPORT STYLE VERTICAL MILL
                   Model BPV-3949-C, S/N 060346, New 2000
                               Stock# K15238

EQUIPPED WITH:

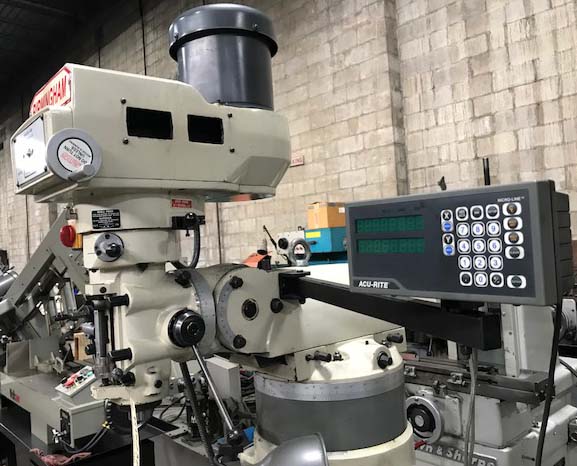

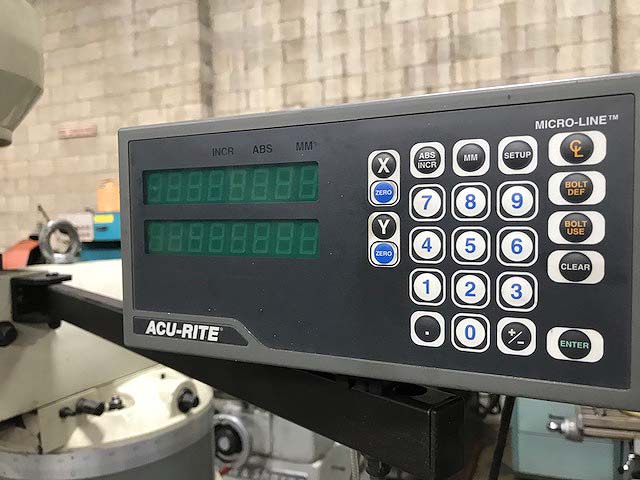

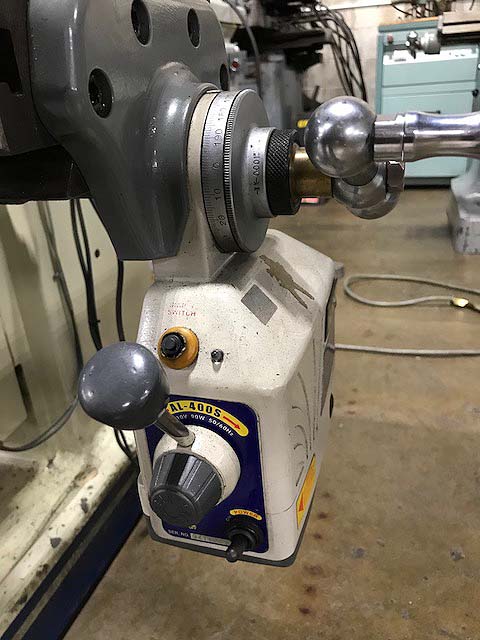

Acurite 2-Axis Digital Readouts, Align Power Table Feed, Power Quill Feed,
2 HP Variable Speed Spindle, Knee Lock, Swivel Type Overarm, One Shot
Lube System, Work Light.

SPECIFICATIONS:
Table Dimensions (Overall, W x L)........................ 9" x 49"
Longitudinal Table Travel Power Feed (X-Axis)............ 33"
Longitudinal Table Travel Hand Feed...................... 35-1/2"
Cross Saddle Travel (Y-Axis)............................. 13-1/4"
Vertical Knee Travel (W-Axis)............................ 16"
Vertical Quill Travel (Z-Axis)........................... 5"
Ram Travel............................................... 12"
Spindle Taper............................................ R-8
Spindle Speeds........................................... 70-4200 RPM
Quill Feeds.............................................. .0015.003.006

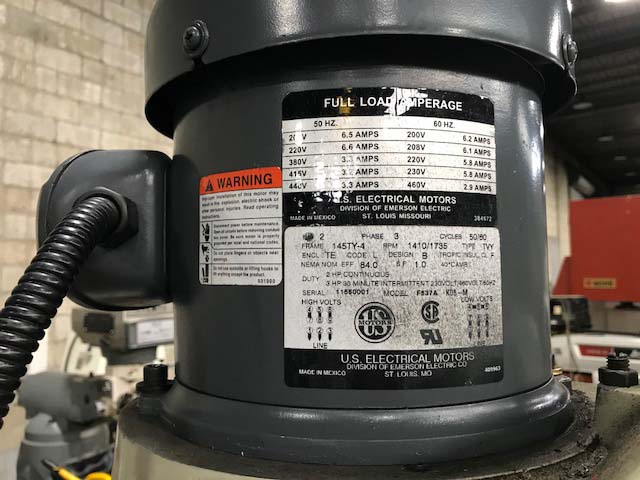

Motor (Spindle).......................................... 2 HP
Electrics................................................ 220/440/3/60
Approximate Machine Dimensions........................... 86" x 69"
Approximate Machine Height............................... 67"
Approximate Machine Weight............................... 2600 lbs.

Condition:  Machine Appears to be in Excellent Condition!
