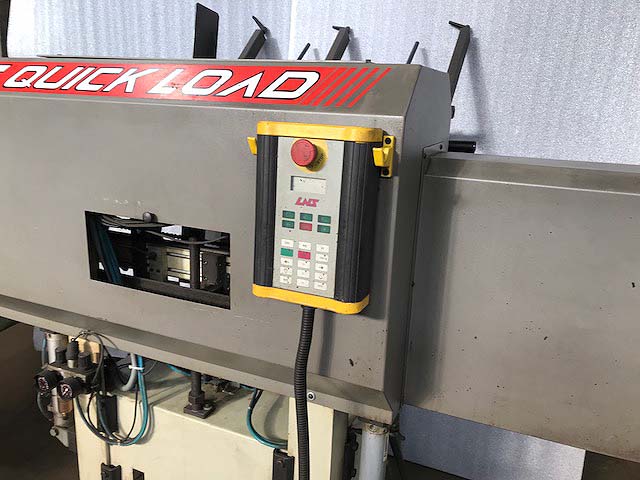

LNS Quick Load Magazine Bar Feeder
                                    Model QL-60, New 1996, S/N 19106-95
                                                      Stock# K15265

MACHINE DESCRIPTION:
LNS Quick Load Barfeeders are Equipped with an Encoder which Allows for
Bar Length Measuring During Initial Setup and Throughout the Production
Cycle. Each Bar is Measured for Length and Recorded for Continuous
Feeding to a Premeasured Distance Beyond the Chuck Face, Even when
Random Length Bars are Used. While the Last Part is Being Machined,
Quick Load is Automatically Loading the Next Bar to be Measured and
Production Continues Without Interruption. When a New Bar is Loaded,
it Travels at a High Speed and Decelerates to a Preselected Position
Beyond the Face of the Chuck Without the Use of the Machine Turret for
Face Off.

ADVANTAGES OF USE:
Optimum Use of Floor Space is Gained by the Compact Design which
Features a Front or Rear Loading Magazine. This Integral Stock Magazine
Holds up to (75) 1/2" Diameter, Precut, Non-chamfered Bar Stock Allowing
Continuous Operation of Extended Production Runs.

SPECIFICATIONS:
Round Bar Diameter Capacity ................................ 1/2" to 3-1/8"
Maximum Feed Length For Bars............................. 60"
Minimum Feed Length for Bars................................ 6"
Height Floor to Feed Guide (Adjustable)................. 35.43" - 49"
Approximate Machine Dimensions.......................... 55" x 75"
Approximate Machine Height.................................. 68"
Approximate Machine Weight................................. 1260 lbs.


Condition:  Machine Appears to be in Excellent Condition!
