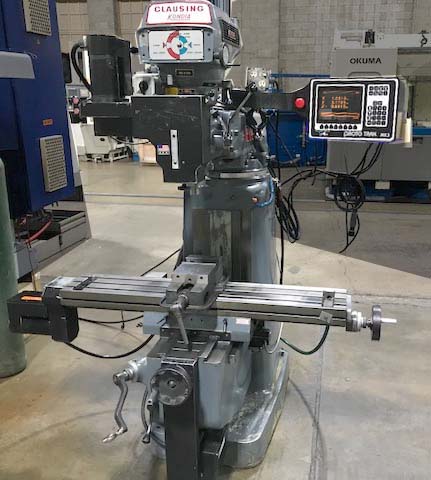

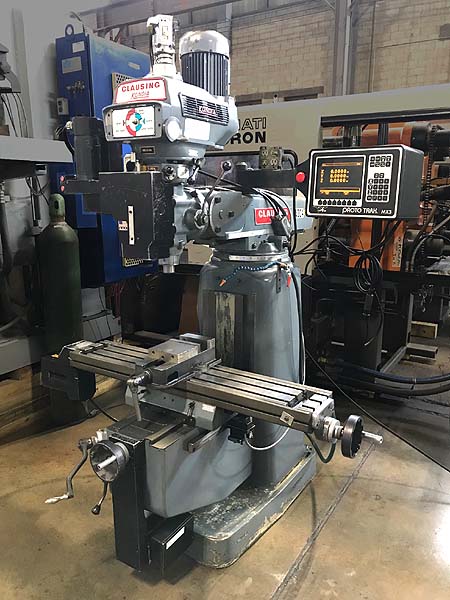

CLAUSING KONDIA CNC BRIDGEPORT STYLE VERTICAL MILL
                                    Model FV-1, New 1996
                                         Stock# K15270

EQUIPPED WITH:

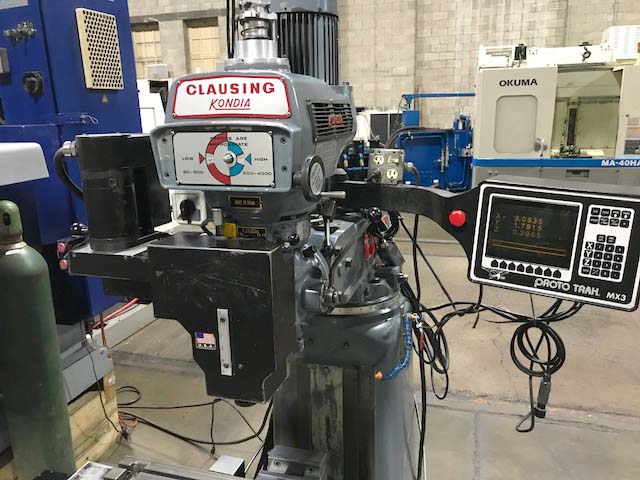

SouthWest Industries (SWI) Proto Trak MX-3 CNC Control, Control Replaced in 2010,
CNC and Teach Modes, 3-Axis CNC Control, X and Y CNC Table Feeds, CNC
Z-Axis Quill, Handwheels on all axis for Manual Operation, 2 HP Variable
Speed Spindle, Knee Lock, Swivel Type Overarm, Power Draw Bar,

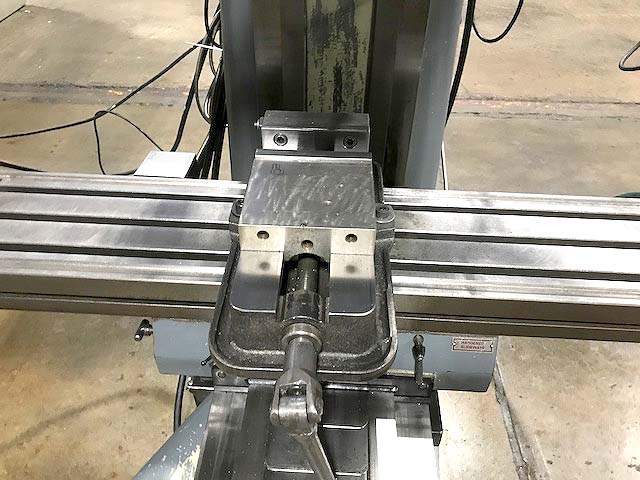

Central Automatic Lube System, Built-in Coolant, 6" Machine Vise, Work Light.

SPECIFICATIONS:
Table Dimensions (Overall, W x L)............................ 9" x 48"
Longitudinal Table Travel Power Feed (X-Axis)........ 33"
Longitudinal Table Travel Hand Feed....................... 35-1/2"
Cross Saddle Travel (Y-Axis)................................... 13-1/4"
Vertical Knee Travel (W-Axis).................................. 16"
Vertical Quill Travel (Z-Axis)..................................... 5"
Ram Travel.............................................................. 12"
Spindle Taper........................................................... R-8
Spindle Speeds....................................................... 70-4000 RPM
Motor (Spindle)........................................................ 2 HP
Electrics................................................................... 220/440/3/60
Approximate Machine Dimensions.......................... 86" x 69"
Approximate Machine Height.................................. 67"
Approximate Machine Weight................................. 2600 lbs.


Condition:  Machine Appears to be in Excellent Condition!
