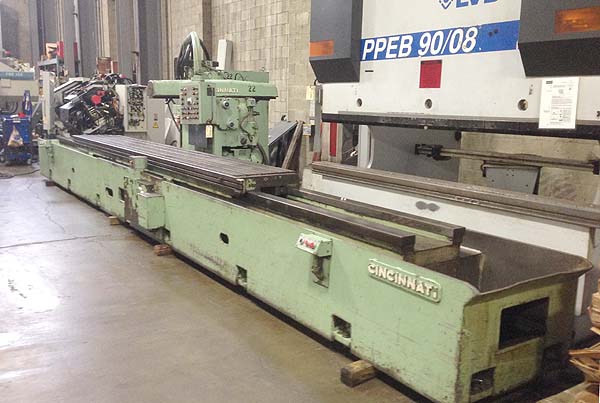

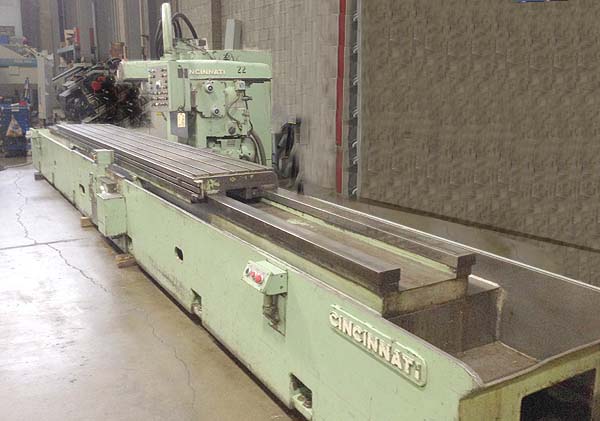

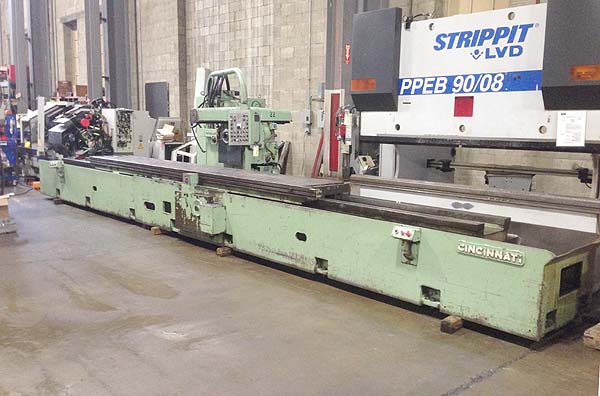

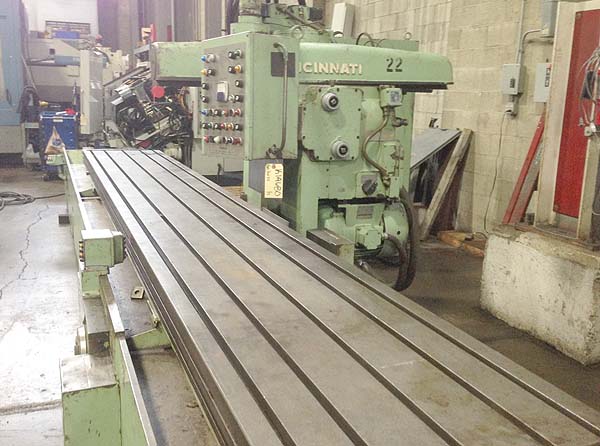

320-2614 CINCINNATI 'HEAVY DUTY' RISE & FALL HORIZONTAL PRODUCTION MILL
              Model 320-2614 HyPowermatic, New 1968, S/N 311473P5U-0001
                                                          Stock # K15284

EQUIPPED WITH:

Auto Table Cycles, Tracer Controlled Rise and Fall to the Spindle
Carrier, Table Power Feed and Rapid Traverse, Automatic Table Cycles,

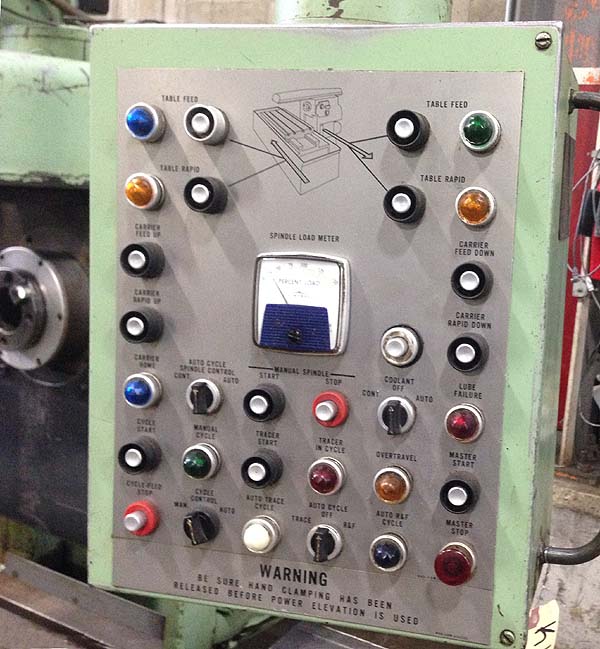

Automatic Spindle Stop, Automatic Spindle Carrier Cycles, Pendent
Control, Heavy Duty 20 HP Geared Spindle, Automatic Backlash Eliminator,
Heavy Duty Dynapoise Overarm with Arbor Support, Hardened Square Gibbed
Ways, Spindle Load Meter, Coolant System.

CATALOGUE SPECIFICATIONS:
Table Size............................................................ 26" x 202"
Table Working Surface........................................ 26" x 192"
Longitudinal Table Travel (X-Axis)...................... 168"
Vertical Travel of Spindle Carrier (Y-Axis)........... 14"
Quill Cross Adjustment (Z-Axis)........................... 6"
Max Vertical Height, Table to Spindle.................. 18-1/4"
Min Vertical Height, Table to Spindle.................... 4-1/4""
Feed Range, Table Traverse................................ 1/4 to 100 IPM
Rapid Traverse..................................................... 200 IPM
Spindle Speeds Range (RPM)............................. 20-2000 RPM
Spindle Horsepower............................................. 20/30 HP
Spindle Taper........................................................ # 50 INT
Approximate Machine Dimensions....................... 310" x 100"
Approximate Machine Height................................ 90"
Approximate Machine Weight............................... 29,000 LBS

CONDITION: Appears to be in Excellent Condition!
