CLAUSING COLCHESTER CNC LATHE
Model Combi K2, New 2001, S/N C70022
Stock# K15287
EQUIPPED WITH:

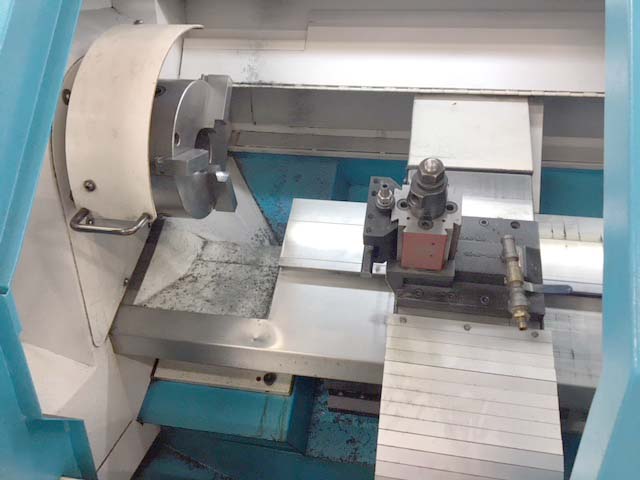

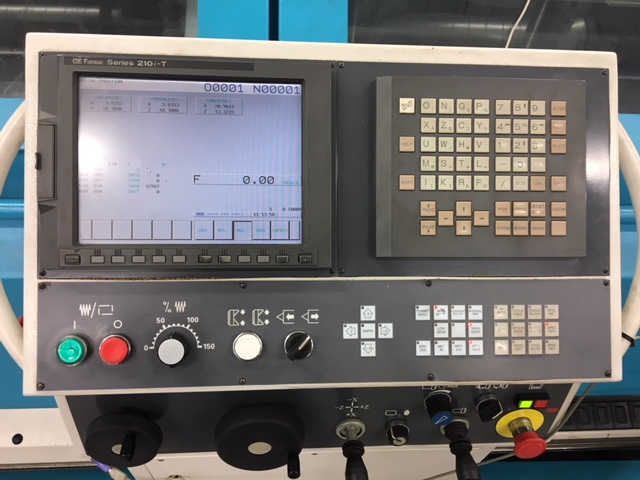

Fanuc 210i-T CNC Control, Teach Functions, Individual MPG Handwheels for
Each Axis for Manual Operation, 4-Position Parat Tool Post, 30 Degree
Slant Bed Design, 3-Jaw Chuck, Fully Enclosed Guarding, Coolant System.
CATALOG SPECIFICATIONS:
Max Swing Over Slant Bed.................................. 15.7"
Max Swing in the Gap.......................................... 23"
Max Swing Over Saddle....................................... 9.64"
Max Work Length................................................. 50"
Cross Travel (X-Axis)........................................... 8.66"
Longitudinal Travel (Z-Axis)................................. 51.03"
Rapid Traverse Rate ........................................... 400 IPM
Number of Turrets................................................ 1
Turret Positions.................................................... 4
Spindle Nose........................................................ D1-6
Spindle Bore......................................................... 2.12"
Spindle Speed Range........................................... 6-2500 RPM
Spindle Drive Motor.............................................. 15 HP
Electrics................................................................ 230/3/60
Approximate Machine Dimensions....................... 78" x 118"
Approximate Machine Height............................... 75"
Approximate Machine Weight.............................. 7,000 LBS
CONDITION: Machine Appears to be in Excellent Condition!
Very Low Hours
