48" x 72" Cincinnati Plain Cylindrical Grinder Model DA

Stock # K15290

ACTUAL PHOTOS

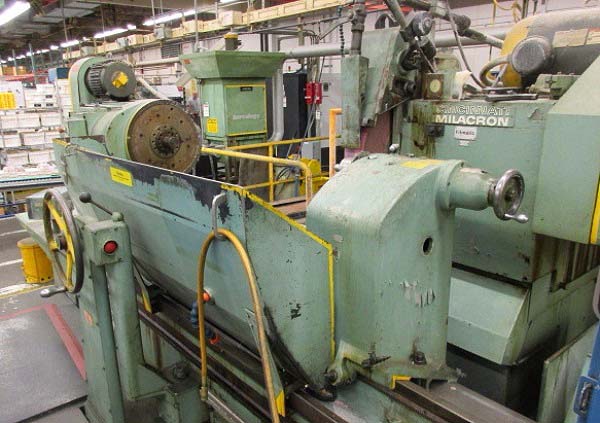

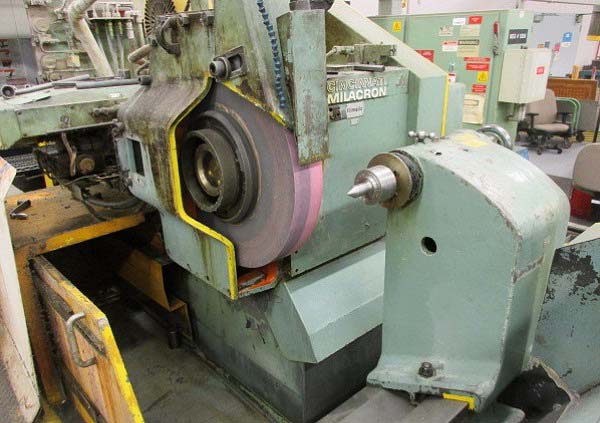

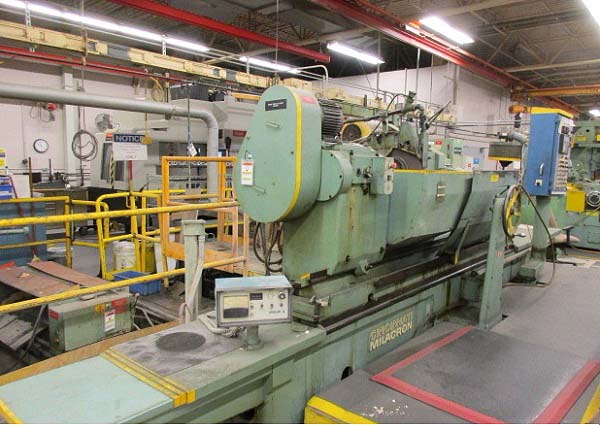

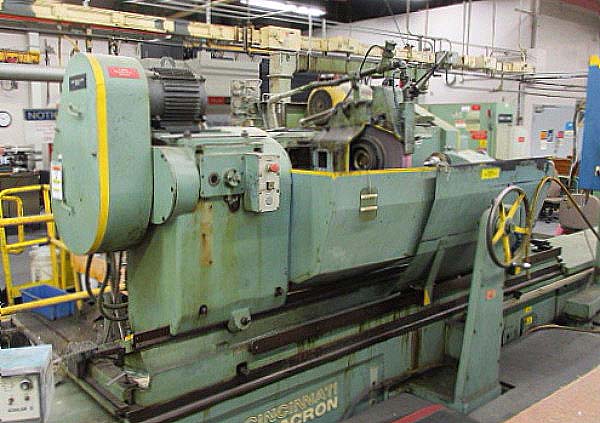

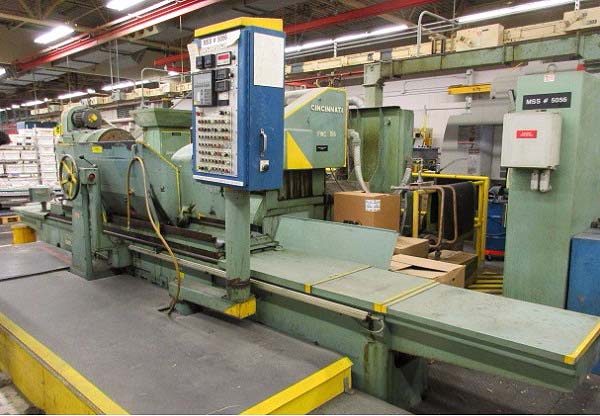

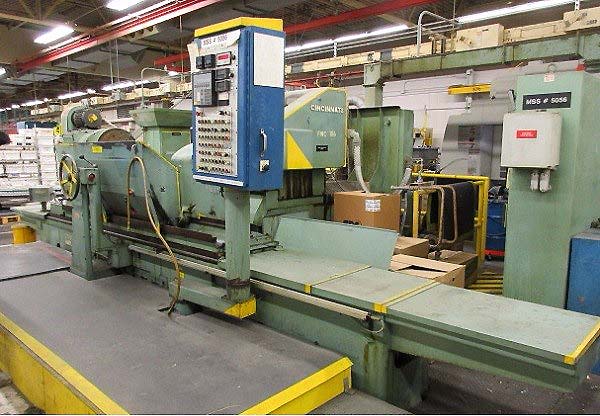

                          48" x 72" CINCINNATI PLAIN CYLINDRICAL GRINDER
                                  Model DA, New 1979/90, S/N 3550SPE79-0002
                                                         Stock# K15290


EQUIPPED WITH:

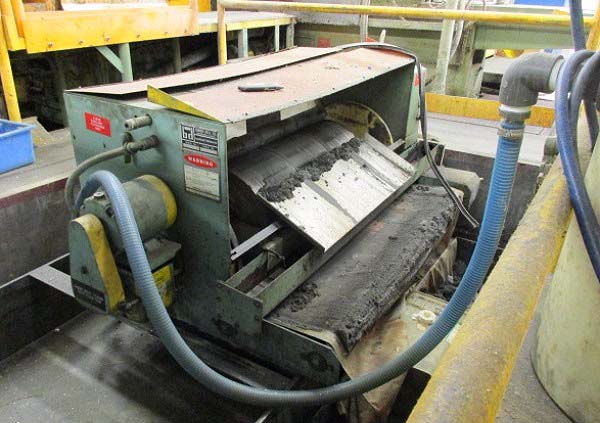

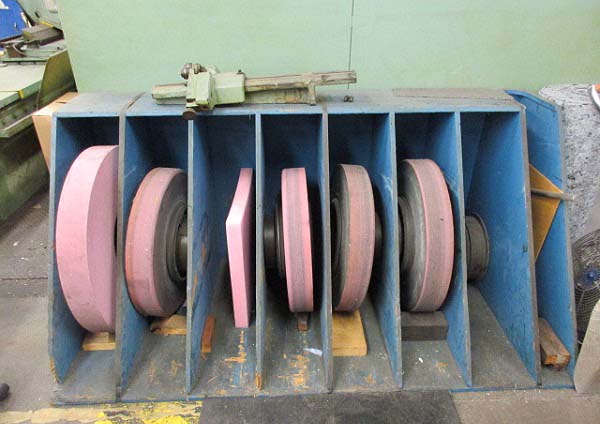

Parker Compumotor RP240 PLC Control, Acralign II Taper Gage, Aercology Mist Collector, Barnes Drill MPE-25 Magnetic Coolant Filter, Extra Wheels, 25 HP Grinding Wheel Spindle.

NOTE: FROM AEROSPACE INDUSTRY. Used to Grind Aircraft Landing Gear.


CATALOG SPECIFICATIONS:
Swing Over Table, Maximum...................................................... 48"
Grinding Diameter, Maximum (with New Wheel)........................ 48"
Grinding Length, Maximum......................................................... 72"
Distance Between Center, Maximum.......................................... 72"
Grinding Wheel, Standard Diameter........................................... 30"
Grinding Wheel, Hole Diameter.................................................. 12"
Grinding Wheel, Width Max......................................................... 6"
Workhead Spindle Speeds.......................................................... 0-200 RPM
Longitudinal Table Feeds, Infinite................................................ 3 to 20 IPM
Wheelhead Motor......................................................................... 25 HP
Approximate Machine Dimensions.............................................. 130" x 259"
Approximate Machine Height....................................................... 82"
Approximate Machine Weight...................................................... 36,000 LBS


CONDITION: From Aerospace. Only 3710 Cycle Hours.
                       Appears to be in Excellent Condition!
